Summary of Contents for PST PST-VD07H-ID
-
Page 2: Table Of Contents
Contents Preface ....................2 1. Parameter ...................3 2. The Instruction ..................3 2.1 Outdoor Station .................3 2.2 Indoor Unit ..................6 2.3 Power Supply ..................9 3. Wiring Diagram ...................9 4. Remote control .................10 5. Warning ......................12... -
Page 3: Preface

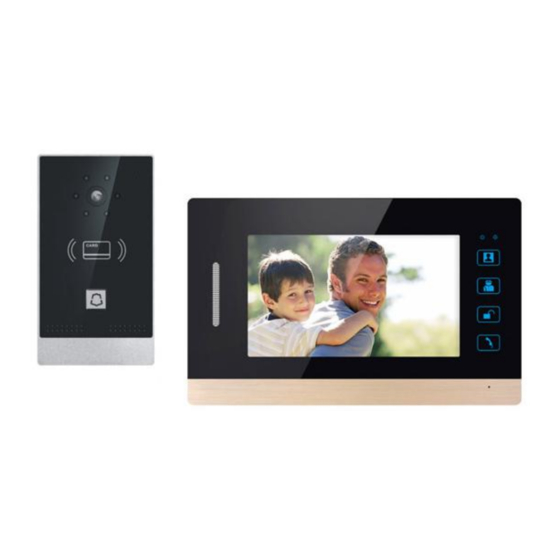

Preface Thank you for using our products. Hope our products and services can bring convenience and happiness to your life. Video Door Phone for villa single family house, single apartment. 1) Connect with CAT 5e ( UTP—Unshielded Twisted Pair ) 2) CAT 5e transmit audio signal, RS487 communication, video signal. -
Page 4: Parameter
1. The Parameter Installation Flush-mount Voltage DC18V±10% (Working) Outdoor Station Current ≤70mA (Working); ≤15mA (Standby) Installation Wall-mount Voltage DC18V±10% (Working) Indoor Unit Current ≤ 300mA (Working); ≤20mA (Standby) Connection: CAT5e / Cat6 Cable ( normal network cable ) Wiring requirements Power line : RVV2 * 0.75 Lock line : RVV2 * 0.75 2. - Page 5 Wire Connection Figure 1 The Backside of Outdoor Station ※ Green & grey wire: lock line ※ RJ45: Connection for Network Cable ( CAT5e ) Noted: (1) Do not shake, collide, smash, punch the device; (2) Do not install the Outdoor Station in the following places: ※...
- Page 6 Figure 2 The Outdoor Station of Installation Installation requirements (1) Match the fix hole in the wall and the fixing box. If the outdoor station is embedded in the wall, in order to prevent the expansion of cement, please make the hole in wall or door is bigger(5mm) than the box. (2) Put the bottom box fixed in the hole of the door or wall.
-
Page 7: Indoor Unit
2.2 Indoor Unit : Monitor key : Unlock Door : Send the information to the Guard Station ) Call Guard Station button : Answer call Operation introduction A. A outdoor station is compatible to 4 indoor units at maximum. When calls for indoor unit, all the indoor unit ring at the same time. - Page 8 Figure 3 The Indoor Station of Installation Adjust the Color & Brightness A. Under normal state, press “Monitor” button and then “Answer ” button to enter into adjustment of page. B. "Monitor”: Home key; Contrast adjustment, Brightness adjustment. C. “Answer” button”: minus; “Unlock Door” button: add. D.
-
Page 9: Power Supply
Failure analysis and troubleshooting Failure Inspection object Troubleshooting Check whether the connection o Can not call & be Connect the power lines correctly f indoor units’ power called to make the light’s on lines is good Not ring after being Check the speaker, music chip Replace music chip called... -
Page 10: Remote Control
4. Remote control 4.1 Entering system Press “ *XXXX# ” CALL reen light is on. (XXXX is the initial code → G → “1234”.) 4.2 Add user card Press “ *11# ” CALL Green light flashes Swipe user cards → →... - Page 11 4.6 Delete card Press “ *22# ” CALL ?????????????? #CALL → → → (??????????????: means the 14 digit numbers on user card.) Press Exit to exit the process. If it is successfully deleted, the buzzer sounds “Bi-Bi-”; if it is not, the buzzer will sounds “Bi-Bi-Bi-”. 4.7 Delete all user cards Press “*23#”...
-
Page 12: Warning
5. Warning Avoid sharp dropping or knocking. ※ The image can be illegible for the direct sunshine on the video camera. ※ Do not install the product in a humid place. It may cause an electric shock or a ※ fire.
