View this manual online at www.lbwhite.com
Inspection
After unpacking your exhaust
fan, carefully inspect for any
damage that may have oc-
curred during transit. Inspect
for loose, missing or damaged
parts. If there is physical dam-
age to any parts of the fan, a
freight claim must be filed with
the carrier. Check to assure
that all bolts, screws and set
screws are securely tightened
and have not become loose
during transit. Retighten as
required. Rotate propeller by
hand to assure it turns freely.
www.lbwhite.com
SEE INSTALLATION
INSTRUCTIONS
INSIDE
WORLD PROVIDER - INNOVATIVE CLIMATE SOLUTIONS
411 Mason Street, Onalaska, WI 54650 • 800-345-7200 • 608-783-5691 • 608-783-6115 (fax) • www.lbwhite.com

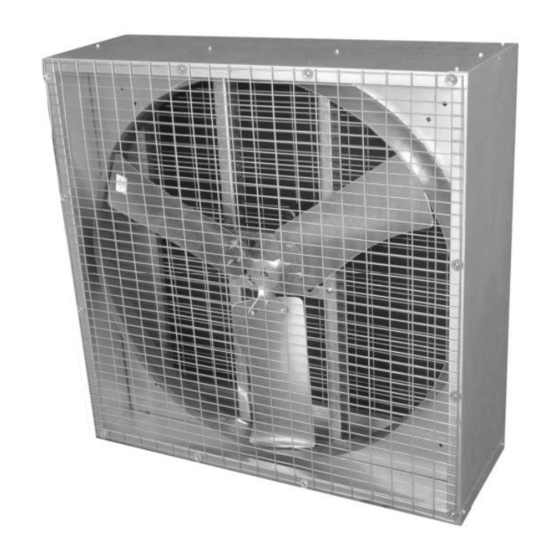

Owner's Manual and Instructions
Galvanized
Box Fans
Direct Drive
Congratulations!
Your new L.B. White galvanized box fan incorporates the benefits
from the most experienced manufacturer of climate control
products using state-of-the-art technology.
We, at L.B. White, thank you for your confidence in our products
and welcome any suggestions or comments you may have...call
us, toll-free, at (800) 345-7200.
24D370,
36D370S-N,
36D370-N,
48D750-N,
36D370T-N,
48D750T-N
Advertisement
Table of Contents
Related Manuals for L.B. White 24D370
Summary of Contents for L.B. White 24D370
- Page 1 Rotate propeller by products using state-of-the-art technology. hand to assure it turns freely. We, at L.B. White, thank you for your confidence in our products and welcome any suggestions or comments you may have...call us, toll-free, at (800) 345-7200.
- Page 2 Galvanized Box Fans TABLE OF CONTENTS Specifications ........................ 4 Performance ........................4 Fan Installation ......................5 Maintenance ........................5 Troubleshooting Guide ....................6 Service Parts Identification Schematic ................7 Replacement Parts and Service ..................8 Warranty ........................8 Owner’s Manual • Galvanized Box Fans...
- Page 3 Galvanized Box Fans WARNING ■ READ AND FOLLOW ALL INSTRUCTIONS, CAUTIONS, DANGERS AND WARNINGS. FAILURE TO DO SO COULD RESULT IN PERSONAL INJURY, DEATH OR PROPERTY DAMAGE. ■ MAKE SURE THE ELECTRICAL POWER SOURCE CONFORMS TO THE REQUIREMENT OF THE FAN(S) AS WELL AS LOCAL CODES. ■...
- Page 4 Galvanized Box Fans Specifications Dimension (in.) Rough-in Opening Model Prop Dia. Height Width Ship Wt Ship. Dims. 24D370 24” 29 1/4 14 1/2 33x18x35 36D370-N 36” 40 1/8 40 3/4 40 3/4 44x18x47 36D370S-N 36” 40 1/8 40 3/4 40 3/4...
- Page 5 Galvanized Box Fans Fan Installation For framing dimensions, refer to rough-in opening height and width shown in the specifications above. Position the fan for desired airflow. Air will discharge on the side of the fan facing the propeller. Assure the fan is fastened securely in the opening to avoid excess “rattling” or vibration using proper fasteners. Fasteners not included.
- Page 6 Galvanized Box Fans Troubleshooting Guide Symptom Possible Cause(s) Corrective Action Fan will not start 1. Tripped circuit breaker 1. Reset circuit breaker 2. Defective motor 2. Repair or replace 3. Incorrectly wired 3. Shut off power, check for proper connec- 4.
- Page 7 Galvanized Box Fans Galvanized Box Fan Models Service Parts Identification Schematic Note: Aluminum discharge shutter not shown. Item Description 24D370 36D370-N 36D370S-N 36D370T-N 48D750-N 48D750-N Intake & Discharge screen 24SCREEN-N 36SCREEN-N 36SCREEN-N 36SCREEN-N 48SCREEN-N 48SCREEN-N Self tapping screw S002 S002...
- Page 8 If, within 12 months from the date of purchase by the end user, any component is found to be defective, L.B. White Company, LLC will at its option, repair or replace the defective part, with a new part, F.O.B., Onalaska, Wisconsin or Franklin, Georgia.
