QQH Z1-9 User Manual

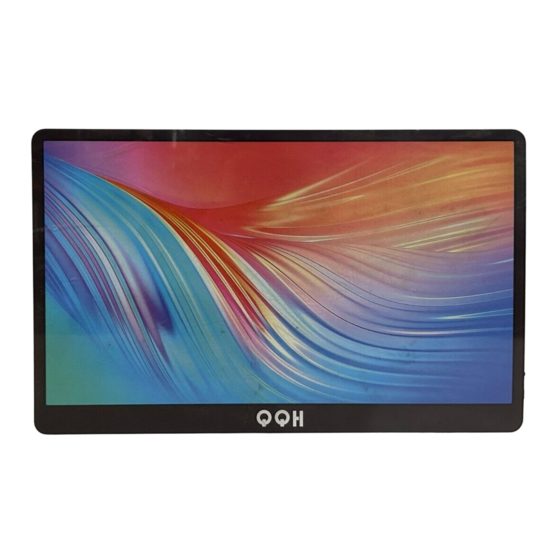

15.6" full hd portable monitor
Hide thumbs

Advertisement

Table of Contents

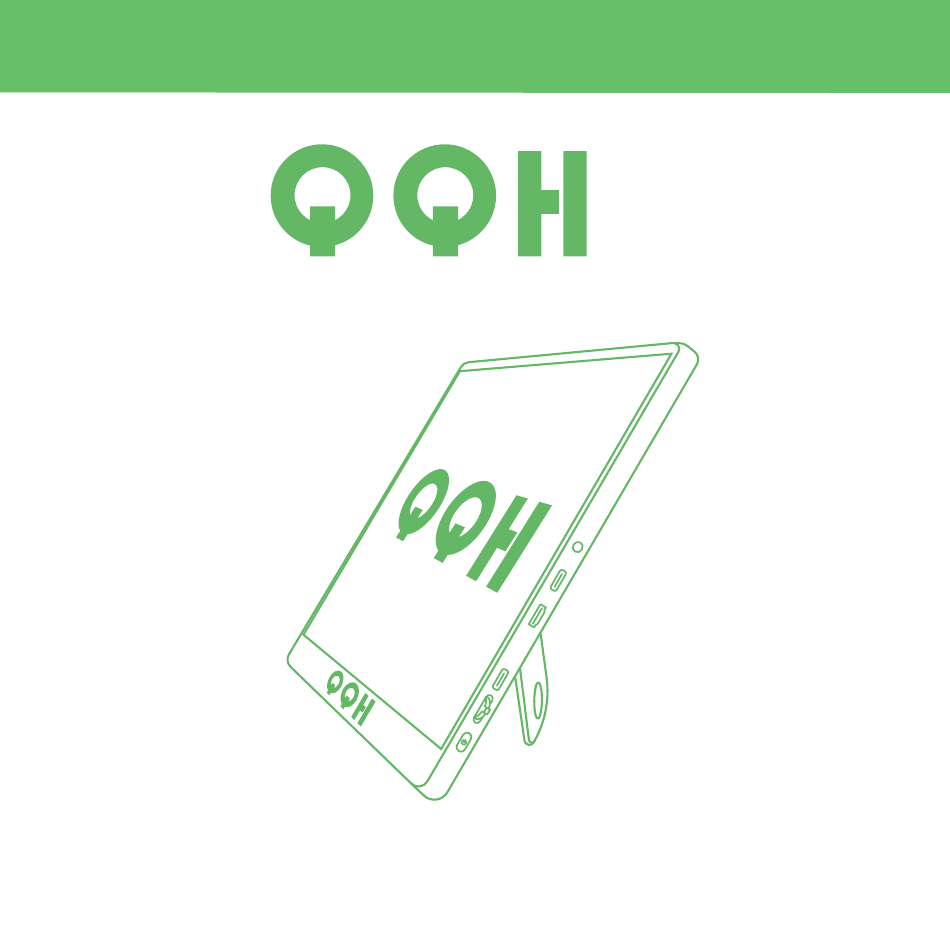

User Manual
Z1-9
15.6 " Full HD Portable Monitor
Note: Any technical problem pls contact support team
[support@qqhmonitor.com]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z1-9 and is the answer not in the manual?

Questions and answers

Shamueal benyamin
February 19, 2025

15.6 screen cracked

0

Subscribe to Our Youtube Channel

Related Manuals for QQH Z1-9

Summary of Contents for QQH Z1-9

  • Page 1 User Manual Z1-9 15.6 " Full HD Portable Monitor Note: Any technical problem pls contact support team [support@qqhmonitor.com]...
  • Page 2 Service Not Satisfied? Need Help? QQH Tech Support support@qqhmonitor.com [12-Month Warranty] [24/7 After-sales Service]...

  • Page 3: Table Of Contents

    Content Package List ----------------------------------------- 1 Monitor Introduction ------------------------------- 2 Foldable Kickstand --------------------------------- 4 Connect Condition ---------------------------------- 5 Connect with Devices ------------------------------ 6 Display Setting ------------------------------------ 11 OSD Function Introduction ---------------------- 13 Specifications ------------------------------------- 18 Supported Devices and Models ------------------ 19 Care &...

  • Page 4: Package List

    Package List 15.6 " Portable Monitor USB-C to Mini HDMI to USB-C to USB-A 5V/2.4 A Power USB-C Cable HDMI Cable Cable (Power Supply) Adapter...

  • Page 5: Monitor Introduction

    Monitor Introduction 3.5mm Audio Outport Headsets, speakers or digital audio equipment extension interface. Type-C Full Function Port • Supply power(5~20V voltage input); • Transmit the audio, video signal. Mini HDMI Port Audio and video signal transmission. (It does not provide power) Type-C Power Supply Port Only supply power(5~20V voltage input);...
  • Page 6 Monitor Introduction Dual Speakers Listen to music, movies, games, and multimedia files. Foldable Kickstand Comes with hidden foldable kickstand.

  • Page 7: Foldable Kickstand

    Foldable Kickstand Foldable hidden kickstand, portable to carry. Use as kickstand to stand the monitor as portrait mode. Use as kickstand to stand the monitor as landscape mode. Note: 1) The Portrait mode needs to be set on Devices Setting. 2) The foldable stand has a little suction, when using it as a stand, please be gentle when moving to prevent the stand from retracting.

  • Page 8: Connect Condition

    Connect Condition Connect with External Power Supply Connect your monitor to the power supply with the [USB-C to USB-A Cable] and the Adapter provided, plug in the [USB-C to USB-C Cable] OR [Mini HDMI to HDMI Cable] for video output. Connect without External Power Supply Only works with full-function USB-C port.

  • Page 9: Connect With Devices

    1. If you want to adjust the brightness and volume above 80%，pls make sure the external power supply of 5V/2.4A or above be connected. 2. Not all laptops with USB-C port can work with QQH Monitor. Pls check if the USB-C port of your laptop is compatible with audio and video signal transmission.
  • Page 10 Not all Phones with USB-C port can work with QQH Monitor. Pls check if the USB-C port of your phone is compatible with audio and video signal transmission.
  • Page 11 Connect with Devices HDMI PC/Laptop Mini HD to HD Computer USB-C to USB-A Mini HD to HD Computer (external power supply) USB-C to USB-A Note: HDMI port does not supply power. The monitor needs an external power supply (5V/2.4A or above) or USB-A to USB-C cable to supply.
  • Page 12 Mini HD to HD (external power supply) USB-C to USB-A Connecting your iOS device with QQH requires a Lightning to HDMI adapter (not included). Before connecting, pls make sure your Lightning to HDMI adapter works. The lightning to HDMI adapter and the monitor both need a...
  • Page 13 Connect with Devices HDMI Other Devices Mini HD to HD USB-C to USB-A Mini HD to HD (external power supply) USB-C to USB-A Note: Please connect the external power supply first then the mini HDMI to HDMI cable to ensure smooth transmission.

  • Page 14: Display Setting

    Display Setting Multiple-Display Setting for Windows Right-click the desktop and select either Screen Resolution (Windows 7/8) or Display Settings (Windows 10/11 ) Screen Rotate Setting: Click the Display Orientation drop-down list, and then select Landscape or Portrait. Duplicate & Extend Mode Setting: Click the Multiple displays drop-down list, and then select Extend/Duplicate these displays.
  • Page 15 Display Setting Multiple-Display Setting for Mac Choose Apple menu > System Preferences, then click Displays. Click the Display Setting Choose the display mode you prefer [Main display/Extended display/Mirror] Note: Click the [Rotation] drop-down list and select the orientation angle as you need.

  • Page 16: Osd Function Introduction

    OSD Function Introduction Fast Control 1. Adjust Brightness: Scroll up the trackwheel (Menu Button) to open the Brightness Menu, Brightness Adjust the Brightness from 0-100. Volume 2. Adjust Volume: Scroll down the trackwheel (Menu Button) to open the Volume Menu, Adjust the Volume from 0-100.
  • Page 17 OSD Function Introduction OSD Setting - Brightness 1. Brightness: Allows you to adjust the brightness(Range: 0~100). 2. Contrast: Adjust the contrast between the objects and the background(Range: 0~100). 3. Black Level: Adjust the level of the brightness at the darkest part of a visual image(Range: 0~100).
  • Page 18 OSD Function Introduction OSD Setting - Image 1. ECO: Contains 6 applicable scene modes. (Standard/RTS/FPS/Text/Movie/Game Modes) 2. DCR: Dynamic Contrast Ratio. Select on/off to enable/disable dynamic contrast ratio function. 3. ASPECT: Adjust the aspect ratio to 4:3 / 16:9. Note: Some parameters like Brightness and Contrast cannot be adjusted if ECO is set to [RTS/FPS/Text/Movie/Game] mode or DCR is turned on.
  • Page 19 OSD Function Introduction OSD Setting - Color Temp. Color Temp. : Contains 2 preset color modes - Cool / Warm and User Mode(Freely adjust the below 3 RGB colors - Red/Green/Blue based on favor.) OSD Setting - OSD Setting 1. Language: Modify OSD language to English/Francais /Deutsch/Chinese/Italiano, etc.
  • Page 20 OSD Function Introduction OSD Setting - RESET 1. Reset: Return all the settings to the default factory settings. 2. Mute: Mute the display. 3. Volume: Adjust the display volume. OSD Setting - MISC. 1. Signal Source: Switch signal sources to HDMI or Type-C.

  • Page 21: Specifications

    Specifications Product: QQH-Z1-9 Portable Monitor Visible Area: 344.16*194.59mm 363.6mm Panel Type: IPS LCD Contrast Ratio: 1000: 1 Resolution: 1920*1080 15.6 inch Color Temperature: 6800K Brightness: 280cd/m² Aspect Ratio: 16:9 Display Color: 16.7M Speaker: Built-in Speaker (1W*2) Visual Angle: H 85°/85°Min V 85°/85°Min Product Dimensions: 363.6*226.4*14mm...

  • Page 22: Supported Devices And Models

    Supported Devices and Models Laptop / Tablets Brand Model MacBook 12inch, MacBook Pro2016/2017/2018/2019/2020/2021/2022, Apple MacBook Air2018/2019/2020/2021/2022, MacMini 2020（Intel/M1); iPad Pro 2018, iPad Pro(M1 Chip), iPad Air(4th generation) Google Google Pixelbook Go, Chromebook Pixels Legion Y7000/Y7000P/Y9000K, YOGA6 Pro, ThinkPad x1 Carbon/Yoga, Lenovo LenovoMIIX 720-12IKB, Miix 720, XiaoXin Pro13, XiaoXinPro16 DELL...
  • Page 23 1. For iPhone, needs a Lightning to HDMI adapter to connect (refer to P9). 2. For other compatible problems or any problems you meet when connecting QQH Monitor, please contact the QQH support team with your device's detailed model ID for support@qqhmonitor.com...

  • Page 24: Care & Cleaning

    Care & Cleaning Care Tips: 1. Use a smart case to protect the screen when you go out with the monitor. 2. Try to avoid the monitor screen colliding with other hard objects when putting it in the backpack. 3. Gently plug or unplug the cable. 4.

  • Page 25: Notices

    Notices Before setting up the QQH Monitor, pls carefully read all the instructions on the manual. To prevent fire or shock hazards, never expose the monitor to rain or moisture. Never attempt to open the monitor cabinet. Before using, make sure all the cables are correctly connected and power cables are not damaged.

  • Page 26: Troubleshooting

    2) Check if the monitor and your devices are in the “ON” mode. 3) Make sure the cable is properly connected between the QQH monitor and the computer. And please ensure that the monitor has been charged by the connected device or the included 5V/2.4A power adapter.
  • Page 27 1) Long Press the power button for 3s to turn off the monitor and restart it again. 2) Make sure all the cables needed are properly connected between the QQH monitor and the computer. Brightness/Contrast/Volume shows grey and can’t be adjusted. 1) Please make sure the HDR mode is turned off and Scene (ECO) Mode or CDR Mode is not adjusted.

  • Page 28: Contact Us

    Contact us Any technical problem you meet Contact us! : support@qqhmonitor.com Provides [12-Month Warranty] [1-1 Professional Service] [24/7 After-sales Consultation]...
