Summary of Contents for QQH Z12

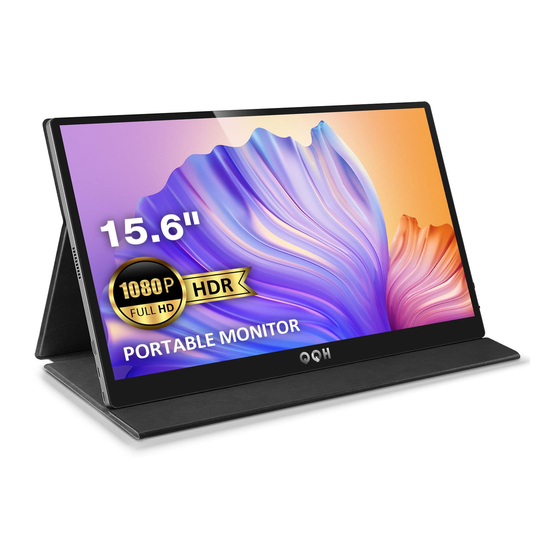

- Page 1 User Manual 15.6 " Full HD Portable Monitor Note: Any technical problem pls contact support team [support@qqhmonitor.com]...
- Page 2 Service Not Satisfied? Need Help? QQH Tech Support support@qqhmonitor.com [12-Month Warranty] [24/7 After-sales Service]...
-
Page 3: Table Of Contents
Content Package List ---------------------------------------- 1 Monitor Introduction ------------------------------ 2 Smart Cover ---------------------------------------- 4 Smart Stand ---------------------------------------- 5 Connect Condition --------------------------------- 6 Connect with Devices ------------------------------ 7 Display Setting ------------------------------------ 12 OSD Function Introduction -----------------------14 Specifications --------------------------------------19 Supported Devices and Models ----------------- 20 Care &... -
Page 4: Package List
Package List 15.6 " Portable Monitor Magnetic Smart Cover USB-C to Mini HDMI to USB-C to USB-A 5V/2.4 A Power USB-C Cable HDMI Cable Cable (Power Supply) Adapter... -
Page 5: Monitor Introduction
Monitor Introduction Dual Speakers Listen to music, movies, games, and multimedia files. Power Button/Back Button Long press for 3s to turn the screen on/off. Short press to back to the previous page. Trackwheel • Press the trackwheel to turn to the OSD menu. Scroll the trackwheel to control the cursor on the menu, and press to confirm;... - Page 6 Monitor Introduction Type-C Full Function Port • Supply power(5~20V voltage input); • Transmit the audio, video signal. Type-C Full Function Port • Supply power(5~20V voltage input); • Transmit the audio, video signal. Mini HDMI Port Audio and video signal transmission. (It does not provide power)
-
Page 7: Smart Cover
Smart Cover Place the screen on the backside of the smart cover. Cover the screen side of the smart cover on the screen for protection. -
Page 8: Smart Stand
Smart Stand Use the smart cover to make the monitor stands at a proper viewing angle. The backside of the smart cover is Magnetic, it can stabilize and support the monitor as a stand. There are two grooves in the base to give you two choices of comfortable viewing Method 2... -
Page 9: Connect Condition
Connect Condition Connect with External Power Supply Connect your monitor to the power supply with the [usb-c to usb-a cable] and the Adapter provided, plug in the [usb-c to usb-c cable] OR [mini HDMI to HDMI cable] for video output. Connect without External Power Supply Only works with full-function USB-C port. -
Page 10: Connect With Devices
1. If you want to adjust the brightness and volume above 80%，pls make sure the external power supply of 5V/2.4A or above be connected. 2. Not all laptops with USB-C port can work with QQH Monitor. Pls check if the USB-C port of your laptop is compatible with audio and video signal transmission. - Page 11 Not all Phones with USB-C port can work with QQH Monitor. Pls check if the USB-C port of your phone is compatible with audio and video signal transmission.
- Page 12 Connect with Devices HDMI PC/Laptop USB-A to USB-C Computer HD to Mini HD （external USB-A to USB-C power supply) Computer HD to Mini HD Note: HDMI port does not supply power. The monitor needs an external power supply (5V/2.4A or above) or USB-A to USB-C cable to supply.
- Page 13 HD to Mini HD （external power supply) USB-A to USB-C Connecting your iOS device with QQH requires a Lightning to HDMI adapter (not included). Before connecting, pls make sure your Lightning to HDMI adapter works. The lightning to HDMI adapter and the monitor both need a...
- Page 14 Connect with Devices HDMI Other Devices USB-A to USB-C HD to Mini HD USB-A to USB-C （external power supply) HD to Mini HD Note: Please connect the external power supply first then the mini HDMI to HDMI cable to ensure smooth transmission.
-
Page 15: Display Setting
Display Setting Multiple-Display Setting for Windows Right-click the desktop and select either Screen Resolution (Windows 7/8) or Display Settings (Windows 10/11 ) Screen Rotate Setting: Click the Display Orientation drop-down list, and then select Landscape or Portrait. Duplicate & Extend Mode Setting: Click the Multiple displays drop-down list, and then select Extend/Duplicate these displays. - Page 16 Display Setting Multiple-Display Setting for Mac Choose Apple menu > System Preferences, then click Displays. Click the Display Setting Choose the display mode you prefer [Main display/Extended display/Mirror] Note: Click the [Rotation] drop-down list and select the orientation angle as you need.
-
Page 17: Osd Function Introduction
OSD Function Introduction Fast Control 1. Adjust Brightness: Scroll up the trackwheel (Menu Button) to open the Brightness Menu, Brightness Adjust the Brightness from 0-100. 2. Adjust Volume: Scroll down the trackwheel Volume (Menu Button) to open the Volume Menu, Adjust the Volume from 0-100. - Page 18 OSD Function Introduction OSD Setting - Brightness 1. Brightness: Allows you to adjust the brightness(Range: 0~100). 2. Contrast: Adjust the contrast between the objects and the background(Range: 0~100). 3. Black Level: Adjust the level of the brightness at the darkest part of a visual image(Range: 0~100).
- Page 19 OSD Function Introduction OSD Setting - Image 1. ECO: Contains 6 applicable scene modes. (Standard/RTS/FPS/Text/Movie/Game Modes) 2. DCR: Dynamic Contrast Ratio. Select on/off to enable/disable dynamic contrast ratio function. 3. ASPECT: Adjust the aspect ratio to 4:3 / 16:9. Note: Some parameters like Brightness and Contrast cannot be adjusted if ECO is set to [RTS/FPS/Text/Movie/Game] mode or DCR is turned on.
- Page 20 OSD Function Introduction OSD Setting - Color Temp. Color Temp. : Contains 2 preset color modes - Cool / Warm and User Mode(Freely adjust the below 3 RGB colors - Red/Green/Blue based on favor.) OSD Setting - OSD Setting 1. Language: Modify OSD language to English/Francais /Deutsch/Chinese/Italiano, etc.
- Page 21 OSD Function Introduction OSD Setting - RESET 1. Reset: Return all the settings to the default factory settings. 2. Mute: Mute the display. 3. Volume: Adjust the display volume. OSD Setting - MISC. 1. Signal Source: Switch signal sources to HDMI or Type-C.
-
Page 22: Specifications
Specifications Product: QQH-Z12 Portable Monitor Visible Area: 344.16*194.59mm 368mm Panel Type: IPS LCD Contrast Ratio: 1000: 1 Resolution: 1920*1080 15.6 inch Color Temperature: 6800K Brightness: 280cd/m² Aspect Ratio: 16:9 Display Color: 16.7M Speaker: Built-in Speaker (1W*2) Visual Angle: H 85°/85°Min V 85°/85°Min Product Dimensions: 368*225*9.3mm... -
Page 23: Supported Devices And Models
Supported Devices and Models Laptop / Tablets Brand Model MacBook 12inch, MacBook Pro2016/2017/2018/2019/2020/2021/2022, Apple MacBook Air2018/2019/2020/2021/2022, MacMini 2020（Intel/M1); iPad Pro 2018, iPad Pro(M1 Chip), iPad Air(4th generation) Google Google Pixelbook Go, Chromebook Pixels Legion Y7000/Y7000P/Y9000K, YOGA6 Pro, ThinkPad x1 Carbon/Yoga, Lenovo LenovoMIIX 720-12IKB, Miix 720, XiaoXin Pro13, XiaoXinPro16 DELL... - Page 24 1. For iPhone, needs a Lightning to HDMI adapter to connect (refer to P9). 2. For other compatible problems or any problems you meet when connecting QQH Monitor, please contact the QQH support team with your device's detailed model ID for support@qqhmonitor.com...
-
Page 25: Care & Cleaning
Care & Cleaning Care Tips: 1. Use a smart case to protect the screen when you go out with the monitor. 2. Try to avoid the monitor screen colliding with other hard objects when putting it in the backpack. 3. Gently plug or unplug the cable. 4. -
Page 26: Notices
Notices Before setting up the QQH Monitor, pls carefully read all the instructions on the manual. To prevent fire or shock hazards, never expose the monitor to rain or moisture. Never attempt to open the monitor cabinet. Before using, make sure all the cables are correctly connected and power cables are not damaged. -
Page 27: Troubleshooting
2) Check if the monitor and your devices are in the “ON” mode. 3) Make sure the cable is properly connected between the QQH monitor and the computer. And Please make sure that the monitor has been charged by the connected device or by the included 5V/2.4A power adapter. - Page 28 1) Long Press the power button for 3s to turn off the monitor and restart it again. 2) Make sure all the cables needed are properly connected between the QQH monitor and the computer. Brightness/Contrast/Volume shows grey and can’t be adjusted. 1) Please make sure the HDR mode is turned off and Scene (ECO) Mode or CDR Mode is not adjusted.
-
Page 29: Contact Us
Contact us Any technical problem you meet Contact us! : support@qqhmonitor.com Provides [12-Month Warranty] [1-1 Professional Service] [24/7 After-sales Consultation]...
