ZVD-GW1-DEN
DENNARD DOME INTERFACE
INSTALLERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZoneVu ZVD-GW1-DEN and is the answer not in the manual?

Questions and answers

Related Manuals for ZoneVu ZoneVu ZVD-GW1-DEN

Summary of Contents for ZoneVu ZoneVu ZVD-GW1-DEN

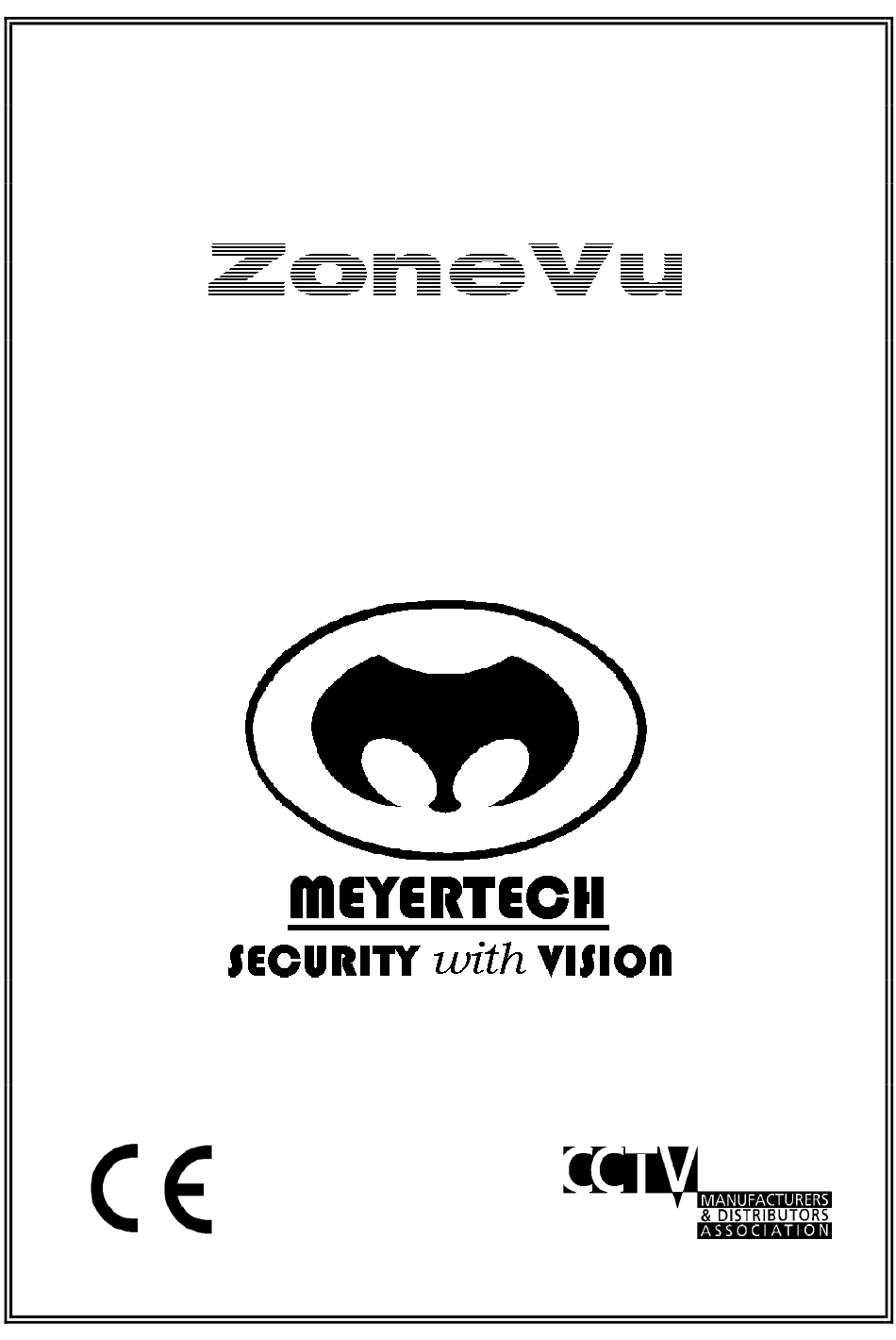

  • Page 1 ZVD-GW1-DEN DENNARD DOME INTERFACE INSTALLERS MANUAL...

  • Page 2: Table Of Contents

    MEYERTECH LIMITED ISSUE 01 CONTENTS PRODUCT WELCOME PRODUCT SUPPORT FEATURES INSTALLATION CONNECTING THE TELEMETRY DISTRIBUTION CONFIGURATION OPERATION PRESETS TOURS MENU OPERATION SLOW SPEED MODE GLOBAL FUNCTIONS SPECIFICATIONS TROUBLE SHOOTING GUIDE DECLARATION OF CONFORMITY 10. PRODUCT WARRANTY 11. DOCUMENT HISTORY Whilst every effort has been made to confirm the information in this document is correct, MEYERTECH LIMITED cannot accept any liability for any errors, omissions and or incorrect information contained within this document.

  • Page 3: Product Welcome

    Party Domes, the ZVM-328 provides a complete and powerful retail solution. This Manual should be used in conjunction with the standard ZoneVu Matrix and Keyboard manuals. MEYERTECH are dedicated to customer service and support. If you have any questions or problems, our staff will be pleased to assist you on the technical help line listed on page 15.

  • Page 4: Installation

    ISSUE 01 INSTALLATION To obtain the optimum performance from your ZoneVu system, please take time to read this manual before commencing installation. If you have any questions or problems our staff will be pleased to assist you on the technical help line listed on page 15.

  • Page 5: Configuration

    ISSUE 01 2 Wire RS-485 Telemetry Channel 2 external termination unterminated ZVD-GW1- fitted Interface Channel 1 Channel 2 ZVD-GW1- interface Channel 1 2 Wire RS-422 Telemetry external termination unterminated fitted Comms I/O Comms I/O ZVM-328 ZVM-328 Matrix (master) Matrix (slave) CONFIGURATION Please refer to the ZVM-328 matrix manual for details on how to configure the system.

  • Page 6: Operation

    Home (Preset 0) cannot be stored, when recalled the dome ‘Resumes’ its last function 6.2 TOURS Tours 1-4 are available, and are programmed through the keyboard as on a standard ZoneVu system. Up to 16 positions can be programmed (unused positions will be left blank) Dwell time is entered in the range 1-10.

  • Page 7: Specifications

    ISSUE 01 SPECIFICATIONS POWER INPUT 12VDC Power Supply (included) from 230VAC TELEMETRY INPUT 9 pin D type connector (Female) RS-422 (2-wire) terminated Pin 1 Pin 2 Pin 5 Ground TELEMETRY OUTPUT 9 pin D type connector (Female) RS-485 (2-wire) terminated Pin 3 Rx-/Tx- Pin 4...

  • Page 8: Trouble Shooting Guide

    MEYERTECH LIMITED ISSUE 01 TROUBLE SHOOTING GUIDE This Trouble Shooting Guide should be used in the first instance of encountering any problems with your Dome control system. If problems persist, contact MEYERTECH on the Technical Help line numbers given on page 15. Symptom Solution Dome moves without...

  • Page 9: Declaration Of Conformity

    ISSUE 01 DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY ACCORDING TO ARTICLE 10 OF COUNCIL DIRECTIVE 89/336/EEC MEYERTECH Manufacture’s Name: Manufacture’s Address: MEYERTECH Limited Office Block One Southlink Business Park Oldham OL4 1DE declares, that the product(s): Product Name : ZVD-GW1-DEN Dome control interface Model(s) :...

  • Page 10: Product Warranty

    MEYERTECH LIMITED ISSUE 01 PRODUCT WARRANTY MEYERTECH LIMITED warrants that at the time of shipment the products manufactured by Meyertech will be free from defects in material and workmanship. Should any defects appear within twelve months from date of shipment, Meyertech Limited shall at it’s sole discretion repair or replace the defective material.

  • Page 11: Document History

    ISSUE 01 DOCUMENT HISTORY ZoneVu Interface Installation Manual: MAN-GW1-DEN ISSUE DATE CHANGE RECORD 03 August 1999 First Issue MAN-GW1-DEN Page 11http://www.meyertech.co.uk...
