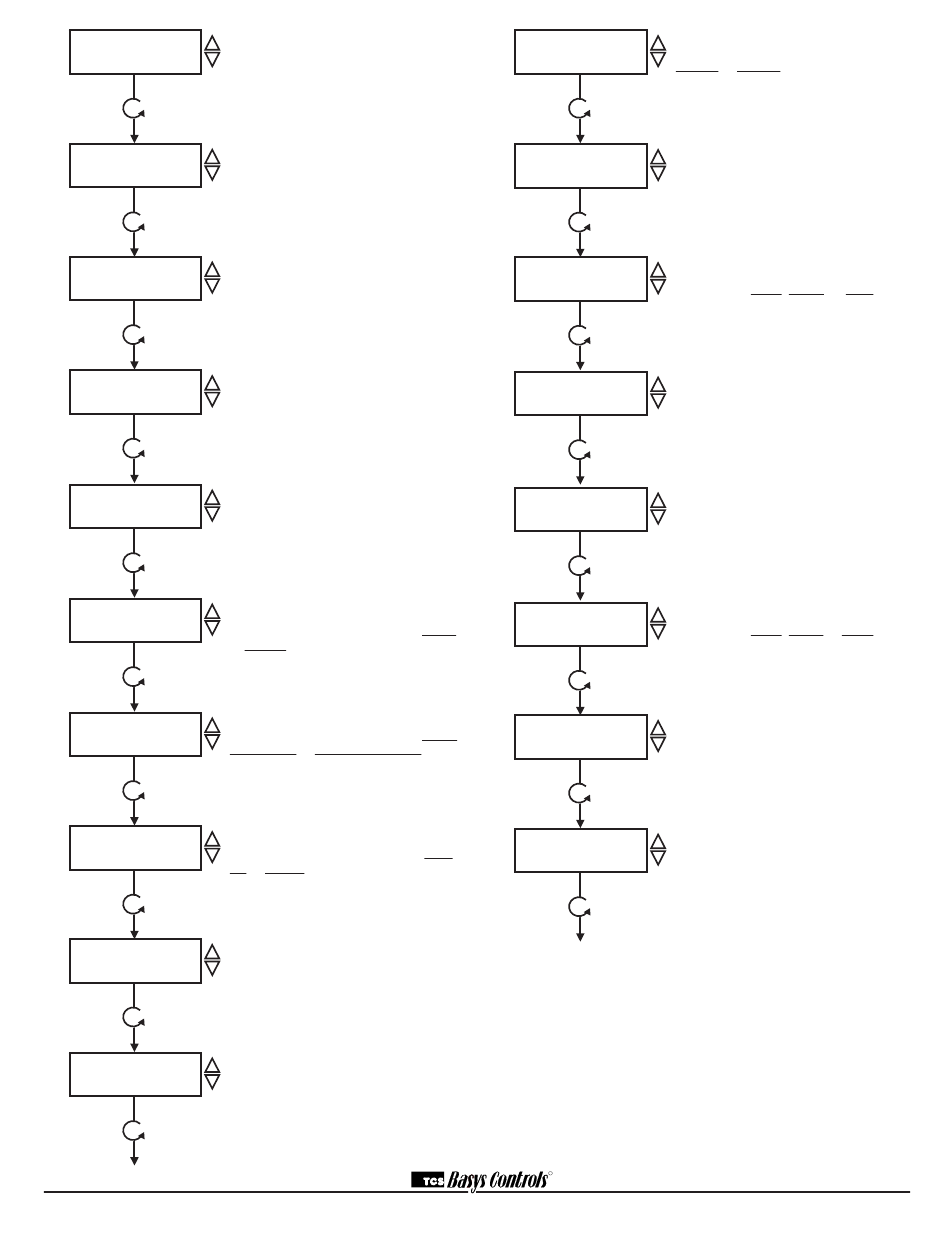

29.
COOL MINIMUM POSITION:
5.0%
30.
COOL MAXIMUM POSITION:
80.0%
31.
HEAT MINIMUM POSITION:
5.0%
32.
HEAT MAXIMUM POSITION:
80.0%
33.
AO1 MOTOR
TIME: 1.5 MIN
34.
AO2
ACTION: DIRECT
35.
AO2
ULATING
CHOICE: MOD
36.
AO2 MODE
IS: HEAT
37.
AO2 SETPOINT
OFFSET 1.0F
38.
AO2 PROP
BAND: 10.0%
2800 LAURA LANE • MIDDLETON, WI 53562 • (800) 288-9383 • FAX (608) 836-9044 • www.tcsbasys.com
Pressure Dependant Screen. Enter in %
the min cooling damper position.
Pressure Dependant Screen. Enter in %
the max cooling damper position.
Pressure Dependant Screen. Enter in %
the min heating damper position.
Pressure Dependant Screen. Enter in %
the max heating damper position.
Enter floating motor time in min.
Anolog Output 2 Action Screen.
Choose whether the output will be direct
or reverse acting.
Anolog Output 2 Choice Screen.
Choose whether the output will be modu-
lating (AO2) or floating (NO7/NO8).
Anolog Output 2 Mode Screen. Choose
whether the output will be used for heat-
ing or cooling.
Anolog Output 2 Setpoint Screen.
Enter the number of degrees you wish to
offset the output from setpoint.
Anolog Output 2 Proportional Band
Screen. Enter in % of input span (40 to
90) the number of degrees away from
setpoint + deadband the offset that the
device will be fully open.
39.
AO2 OUTPUT
RANGE: 4-20mA
40.
AO2 MOTOR
TIME: 1.5 MIN
41.
STAGE 1 MODE
AS: HEAT
42.
STAGE 1
OFFSET 2.0F
43.
STAGE 1
DIFF: 1.0F
44.
STAGE 2 MODE
AS: HEAT
45.
STAGE 2
OFFSET: 3.0F
46.
STAGE 2
DIFF: 1.0F
R
5
Anolog Output 2 Output Range Screen.
Choose wether the output range will be
0-20mA or 4-20mA.
Enter floating motor time in min.
Stage 1 Mode Screen. Select wether the
relay control: HEAT, COOL, or FAN.
Stage 1 Offset Screen. Enter an offset
valve for Stage 1.
Stage 1 Differential Screen. Enter a dif-
ferential value for Stage 1.
Stage 2 Mode Screen. Select wether the
relay control: HEAT, COOL or TCLK.
Stage 2 Offset Screen. Enter an offset
valve for Stage 2.
Stage 2 Differential Screen. Enter a dif-
ferential value for Stage 2.
