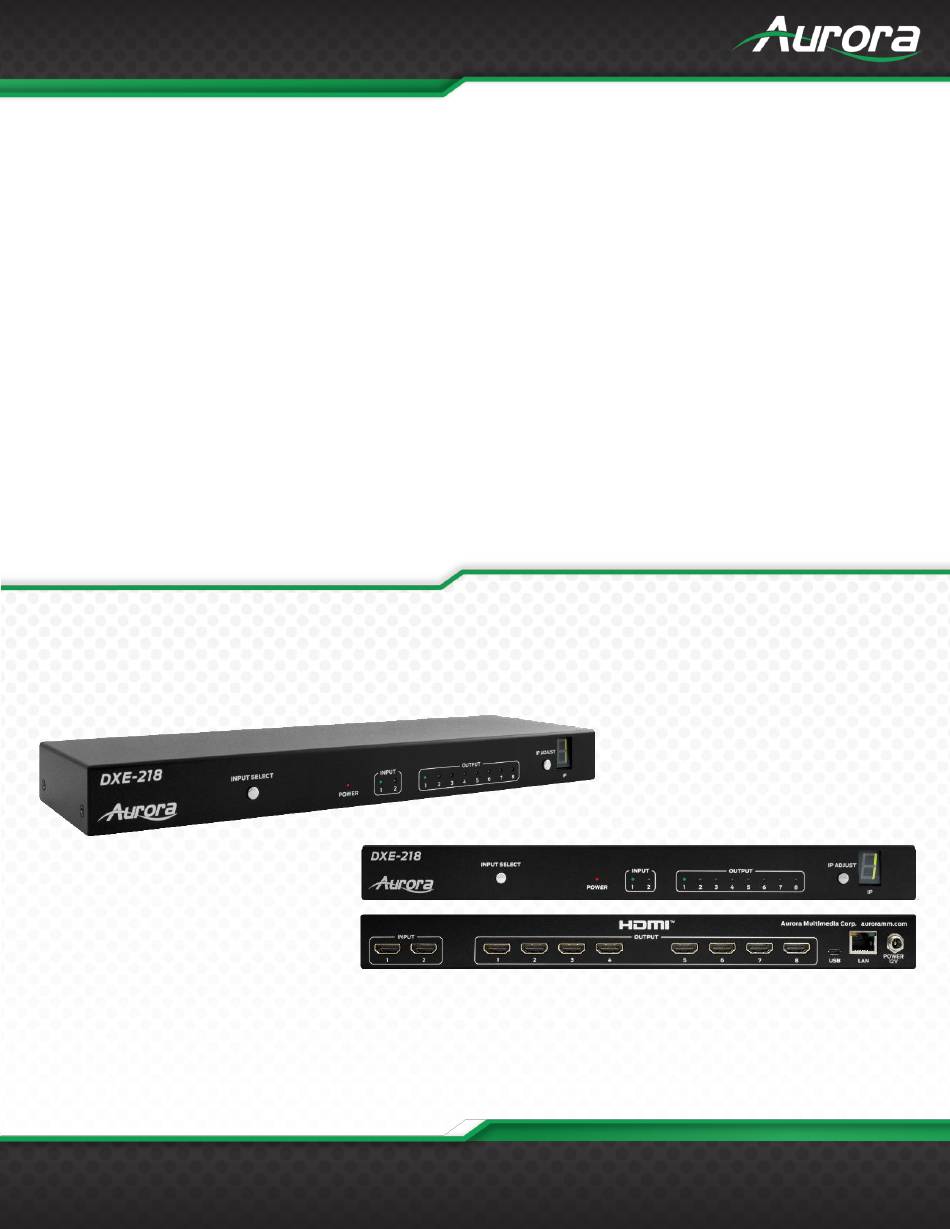

- Page 1 USERS GUIDE DXE-218 2 Input 8 Output Splitter with Downscaling and PoE www.auroramm.com Manual Number: 221207...
- Page 2 Please review the following safety precautions. If this is the first time using this model, then read this manual before installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for further instructions.
-
Page 3: Table Of Contents
USERS GUIDE TABLE OF CONTENTS PACKAGE CONTENTS ............................. 4 OPTIONAL ACCESSORIES ............................. 4 INTRODUCTION ................................ 5 About ................................... 5 Features................................5 SKU Front ................................6 SKU Rear................................7 UNDERSTANDING THE BASICS ..........................8 Cabling and Connection ............................8 EDID and its Importance ............................. 8 HARDWARE INSTALLATION .......................... -
Page 4: Package Contents
PACKAGE CONTENTS Please make sure the following items are included within your package. Contact your dealer if any items are missing or damaged. ⚫ DXE-218 ⚫ 2 under table/wall mount ears Power supply is sold separately as unit is PoE. -
Page 5: Introduction
In addition, the downscaling per port allows 1080p screens to be utilized on the same splitter with a 4K60 source. To round out the solution, the DXE-218 has 2 input ports to select from to change content remotely. -
Page 6: Sku Front
USERS GUIDE SKU Front LEDs Power – Power will light red when unit is on. ⚫ Input LED – Will light accordingly based on HDMI input selection. ⚫ Output LED – Will light HDMI outputs 1-8 accordingly if an output is connected to a display and hot plug is ⚫... -
Page 7: Sku Rear
USERS GUIDE SKU Rear Rear ⚫ Power 12VDC 12 Volt DC power input. ⚫ 10/100Mbps LAN. Can power the unit with PoE from injector or switch. LAN connector LED’s (Rear): o Left LED Green = 10/100 Connected o Left LED Orange = Activity ⚫... -
Page 8: Understanding The Basics
Cabling and Connection The DXE-218 is capable of HDMI 2.0 which requires proper 18Gbps HDMI cables to work properly. Always make certain to use HDMI cables rated for 2.0 18Gbps especially for the length of the cable selected. If active cables are used make certain to put the transmitter side on the HDMI output(s). - Page 9 USERS GUIDE used, there will be no video present on the 1080p destination. The only way to solve this issue, is a new EDID combining the common features. In this case an EDID which is set at 1080p with 2-channel audio is the solution. www.auroramm.com...
-
Page 10: Hardware Installation
USERS GUIDE HARDWARE INSTALLATION Mounting 1. The DXE-218 comes with 2 mounting ears for mounting to a wall or under a table. If required, Use the supplied screws to attach to each side of the DXE-218. IP Control Setup 1. The default IP is 192.168.1.x. The last octet is determined by the front panel, and can be set to 0-9 only. -
Page 11: Applications
Example 1: Retail Store Display Distribution Retail Store Display Distribution The DXE-218 is the perfect fit for HDMI distribution of the same signal up to 8 displays or more if daisy chained together. The integrated per port downscaling allows for compatibility with lower cost 1080p displays that normally cannot handle a 4K signal. -
Page 12: Connector Pin Definition
USERS GUIDE CONNECTOR PIN DEFINITION HDMI TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 1 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 13: Troubleshooting
Make certain proper HDMI input is selected. ⚫ Make certain common EDID was learned from output 1. ⚫ Verify the cabling is plugged in properly at DXE-218 and display. ⚫ Some displays have a specific input for HDMI 2.0 or certain capabilities. ⚫... -
Page 14: Firmware Update
DXE-218 Windows tool. The software tool will allow control of the DXE-218, EDID downloads from the outputs, firmware updates, and UART IP Settings. Make certain to connect to the unit first by selecting System at the top left and click connect. Factory reset is also under system. - Page 15 EDID function for the common denominator. The Firmware Update tab is to upload the latest updates into the DXE-218. There are 4 different firmware types that can be uploaded. Depending on which one will determine the section that applies for the upload. The firmware has a description when you select in the file name of what function of the unit it impacts.
-
Page 16: Uart Protocol
USERS GUIDE APPENDIX 3 UART Protocol Command Respond Description 0x04 0x87 0x60 0x01 0xAA 0xCC + 6bytes Read Mac 0x04 0x87 0x60 0x02 0xAA 0xCC + 4bytes Read IP address 0x04 0x87 0x60 0x03 0xAA 0xCC + 4bytes Read Mask 0x04 0x87 0x60 0x04 0xAA 0xCC + 4bytes Read Gateway 0x08 0x87 0x60 0x06 + 4 bytes 0xAA... -
Page 17: Telnet Protocol
USERS GUIDE TCP Protocol Command Respond Description $ipaddress=xxx.xxx.xxx !ipaddress=xxx.xxx.xxx.x Sets the IP Address .xxx $subnet=xxx.xxx.xxx.xx !subnet=xxx.xxx.xxx.xxx Sets the Subnet Mask $gateway=xxx.xxx.xxx. !gateway=xxx.xxx.xxx.xx Sets the gateway ### = output number 1-8. For all $cecsend-###=YYY !cecsend-###-power on outputs use 0. YYY = poweron,poweroff,inputhdmi $input=# !input=#... -
Page 18: Recommended Network Switches
Recommended Network Switches The DXE-218 will work with any 10/100 or faster switch for control and status. The PoE is classified for up to 12.9 watts (15.4 Watts Total). When selecting a PoE switch always make certain the power supply of the PoE switch is proper to the port count (15.4W x qty of ports). -
Page 19: Technical Specifications
784g (1.73 lbs.) Mounting Wall/Desk Mount Ears Power supply 12V 2A DC Power consumption 8.64 Watts Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x DXE-218 Package Contents Specifications subject to change without notice. www.auroramm.com... -
Page 20: Warranty
Limited 5 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 5 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2019 and after. Motorized mechanical parts (Hard Drives, DVD, etc.), mechanical parts (buttons, doors, etc.), remotes and cables are covered for a period of 1 year. - Page 21 USERS GUIDE Aurora Multimedia Corp. 205 Commercial Court | Morganville, NJ 07751 Phone: 732-591-5800 | Fax: 732-591-6801 www.auroramm.com...
