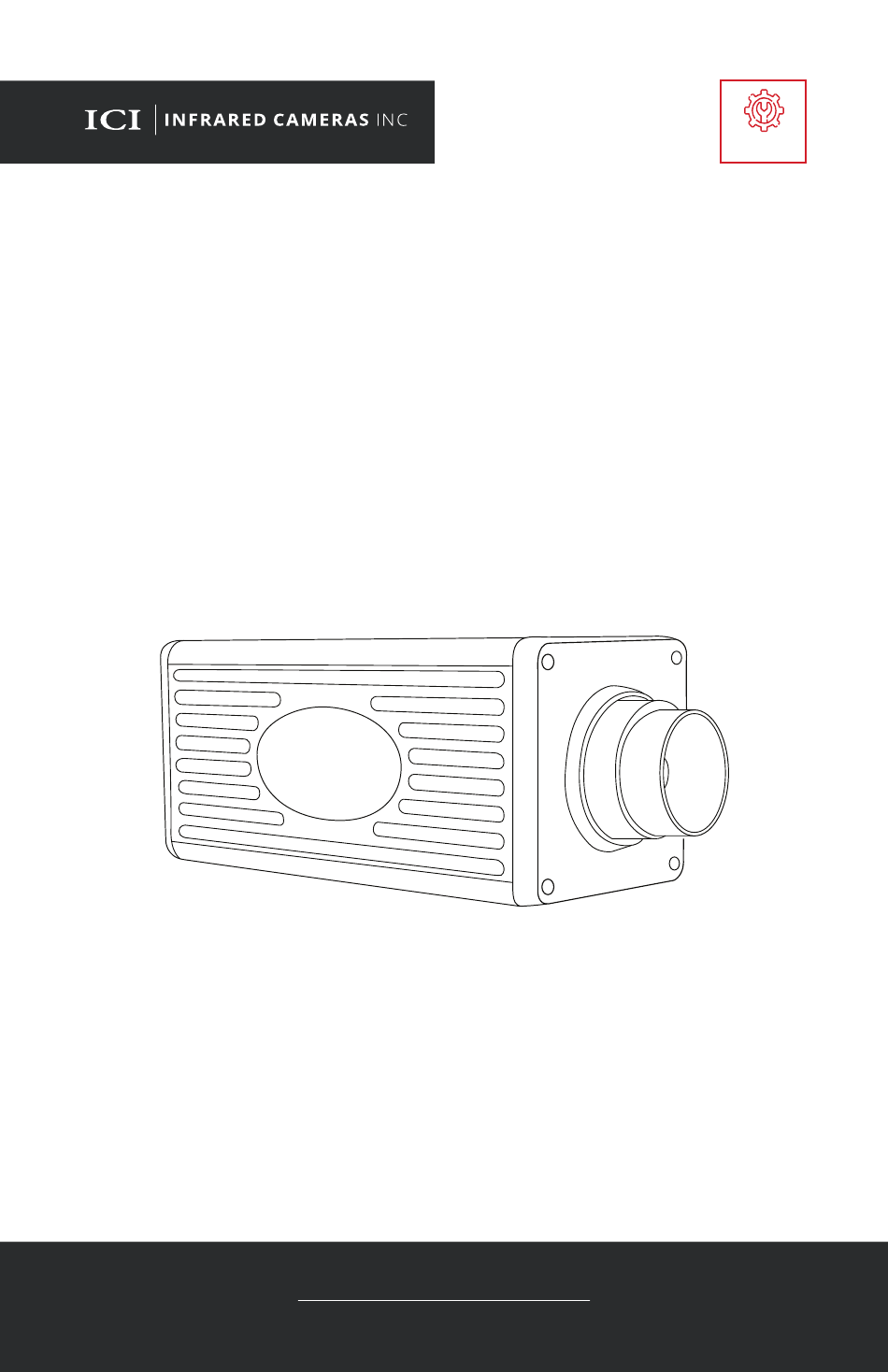

FMX HT-640 P-SERIES
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com
Advertisement
Table of Contents
Related Manuals for INFRARED CAMERAS FMX HT-640 P Series
Summary of Contents for INFRARED CAMERAS FMX HT-640 P Series
- Page 1 Edit Text Revision: 11.2022-001 Industry FMX HT-640 P-SERIES USER MANUAL PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com...
- Page 2 FMX HT-640 P-SERIES USER MANUAL Revision History 11.2022-001 Document created...
-
Page 3: Table Of Contents
FMX HT-640 P-SERIES USER MANUAL Contents Disclaimers ���������������������������������������������������������� 4 Terms and Conditions ................. 4 U.S. Government Regulations ............. 4 Copyright ..................... 4 Quality Assurance ................4 Customer Help ..................4 User Notice����������������������������������������������������������� 5 Calibration ................... 5 Accuracy ..................... 5 Cybersecurity ..................5 Disposal of Electronic Waste ............ -
Page 4: Disclaimers
1-3 Copyright © 2022, Infrared Cameras, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of Infrared Cameras, Inc. -
Page 5: User Notice
FMX HT-640 P-SERIES USER MANUAL User Notice Calibration Annual calibration to the camera is recommended. Contact customer service to schedule maintenance. Accuracy For very accurate results, we recommend that you wait a minimum of 5 minutes after you have started the camera before measuring a temperature. Cybersecurity After the products are connected to the Internet, they may face risks including but not limited to network attacks, hacker attacks, virus infections, etc. -
Page 6: Intended Use
The manufacturer allows himself the right to modify without any preliminary opinion the technical specifications of the product. Scope of Application Infrared Cameras, Inc. issues generic manuals that cover several cameras within a model line. This means that this manual may contain descriptions and explanations that do not apply to your particular camera model. -
Page 7: Authoritative Versions
FMX HT-640 P-SERIES USER MANUAL Authoritative Versions The authoritative version of this publication is English. In the event of divergences due to translation errors, the English text has precedence. Any late changes are first implemented in English. Other languages may or may not be available. -
Page 8: Safety Information
FMX HT-640 P-SERIES USER MANUAL Safety Information • This device must be installed by qualified service personnel or system installation personnel. • Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 9 FMX HT-640 P-SERIES USER MANUAL • Do not put the product into a fire. • It is recommended to calibrate the device(s) annually. • If the device operates abnormally, please contact the supplier and do not dismantle the device on your own. THE ENCAPSULATION RATING IS ONLY APPLICABLE WHEN ALL THE OPENINGS ON THE CAMERA ARE SEALED WITH THEIR CORRECT COVERS, HATCHES, OR CAPS.
-
Page 10: Technical Specifications
FMX HT-640 P-SERIES USER MANUAL Technical Specifications FMX HT-640 Pixel Resolution 768 x 576 Accuracy ± 2°C (± 3.6°F) or 2% of reading Temperature Range 650°C to > 1500°C (1202°F to > 2732°F)* Operation Range -20°C to 50°C (-4°F to 122°F) Storage Range -40 °C to 70 °C (-40 °F to 158 °F) Pixel Pitch... -
Page 11: Structure
FMX HT-640 P-SERIES USER MANUAL Structure Appearance and Definitions of Housing Interface Definitions of Housing Interface Mirco-USB interface RJ-45 Internet access... -
Page 12: Package Includes
FMX HT-640 P-SERIES USER MANUAL Package Includes FMX Series IR Camera Software USB Drive Option 2: Power Adapter and Ethernet Cable Option 1: Combo Cable ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION... -
Page 13: Quick Start Instructions
FMX HT-640 P-SERIES USER MANUAL Quick Start Instructions Option 1 Setup Mount the FMX Series camera to a Plug Mirco-USB end of the combo tripod using the ¼-20 mount. cable into the 5V DC port on the back of the FMX Series camera. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN. - Page 14 FMX HT-640 P-SERIES USER MANUAL Plug the other end of the Plug the Ethernet combo cable (same Ethernet cable into the Ethernet side as the Micro-USB) into the FMX port of the laptop computer. Series camera Ethernet port. Plug USB into an open USB Power on devices.
-
Page 15: Option 2 Setup
FMX HT-640 P-SERIES USER MANUAL Option 2 Setup SOME FMX SERIES IR CAMERA PACKAGES WILL COME WITH A POWER ADAPTER AND ETHERNET CABLE INSTEAD OF A COMBO CORD. COMPLETE STEP A FOR OPTION ONE SETUP BEFORE CONTINUING WITH THE FOLLOWING STEPS. -
Page 16: Software Installation
FMX HT-640 P-SERIES USER MANUAL Power on devices. Software Installation Install IR Flash software using the Once installed, launch IR Flash software USB drive. Refer to the IR software by double-clicking the Flash User Manual for instructions. associated desktop icon. -
Page 17: Operation Instructions
FMX HT-640 P-SERIES USER MANUAL Operation Instructions IP Address Configuration The FMX HT-640 comes configured with static IP address. The camera lies at 192.168.10.117. Connecting the computer requires setting the IPv4 settings of the Ethernet port to a static IP address in the same “Class C.” We suggest applying 192.168.10.110 with a subnet mask of 255.255.255.0. -
Page 18: Ir Flash Pro
FMX HT-640 P-SERIES USER MANUAL IR Flash Pro Software arrives installed on computers and tablets purchased from ICI as complete systems and it will launch automatically on startup. A copy of the software is provided on the Software USB Drive. Documentation can be found online on the IR Flash Pro web page under the Downloads section or at this address:... -
Page 19: Cleaning And Maintenance
FMX HT-640 P-SERIES USER MANUAL Cleaning and Maintenance Cleaning the Germanium Lens Do not use corrosive chemicals on the optical glass components. Dust, grease, and fingerprints will produce harmful substances and lead to a decline in performance, or cause scratches. If dirt is found, please use the following methods: Use a blown balloon or a soft brush to clean the lens surface to avoid dust particles scratching the anti-reflection film on lens surface during the... -
Page 20: Troubleshooting
FMX HT-640 P-SERIES USER MANUAL Troubleshooting If the user encounters any problems while using the imager, refer to the following options. If the problem persists, disconnect the power and contact the customer support department. 10-1 Camera(s) not showing, camera(s) lagging, or software crashing •... -
Page 21: Unclear Or Dark Visible Images
FMX HT-640 P-SERIES USER MANUAL 10-5 Unclear or dark visible images • Turn on lights in imaging area • If lens is foggy, use professional equipment to clean the lens 10-6 Temperature readings are incorrect • Turn off the device; then, turn it back on •... -
Page 22: About Ici
Additionally, our ICI 7320 was awarded “Product of the Month” by NASA*. Originally named Texas Infrared (still DBA), Infrared Cameras, Inc. has been in business since March, 1995. Thank you for your dedicated and continued support.
