Make communication connections

Connect the communication conductors to TB3 terminals. Pay attention that cutting and
stripping should be carried out outside the aPbox enclosure and is prohibited inside the
enclosure.
One RC65/RM65 connected to an aGate
When one RC65/RM65 unit is connected to an FHP system, the 485A and 485B terminals
on the aPbox TB3 module are connected to the RS485 A4 and B4 terminals on the aGate
respectively, DO+ and DO- terminals to the aGate DO terminals (without distinguishing
the polarity).

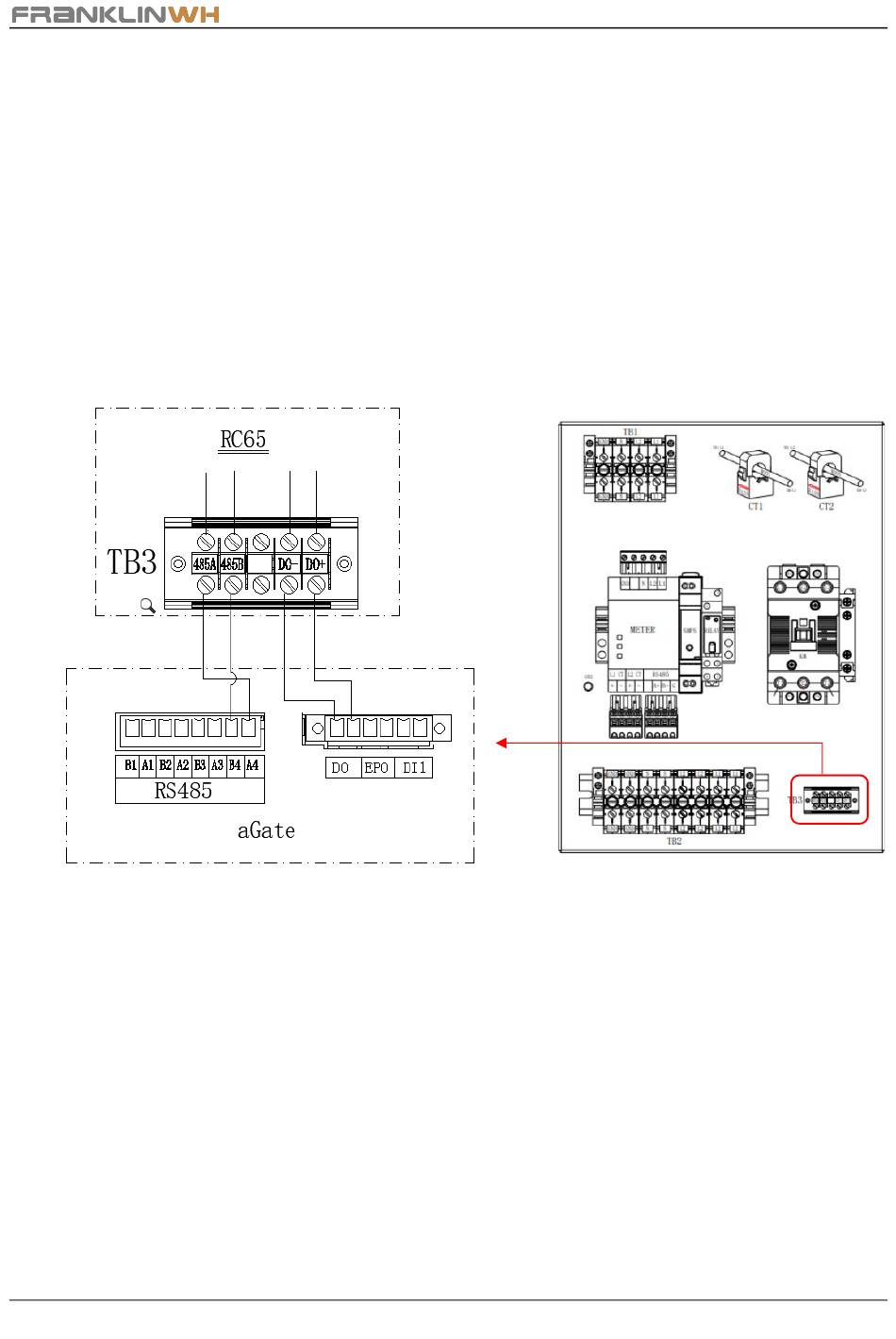

Use the following diagram as a reference when making communication connections.
