Summary of Contents for MD SPORTS 39600

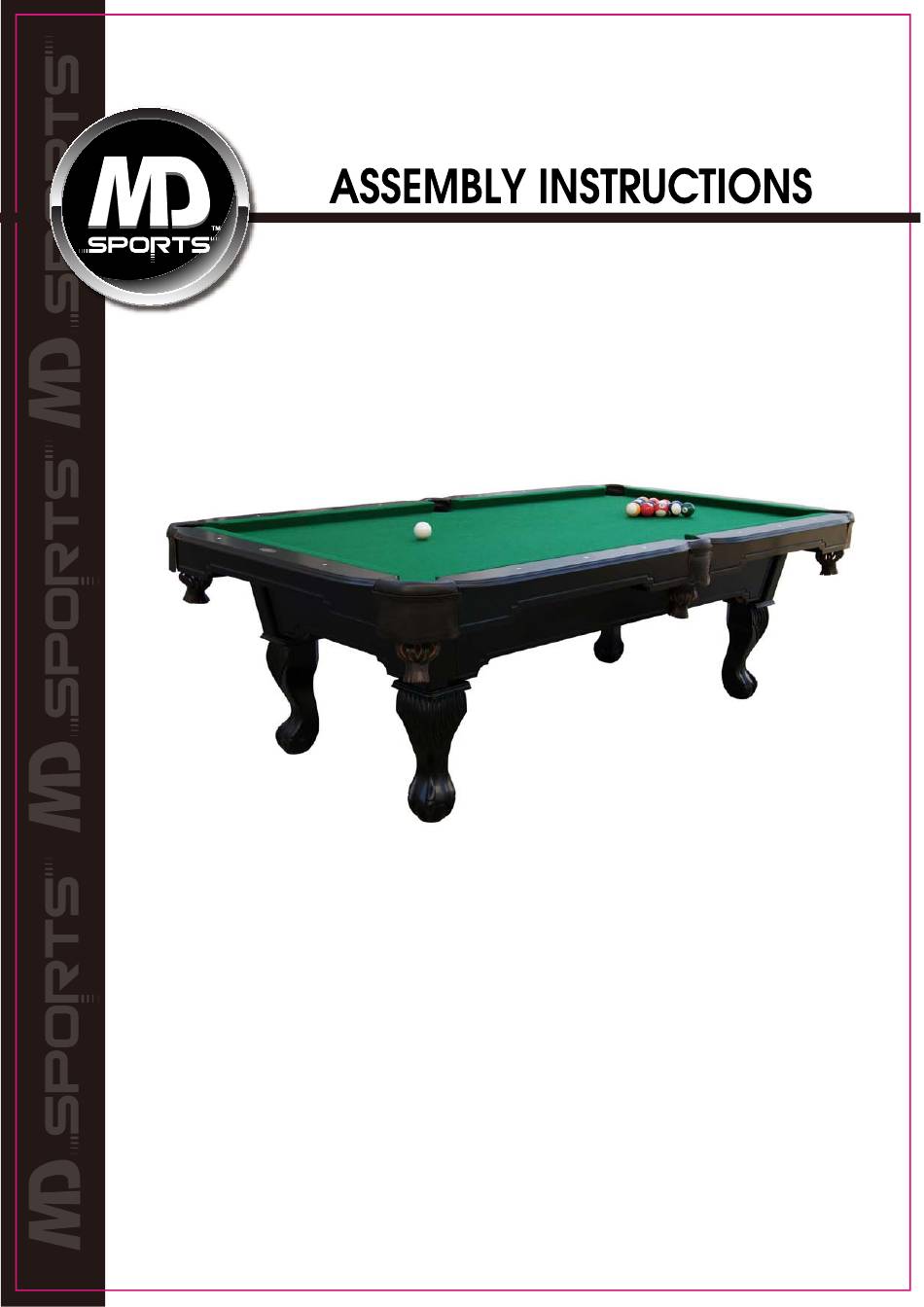

- Page 1 INSTRUCCIONES DE ARMADO Please contact us before returning the product to the store. Toll Free: 877-852-8164 Por favor póngase en contacto con nosotros antes de devolver el producto a la tienda. Número telefónico gratis: 877-852-8164 MODEL/MODELO: 39600...
- Page 2 LIMITED 90 DAYS WARRANTY This product is covered by a limited warranty that is effective for 90 days from the date of purchase. The warranty covers any defects in parts and workmanship. This Limited Warranty gives you specific legal rights and you may also have other rights which very from one state (province) to another.
-
Page 3: Tools Required
IMPORTANT NOTICE! Please contact us before returning the product to the store. Please Keep Your Instructions! Your Model number is necessary should you need to contact us. Please read through this instruction manual book to familiarize yourself with all parts and assembly steps. - Page 4 39600 PARTS LIST Main Cabinet Billiard Ball Lower End Apron Lower Side Apron 1 Piece 4 Pieces 1 set 2 Pieces 2 Pieces Apron Corner 8 x 60mm Bolt - Black 22 x 8.5mm Washer 8 x 18mm Bolt - Silver...
- Page 5 Pre-installed ASSEMBLY INSTRUCTIONS 8 x 55mm Bolt 12 Pieces 1. Find a clean, level place to begin the assembly of your Billiard Table. The table will be assembled upside down and then turned over on its legs once the assembly completed. This game table is heavy, and turning it over will require at least four strong adults.
- Page 6 FIG.2 4. Attach the “L” Steel Bracket (#15) to the apron using one Bolt - Silver (#9) and one Washer (#8) per “L” Steel Bracket. See FIG.2 FIG. 2 SILVER BOLT SILVER BOLT SILVER BOLT...
- Page 7 FIG.3 5. Attach the Apron Corner (#6) to the arpons using two Bolts (#10) and two Washers (#11) per Apron Corner. See FIG.3. FIG. 3 FIG.4 6. Attach the Leg Base-A (#16) to the aprons using four SILVER BOLT Bolts - Silver (#12) per Leg Base. See FIG.4. FIG.
- Page 8 FIG.5 7. Attach the Leg (#2) to the Leg Base - A & B (#16 & #40) using three Bolts (#7) and three Washers (#8) per Leg. See FIG.5. FIG. 5 8. Lift the table assembly from the floor with four strong adults, turn it over, and set table on its legs in the location where you play.
- Page 9 NOTE: DO NOT lift the table by the pockets. If you move the table, do not lift it by placing your hands beneath the pockets and do not lean or put pressure on them. Do not lean or sit on the end or side rails as this may damage the table.
- Page 10 FIG.7 10. Assemble the Table Tennis Surface - A (#27) and Table Tennis Surface - B (#28) together. Place the Table Tennis Surface (#27 & #28) onto the billiard surface using the Table Tennis Supports (#29) and insert the Net Posts (#30) and Net (#33).
- Page 11 FIG.8 11. Attach the Side Cue Racks (#24) to the Top Cue Rack (#22) and Bottom Cue Rack (#23) using six Screws (#26) See FIG.8. 12. Attach the Cue Rack Bases (#25) to the Side Cue Racks (#24) using four Screws (#26) See FIG.8. FIG.8...
- Page 14 39600 LISTA DE PARTES Gabinete Principal Pierna Pelota de Billar Delantal Final Inferior Delantal Lateral Inferior 1 Pieza 4 Piezas 1 Juego 2 Piezas 2 Piezas Tornillo –Negro Arandela Tornillo – Plata Tornillo –Negro Delantal de Rincón 8 x 60mm 22 x 8.5mm...
- Page 15 Pre-instalado Tornillo 8 x 55mm INSTRUCCION DE MONTAJE 12 Piezas 1. Encuentre un lugar limpio y nivelado para empezar a montar su Mesa de Billar. La mesa será montada con la parte superior guiado hacia abajo y una vez que el montaje es compl- etado, se le voltea encima de sus patas. Esta mesa de juego es pesada y para voltearlo será...
- Page 16 FIG.2 4. Adjunte el Anaquel “L”de Acero (#15) al delantal usando un Tornillo-Plata (#9) y una Arandela (8) por Anaquel “L”de Acero. Vea la FIG. 2 FIG. 2 Plata Plata Tornillo – Plata...
- Page 17 FIG.3 5. Adjunte el Delantal de Rincón (#6) al delantal usando dos Tornillos (#10) y dos Arandelas (#11) por Delantal de Rincón. Vea la FIG. 3 FIG. 3 FIG.4 6. Adjunte la Base de Pierna (#16) al delantal usando cuatro Tornillos –...
- Page 18 FIG.5 7. Adjunte la Pierna (#2) a la Base de Pierna - A & B (#16 & #40) usando tres Tornillos (#7) y tres Arandelas (#8) por Pierna. Vea la FIG. 5 FIG. 5 8. Levante la mesa montada del piso con cuatro adultos fuertes, voltee la mesa y ponga la mesa sobre sus piernas en la posición donde usted juega.
- Page 19 NOTA: QUE NO levante la mesa por los bolsillos. Si usted mueva la mesa, no levantes por colocando sus manos bajo los bolsillos y no inclínese o haga presión sobre ellos. No inclínese o siéntese sobre el lado de barra por que se podría dañar la mesa. NOTA:Utilice el Calzo (#34) si fuera necesario (como demostrado) para nivelar la mesa.
- Page 20 FIG.7 10.Coloque la Superficie de Mesa de Tenis (#27 & #28) sobre la superficie de billar usando el Soporte de Mesa de Tenis (#29) e inserte los Postes de Red (#30) y la Red (#33). Vea la FIG. 7. FIG. 7...
- Page 21 FIG.8 11. Adjunte el Estante de Taco Lateral (#24) al Estante de Taco Superior (#22) y el Estante de Taco Inferior (#23) usando seis Tornillos (#26). Vea la FIG.8. 12. Adjunte la Base de Estante de Taco (#25) al Estante de Taco Lateral (#24) usando cuatro Tornillos (#26). Vea la FIG.8.
