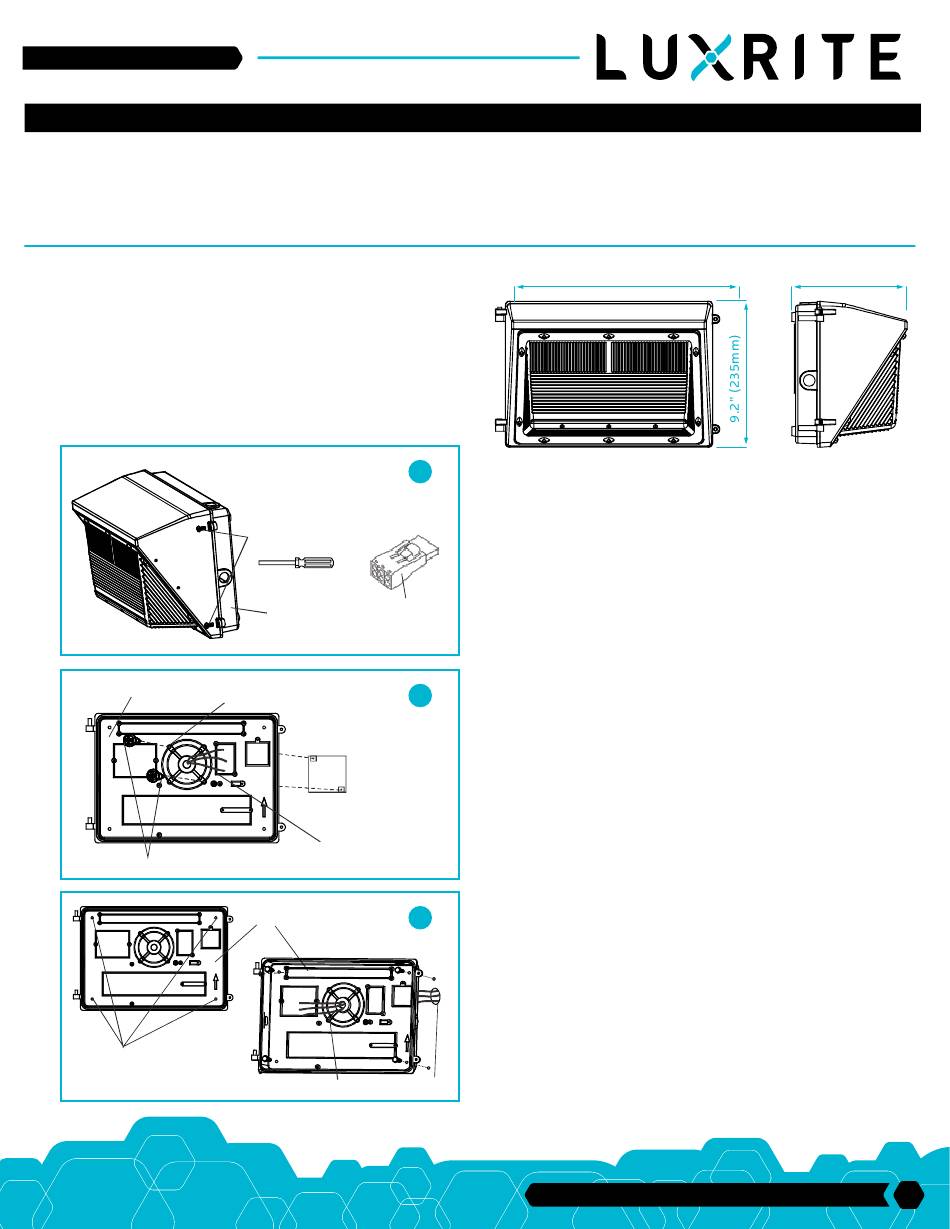

DOB LED WALLPACK
LR40500, LR40510, LR40520
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before installation or servicing,
2. This luminaire must be installed in accordance with the NEC or your local electrial code.
If you are not familiar with these codes and requirements, consult a qualified electrician.
3. If NEMA photo control is installed refer to NEMA Receptacle section for instructions,
4. Verify the availability of necessary tools and incidental material.
TO INSTALL
Rear Cover
Auxiliary Mounting Holes
J-box fasteners
UP
Auxillary
Mounting Holes
I N S T A L L A T I O N G U I D E
1
Screws
Connector
Rear Cover
2
4" Recessed J-box
UP
Supply Wire
3
Rear Cover
UP
Conduit
Supply Wire
14.2" (360mm)
LUMINAIRE INSTALLATION
STEP 1 (Figure 1)
Remove two screws, remove the rear cover of the luminaire and pull the connector.
STEP 2-1 (Onto a recessed 4" rectangular/octagonal J-Box)
(Figure 2)
1. Verify that supply power is off and that the J-Box is securely mounted within the
structural surface.
2. Remove both J-Box fasteners from J-Box (set aside for re-installation as needed).
3. Drill holes as J-Box required on the rear cover.
4. Position Rear cover over J-Box feeding supply wires thru the center of the rear
cover and slit in gasket. Replace fasteners from Step 2 (do not fully tighten).
5. Using a contractor level, ensure Rear cover is level and fully tighten fasteners (use
washers as required to ensure a secure fit).
STEP 2-2 (Conduit-stub up) (Figure 3)
1. Drill holes on the rear cover as auxiliary mounting holes.
2. Verify that supply power is off. Using a contractor level, ensure rear cover is level
and mark mounting surface thru selected auxiliary mounting holes.
3. Drill holes as marked in Step 1 and install appropriate mounting inserts capable of
handling fixture load requirements.
4. Feed supply wires thru the center of the rear cover and slit in gasket.
5. Ensure rear cover is level. Fully tighten fasteners (use washers as required to
ensure a secure fit).
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
7.4" (186mm)
