READ THIS FIRST
BEFORE YOU START
Ensure pool lights are turned off and system is isolated.
Confirm existing transformer is a 12v AC ONLY, magnetic type safety isolating transformer and is in good working order (if in doubt contact Spa Electrics
or your prefered registered electrician).
Installation of the EMRX Light requires connection to a low voltage circuit (12v AC) ONLY. No work should be carried out on mains voltage (240v) systems
unless done so by a registered electrician in accordance with AS/NZS 3000:2007 (current amendment) standards.
For safe and proper installation, ensure that only those parts supplied with the system are used.
Check that there is enough cable behind the existing light to allow for cable connection above water. If enough cable is not availabe, water level must be
lowered to connect EMRX light.
Ensure pool light cable is circular and free of damage or imperfections i.e. cuts, cracks or deformation.
If possible, trim cable back until a fresh end of cable is available.
This manual is to be used in conjuction with the supplied EMRX installation manual.
For any further information please contact Spa Electrics (03) 9793 2299
INSTALLATION
INSTALLATION
1
ADAPTOR INSTALLATION
1

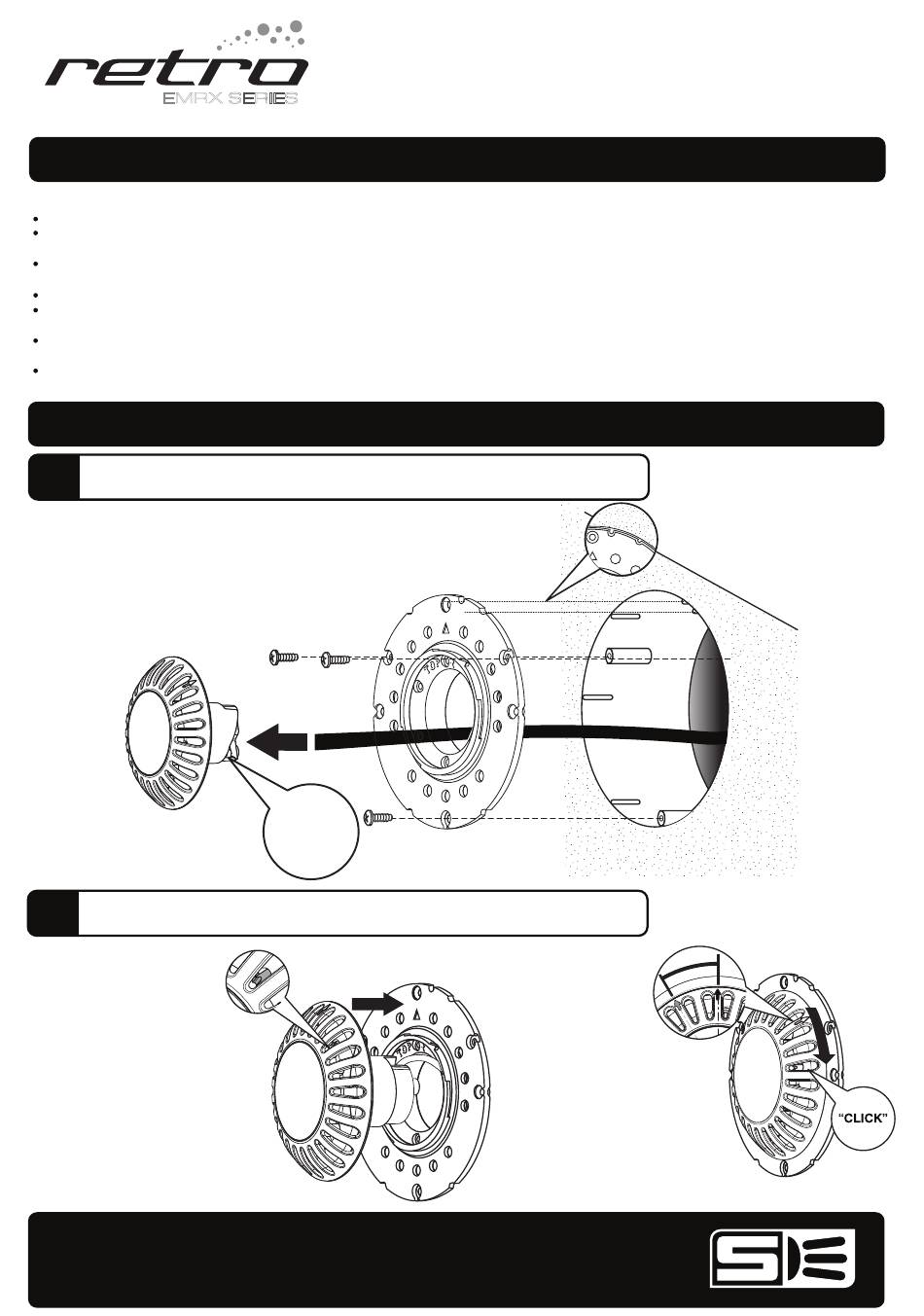

FIT ADAPTOR PLATE TO SLX/DELTA/ARC NICHE
USING EXISTING SCREWS, ALIGNING THE SLOTS
ON THE ADAPTOR TO THE KEYWAYS OF THE
NICHE
2
1
ALIGN RED
BUTTON WITH
'TOP' MARKING
ON ADAPTOR TO
ENGAGE IN
BAYONET LOCK
FOR ASSISTANCE PLEASE
CONTACT SPA ELECTRICS
SERIES
CONNECT
CABLE AS PER
EMRX
INSTRUCTION
MANUAL
EMRX-SLX/DELTA/ARC
INSTALLATION GUIDE
2
ROTATE LIGHT
CLOCKWISE TO
LOCK INTO
POSITION
ph: +61 3 9793 2299
info@spaelectrics.com.au
www.spaelectrics.com.au
