DUB 2314 TRAILER
Shoreland'r Trailer Install Guide
WB.DUB23T.01
NOTE
Riggers should be cautious assembling trailers and always use two people to move or rotate any
heavy items. Your safety is our #1 priority.

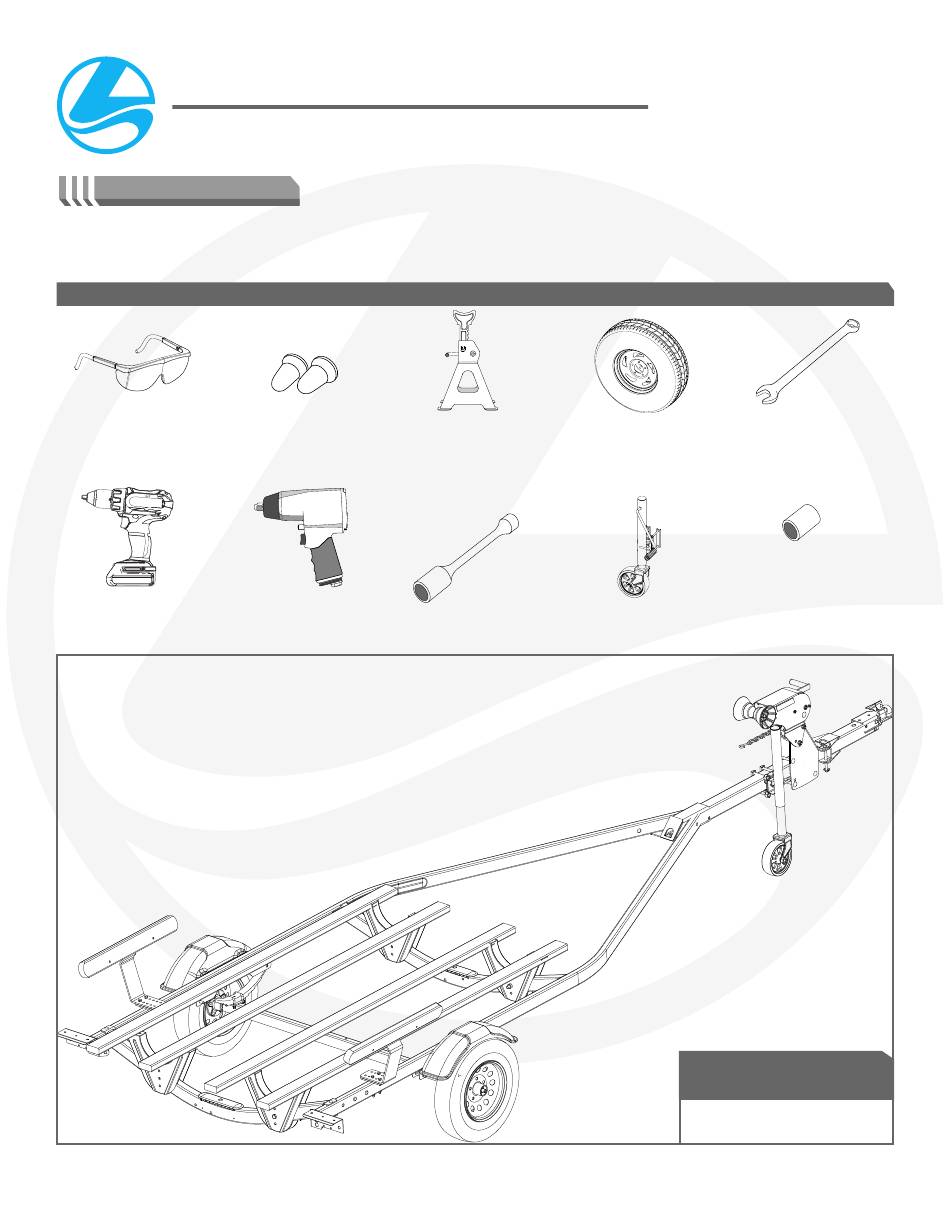

TOOLS REQUIRED
Safety
Glasses
Drill
Socket Wrench
Hearing
Protection
Pneumatic
Torque Stick
https://support.legendboats.com/
Jack
Stands
Jack & Dolly
9/16" Wrench
Tires
13/16" Wrench
3/4" Wrench
3/8" Socket
9/16" Socket
13/16" Socket
3/4" Socket
22mm Socket
APPLICABLE
BOAT MODELS
F19 Pro Tiller
1
