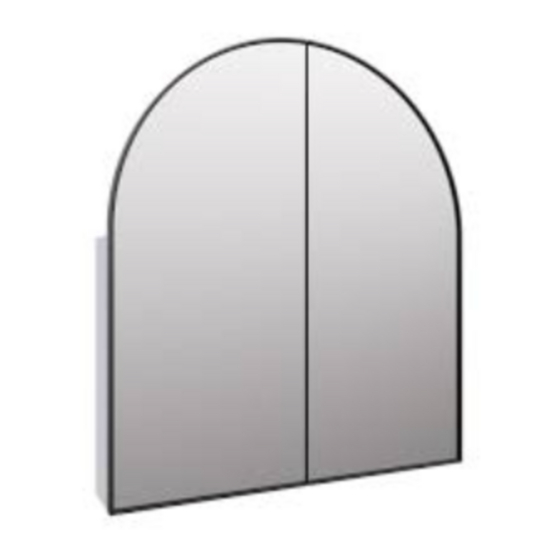

- Page 1 Mirror Cabinet Installation Guide (Recessed and Wall Mounted Installation) For Models: MSCA01 MSCA02 MSCR01 MSCP01 MSCP02 MSCSQ01...
-
Page 2: Before You Begin
Before You Begin Caution: Risk of personal injury. Cabinets are very heavy. Get assistance for lifting and moving the cabinets NOTICE: Risk of property or product damage. The location of the cabinet is critical. Make sure that the door will clear all obstacles (such as a faucet or light fixture). Ensure that any obstacles behind the finished wall will not be damaged during the cutting and/or drilling process. - Page 3 Installation Guide Model MSCA01 (H: 860mm / W: 760mm / 1 Door) Model MSCA02 (H: 800mm / W: 1200mm / 3 Doors) X 24 Model MSCR01 (H: 800mm / W: 800mm / 1 Door) Included in your purchase Preparation Cabinet Body Measuring the cabinet body of the actual product.
- Page 4 Installation Guide Model MSCP01 (H: 960mm / W: 560mm / 1 Door) Model MSCP02 (H: 760mm / W: 1200mm / 3 Doors) X 24 Model MSCSQ01 (H: 900mm / W: 600mm / 2 Doors) X 16 Included in your purchase Preparation Cabinet Body Measuring the cabinet body of the actual product.
- Page 5 WalI Mount Installation bottom slot top slot opening Disassemble the cabinet door(s) Installing the mounting brackets and mounting the Cabinet Body on wall After taking out the cabinet, disassembling the door(s). Measure and mark the bottom mounting holes on the wall corresponding to the pre-drilled hole locations in the bottom The door(s) can be quickly removed by pushing the mounting bracket (Draw horizontal line connecting the two...
-
Page 6: Recessed Installation
Recessed Installation Construct the framing Disassemble the cabinet door(s) Measuring the cabinet body of exact item. After taking out the cabinet, disassembling the door(s). Using a jigsaw or keyhole saw, carefully remove the finished wall material from the marked cutout. The door(s) can be quickly removed by pushing the button on hinge. - Page 7 Wood screws (4) Install the cabinet body into the framing Install the glass shelf(shelves) Drill through the 4 Half-Drilled holes (With rivet nuts) Determine the shelf(shelves) locations and insert the for recessed installation by using 6mm drill bit. slotted pins into the holes in the sides of the cabinet. Make sure hinges are on correct side of opening for Install the shelf(shelves) between the slots of the pins left hand or right hand operation.
- Page 8 Reassembling the door(s) Adjusting hinges - To make the door(s) in correct position After install the glass shelf (shelves) in right position, reassembling the door(s). Front to back adjustment - Turn the screw “A” clockwise or anti-clockwise for moving the door Inward or Outward. Clamp hinge on the mounting plate as shown by direction arrow.
-
Page 9: Care And Cleaning
Care and Cleaning The cabinet door and interior are constructed of mirrored glass, steel and stainless steel. Use only a damp cloth to clean. Ammonia or vinegar based cleaners can damage mirrors. A solution of 50% of water and 50% of isopropyl alcohol is recommended fop mirror cleaning. A very mild detergent may be used to clean the surface. - Page 10 Future Glass can supply the product to fit! If you have any questions, please do not hesitate to reach out to us. Thank you again for choosing Future Glass! Best Regards, The Team at Future Glass www.futureglass.com.au futureglass@aquilia.com.au...
