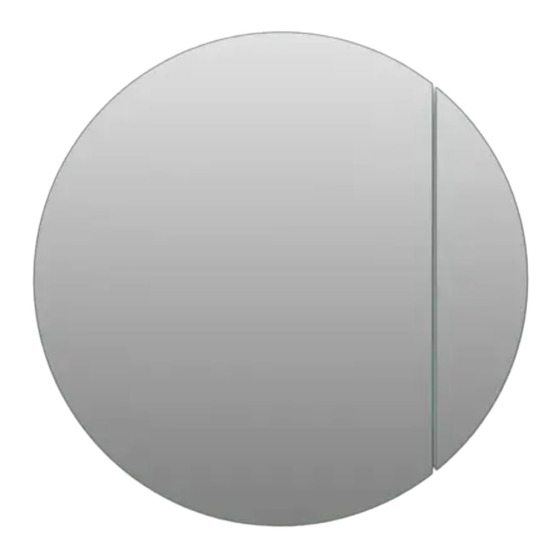

- Page 1 Mirror Cabinet Installation Guide (Recessed Installation) For Models: Orsa MC1-R-24 Orsa MC1-R-36 Shira MC1-AR-40X18 Ruma MC1-PL-32X16 Ezri MC1-SQ-32X24 Ezri MC2-SQ-32X36 Ezri MC3-SQ-32X48...
-
Page 2: Before You Begin
Before You Begin Caution: Risk of personal injury. Cabinets are very heavy. Get assistance for lifting and moving the cabinets NOTICE: Risk of property or product damage. The location of the cabinet is critical. Make sure that the door will clear all obstacles (such as a faucet or light fixture). Ensure that any obstacles behind the finished wall will not be damaged during the cutting and/or drilling process. - Page 3 Thank you for your purchase. If for any reason you are having trouble with installation, or if the size of the product does not fit your designated space, please contact Future Glass directly and do not return this product to place of purchase. Future Glass takes pride in providing quality products and customer service.
- Page 4 Installation Guide Model MC1-AR-40X18 (H: 40” / W: 18” / 1 Door) Model MC1-R-24 (Dia. 24” / 1 Door) Model MC1-R-36 (Dia. 36” / 3 Doors) Included in your purchase Preparation Cabinet Body Measuring the cabinet body of the actual product. Screw (For wooden frame) Glass shelf Shelf clip...
- Page 5 Model MC1-SQ-32X24 (H: 32” / W: 24” / 1 Door) Model MC2-SQ-32X36 (H: 32” / W: 36” / 2 Doors) X 16 Model MC3-SQ-32X48 (H: 30” / W: 48” / 3 Doors) X 16 Included in your purchase Preparation Cabinet Body Measuring the cabinet body of the actual product.
- Page 6 Model MC1-PL-32X16 (H: 32” / W: 16” / 1 Door) Included in your purchase Preparation Cabinet Body Measuring the cabinet body of the actual product. Screw (For wooden frame) Glass shelf Shelf clip IMPORTANT: Cover plate for hinge The dimensions of the cabinet body may be vary from actual item.
- Page 7 Construct the framing Disassemble the cabinet door(s) Measuring the cabinet body of exact item. After taking out the cabinet, disassembling the door(s). Using a jigsaw or keyhole saw, carefully remove the finished wall material from the marked cutout. The door(s) can be quickly removed by pushing the button on hinge.
- Page 8 Wood screws (4) Install the cabinet body into the framing Install the glass shelf(shelves) Make sure hinges are on correct side of opening for Determine the shelf(shelves) locations and insert the left hand or right hand operation. slotted pins into the holes in the sides of the cabinet. Place cabinet body into framing.
- Page 9 Reassembling the door(s) Adjusting hinges - To make the door(s) in correct position After install the glass shelf (shelves) in right position, reassembling the door(s). Front to back adjustment - Turn the screw “A” clockwise or anti-clockwise for moving the door Inward or Outward. Clamp hinge on the mounting plate as shown by direction arrow.
- Page 10 Featured Model: Eclipse Design your Perfect Space Visit our Shower Door Designer to find the enclosure that fits your space perfectly. GL ASSWAREHOUSE .US...
-
Page 11: Care And Cleaning
Care and Cleaning The cabinet door and interior are constructed of mirrored glass, steel and stainless steel. Use only a damp cloth to clean. Ammonia or vinegar based cleaners can damage mirrors. A solution of 50% of water and 50% of isopropyl alcohol is recommended fop mirror cleaning. A very mild detergent may be used to clean the surface. - Page 12 Featured Model: Esprit GL ASSWAREHOUSE .US...
- Page 13 Complete your kit Explore our complete range of shower enclosures to compliment your new medicine cabinet. Choose from many different styles, finishes, and options to give your bathroom that extra bit of style. © 2021 Glass Warehouse, All Rights Reserved...
- Page 14 Exclusive Limited Warranty Terms & Conditions. This warranty is effective as of JANUARY 1, 2019 on all Future INSTALLATION, REPAIR, OR REPLACEMENT, AS WELL AS ANY Glass product purchases OTHER KIND OF ANCILLARY COST, LOSS OR DAMAGE ARE EXCLUDED. Please allow up to 1-3 business days for processing PLEASE READ Future Glass WARRANTY TERMS AND of warranty issued parts.
- Page 15 obligation shall be discharged upon tender of parts, replacement INCONVENIENCE, INCIDENTAL EXPENSES, LABOR or repair of the product. Purchaser’s refusal to accept the tender MATERIAL CHARGES, OR ANY OTHER COSTS RESULTING terminates all warranty obligations and VOIDS THE WARRANTY. FROM THE USE OF ITS PRODUCTS OR PERTAINING TO THE Cost of freight for returning products to Future Glass for repairs APPLICATION OF THE PRESENT WARRANTY, OR RESULTING or replacement under this limited warranty are the responsibility...
- Page 16 Register Your Warranty Today! To activate your limited lifetime warranty, please visit: http://www.glasswarehouse.us/contact/ We will require this information within 30 days of purchase to complete the activation of your warranty.
