AIR EXCHANGE EQUIPMENT
INSTALLATION AND USER
MANUAL
THE QUALITY GOALS OF AIR CONDITIONING COME TRUE
WITH THE RECOVERY SYSTEM

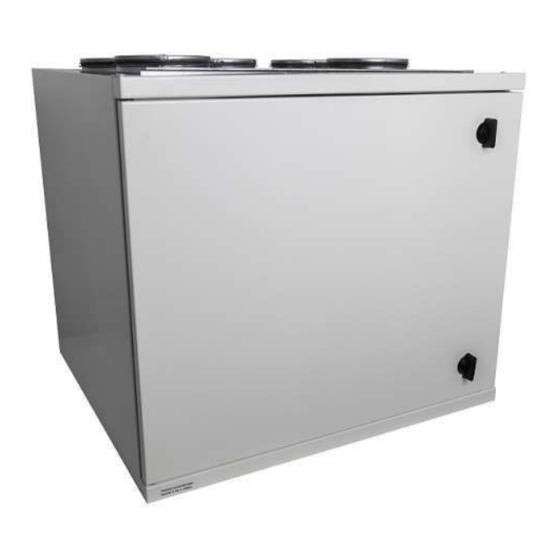

TALTERI removes used air from interior and brings in fresh air.
Humidity and impurities are exhausted through thermal recovery
unit that heats the filtered ambient air cost-effectively. The fresh
warm air is channelled draught-free and noise-free into the
premises in necessary quantities.
ENSURE THE QUALITY OF AIR EXCHANGE!
DEEKAX Air Oy
R
TALTERI
DIVK-C 96 C
Patruunapolku 4
79100 LEPPÄVIRTA
Puh. 0207 912550
www.deekaxair.fi
Advertisement
Related Manuals for Deekax TALTERI DIVK-C 96 C
Summary of Contents for Deekax TALTERI DIVK-C 96 C
- Page 1 The fresh warm air is channelled draught-free and noise-free into the premises in necessary quantities. ENSURE THE QUALITY OF AIR EXCHANGE! Patruunapolku 4 Puh. 0207 912550 DEEKAX Air Oy 79100 LEPPÄVIRTA www.deekaxair.fi...
- Page 2 MACHINE PARTS AND TECHNICAL INFORMATION 1 Door switch 2 Supply fan 166W 3 Extract fan 166W 4 Heat exchanger 5 Postheating 500W 6 Preheating 1000W 7 Extract air filter (G4) ISO Coarse>75% 8 Suply air filter (F7) ISO ePM1 9 Exhaust of condensing water 10 Summer bypass appliance 11 Preheat manual overheat protection 12 Postheat manual overheat protection...
- Page 3 TALTERI DIVK-C96 INSTALLATION The air exchange unit is meant fo r warm inner facilities. Suitable installation spots are, among others, office, dressing or household facilities and technical or warm storages. In case the temperature of the installation location is lower than ro om temperature, the factory settings of the appliance must be changed to obtain faultless functioning.
- Page 4 DIVK-C 96 INSTALLATION TO A SUSPENDED CEILING The ceiling-mounting plate is attached to the roof with M8, thread bars (not included in the LEAVE A 40-50MM GAP delivery). M8 THREADED BAR BETWEEN THE CEILING AND THE FRONT EDGE OF THE BACKUP NUT MOUNTING PLATE 40-50...
- Page 5 ELECTRICAL CONNECTION BETWEEN THE KITCHEN HOOD ELECTRICAL CONNECTIONS AND THE HRV UNIT DIVK C-96 C CO2/%RH1 DIVK- C96 + EC KITCHEN HOOD 0-10 Electrical connections must be done following the installation manual and wiring diagram. ELECTRICAL CONNECTIONS CAN BE DONE ONLY BY Coupler male Coupler female AN ENTREPRENEUR WITH RESPECTIVE INSTALLATION RIGHTS.
- Page 6 THE INTRODUCTION OF THE VENTILATION UNIT USAGE AND CORRECT LEVEL OF AIR EXCHANGE The air exchange level is regulated by changing the working speed of the air impeller from the operating panel. BEFORE OPERATING YOUR AIR EXCHANGE SYSTEM, Airflow of different adjustable positions can be seen MAKE SURE THAT: from table on the page 2.
- Page 7 AFTERHEATING AND SUMMER BYPASS OF INLET AIR USAGE AND CORRECT LEVEL OF AIR EXCHANGE Machine has a Triac controller operated with 500 Watt The air exchange level is regulated by changing the heated inlet air of electric post-heating. working speed of the air impeller from the operating panel. The temperature of inlet air is usually regulated to + 16 Airflow of diffe rent adjustable positions can be seen The temperature may be adjusted to higher duging winter...
- Page 8 The channels must be checked if the impeller works but the air exchange is inadequate or the temperature changes in the channels between the interior and the machine. Temperature changes and humidity concentration in channels must be prevented by improving the isolation. DEEKAX Air Oy Patruunapolku 4 Puh. 0207 912550 79100 LEPPÄVIRTA...
