SAPTF33xx-1xx POTS to Fiber Optic
Stand-Alone Module
User's Guide
Unit A, 105

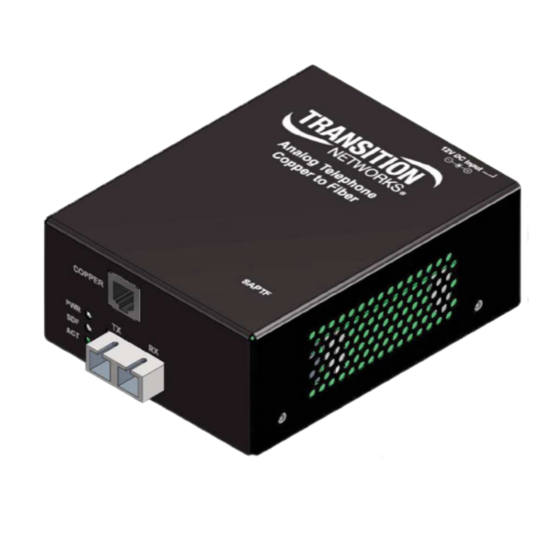

Transition Networks SAPTF33xx-1xx POTS to fiber-optic module connects central-
office voice-grade signals to distant POTS (Plain Old Telephone Service) terminal
equipment using standard telephone signaling. It can extend, over fiber, the distance
between two voice path communication devices by up to 80 km (49.7 miles), using either
single mode or multimode fiber cable.
The SAPTF33xx-1xx module provides audio transmission, caller ID, ringing at the
distant end and automatic ring-down. Two units are required to implement an end-to-end
system. An RJ-11C female connector provides the electrical interface between the
SAPTF33xx-1xx and the terminal equipment, or telephone line wall jack.
Note: The chassis version is the CAPTF33xx-1xx. For more information, see the
CAPTF33xx-1xx user's guide on-line at:
Products/Product Finder.
Unit B, 115
www.transition.com
click on
POTS Module Configuration . . . . . . .6
Installation . . . . . . . . . . . . . . . . . . . . .7
Operation . . . . . . . . . . . . . . . . . . . .14
Cable Specifications . . . . . . . . . . . . .17
FXS/FXO Specifications . . . . . . . . .18
Technical Specifications . . . . . . . . . .19
Troubleshooting . . . . . . . . . . . . . . . .20
Consumer Information . . . . . . . . . .21
Contact Us . . . . . . . . . . . . . . . . . . .22
Compliance Information . . . . . . . . .24
Advertisement
Table of Contents
Related Manuals for Transition Networks SAPTF33-1 Series
Summary of Contents for Transition Networks SAPTF33-1 Series
-
Page 1: Table Of Contents
User’s Guide Unit A, 105 Unit B, 115 Transition Networks SAPTF33xx-1xx POTS to fiber-optic module connects central- office voice-grade signals to distant POTS (Plain Old Telephone Service) terminal equipment using standard telephone signaling. It can extend, over fiber, the distance between two voice path communication devices by up to 80 km (49.7 miles), using either... - Page 2 SAPTF33xx-1xx Unit A: SAPTF33xx-105 Unit A: SAPTF33xx-105 — continued Unit A (SAPTF33xx-105) modules connect to a Central Office (CO) telephone line wall Unit A modules are also available in single mode, single fiber models. jack or a PBX (Private Branch Exchange). The module mimics telephone terminal Product Number Port One –...
- Page 3 SAPTF33xx-1xx Unit B: SAPTF33xx-11x Unit B: SAPTF33xx-11x — continued Unit B (SAPTF33xx-11x) modules, the reciprocal unit-to-unit A modules connect to Unit B modules are also available in single mode, single fiber models. telephone terminal equipment and mimic a CO (telephone line wall jack or PBX (FXS Product Number Port One - Copper Port Two - Fiber-Optic...
-
Page 4: Pots Module Configuration
SAPTF33xx-1xx POTS Module Configuration Installation Standard configuration CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the jumpers. Failure to observe this caution could result in damage to or One Unit A (SAPTF33xx-105) module and one Unit B (SAPTF33xx-115) module are failure of the module. - Page 5 SAPTF33xx-1xx Installation Installation — Continued — Continued Grounding the module Grounding the module — continued The SAPTF33XX-1XX modules come equipped with grounding lugs— The electrical conducting path from the module must: GROUNDING IS REQUIRED. See Figure 5. • Flow via the grounding lugs to the common bonding network (CBN) as required.
- Page 6 SAPTF33xx-1xx Installation — Installation — Continued Continued Installing cables: standard configuration Installing cables: standard configuration — continued Note: Unit B must be set for Standard Configuration. Install copper cable Install fiber cable Locate a copper cable with male, RJ-11C connectors installed at both ends. Locate a fiber cable with male, two-stranded TX to RX connectors installed at both ends.
- Page 7 SAPTF33xx-1xx Installation — Installation — Continued Continued Installing cables: automatic ring-down configuration Installing cables: automatic ring-down configuration — continued Note: Both Unit B modules MUST be configured for Automatic Ring-Down. Install fiber cable Install copper cable Locate or build fiber cable with male, two-stranded TX to RX connectors Locate or build copper cables with male, RJ-11C connectors installed at both installed at both ends.
-
Page 8: Operation
ACT (activity) indicator light. On = The telephone device is in use (off-hook). Consult the user’s guide for the Transition Networks SPS2460-xx DC external Flashing = The telephone device is ringing or pulse-dialing. power supply for powering the module. Rear View... -
Page 9: Cable Specifications
SAPTF33xx-1xx Operation — Cable Specifications Continued Loop-start operation Copper cable— category 1 ISO/IEC 11801; TIA/EIA 568-B Standards Loop-start service (commonly known as “Plain Old Telephone Service” (POTS) is Cable types: Shielded (STP) or unshielded (UTP) twisted-pair is acceptable. the primary analog signaling method used between telephone switches such as the Maximum Cable Length: 5 km (3.1 mi) Central Office (CO) and a telephone device. -
Page 10: Fxs/Fxo Specifications
SAPTF33xx-1xx Fiber cable — continued Technical Specification SAPTF3329-105, SAPTF3329-115 These specifications are for the model SAPTF33xx-1xx module or equivalent. SAPTF3329-106, SAPTF3329-116 1310 nm single mode Fiber Optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm Dimensions -105: 3.25" x 4.7" x 1.0" (82 mm x 119 mm x 25 mm) Fiber Optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm... -
Page 11: Troubleshooting
Repairs to the equipment Aside from the jumper settings, the SAPTF33xx-1xx is not intended to be serviced by the user. If the equipment requires repair, contact Transition Networks at 800-260-1312 or at www.transition.com then click Tech Support/Warranty. -
Page 12: Contact Us
00-1-952-941-7600 March 2010____ Transition now Stephen Anderson, Vice-President of Engineering Date Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and then click Tech Support/Transition Now link. Web-based seminars Transition Networks provides seminars via live web-based training. -
Page 13: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
