The TN-J48-xxx SFP transceivers are designed for bi-directional, serial-optical data
communications such as Gigabit Ethernet or fiber channels at speeds up to 1.25 Gbps.
Part Number
Port Description
TN-J4858C
1000Base-SX, duplex LC, 850 nm, multimode
220 m (722 ft)* on 62.5/125 µm fiber
550 m (1804.5 ft)* on 50/125 µm fiber
TN-J4859C
1000Base-LX, duplex LC 1310 nm, single mode
up to 20 km (12.3 miles)*
TN-J4860C
1000Base-LX/ZX, duplex LC 1550 nm, single mode
up to 80 km (49.7 miles)*
*Unless otherwise indicated, the distances listed are the typical maximum cable
distance. The actual maximum cable distance is dependent on the physical
characteristics of the network installation.
Notice: Transition Networks' SFP modules fully comply with the Multi-Sourcing
Agreement (MSA). This compliance allows our SFP modules to be used in
other MSA compliant SFP platforms without problems. In addition, TN SFP
modules specified in this manual are also compatible with all HP SFP-based
ProCure Switches, including the software. TN SFP modules ARE NOT HP
OEM brand modules.

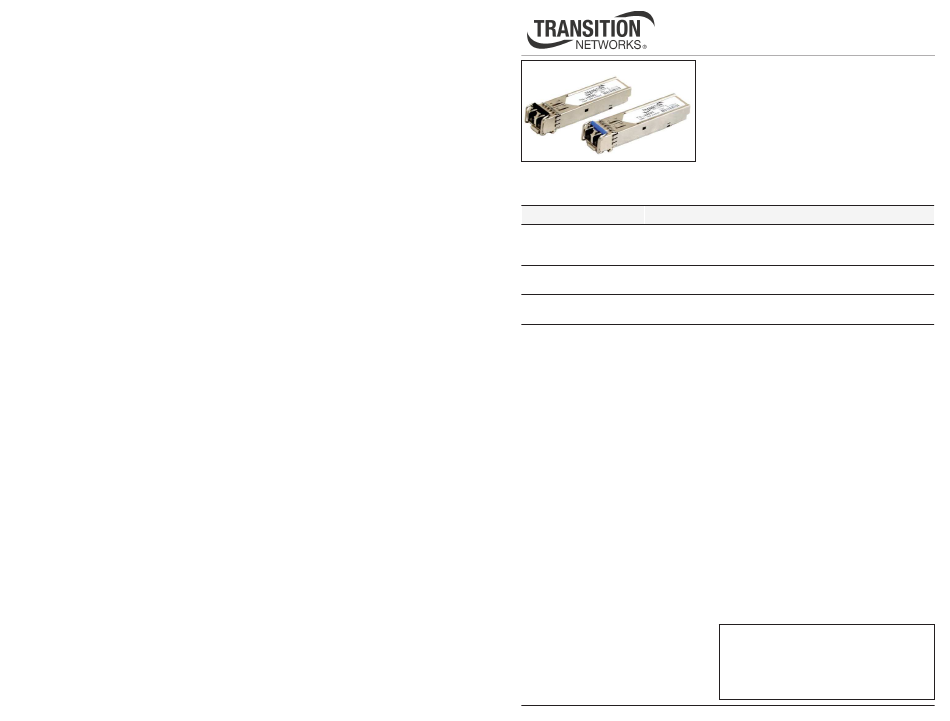

User's Guide

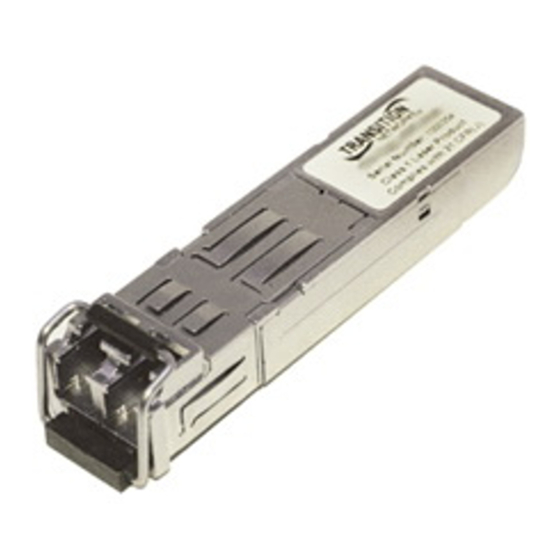

TN-J48xxx HP Compatible Small
Form Factor Pluggables (SFPs)
Transceiver Module
The Transition Networks TN-J48xxx SFP series
small form factor pluggable (SFP) transceiver
modules are designed to install in any SFP port.
Installation . . . . . . . . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . . . . . . . .3
Technical Specifications . . . . . . . . . . . . . .4
Contact Us . . . . . . . . . . . . . . . . . . . . . . . . .6
Compliance Information . . . . . . . . . . . . . .7
