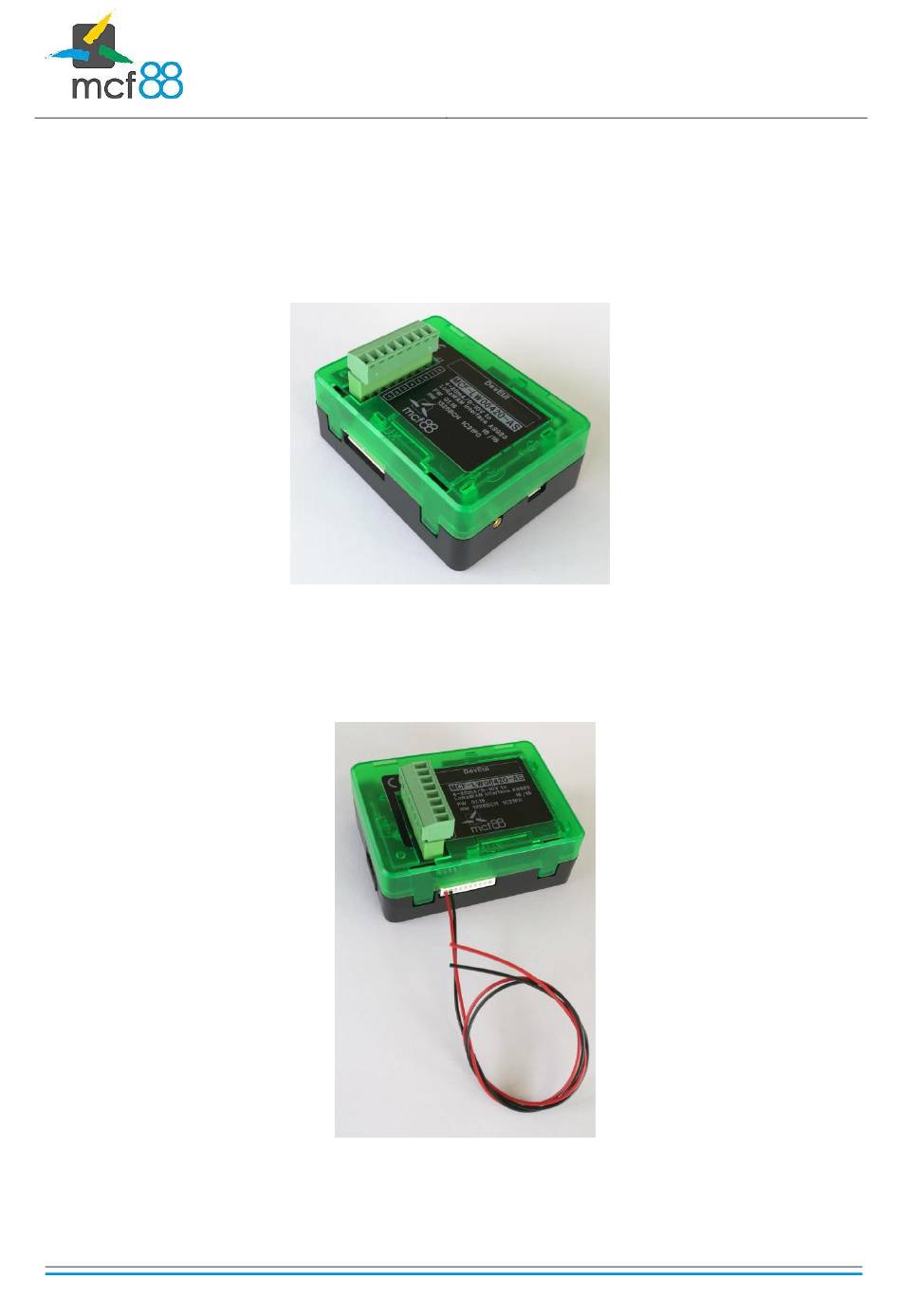

1. DESCRIPTION
MCF-LW06420 is able to read 2 analog inputs 4-20mA and 2 analog inputs 0-10V with a resolution of 12 bit.
The inputs have an insulation of 1000Vdc with respect to the power supply, and are protected against
polarity inversion.
2. CONNECTION OF THE DEVICE
Make the connections as follows:
2.1 Power supply:
➢ red wire: positive power supply (range 10-36Vdc)
➢ black wire: negative power supply
Power can also be supplied by USB.
1 of 5
Manual MCF-LW06420
Rev.1
Advertisement
Table of Contents
Related Manuals for mcf88 MCF-LW06420
Summary of Contents for mcf88 MCF-LW06420
- Page 1 Rev.1 1. DESCRIPTION MCF-LW06420 is able to read 2 analog inputs 4-20mA and 2 analog inputs 0-10V with a resolution of 12 bit. The inputs have an insulation of 1000Vdc with respect to the power supply, and are protected against polarity inversion.
- Page 2 Manual MCF-LW06420 Rev.1 2.2 Analog inputs Name Descriprion Range Resolution J1.1 Analog input 1 4-20mA 12 bit J1.2 Common J1.3 Analog input 2 4-20mA 12 bit J1.4 Common J1.5 Analog input 3 0-10V 12 bit J1.6 Common J1.7 Analog input 4...
- Page 3 Manual MCF-LW06420 Rev.1 Connection examples for current inputs: 1 sensor 2 sensors 3 of 5...
- Page 4 NONE: sensor not activated OTAA: needs settings of appkey and appEUI OTAA MCF88: Over the air activation according to mcf88 specifications ABP: needs settings of NwkSkey, AppSkey, DevAddr The device exits factory activated with NONE mode. The devEUI of the device is shown on the product label.
- Page 5 The installation must take place in a place where the LoRaWAN ™ signal coverage is good (SF=7 optimal, SF=12 weak). 6. ORDERING CODE Ordering Code Description MCF-LW06420 4-20mA/0-10V to LoRaWAN interface EU863-870 MCF-LW06420-AS 4-20mA/0-10V to LoRaWAN interface AS923 5 of 5...
