1. DESCRIPTION

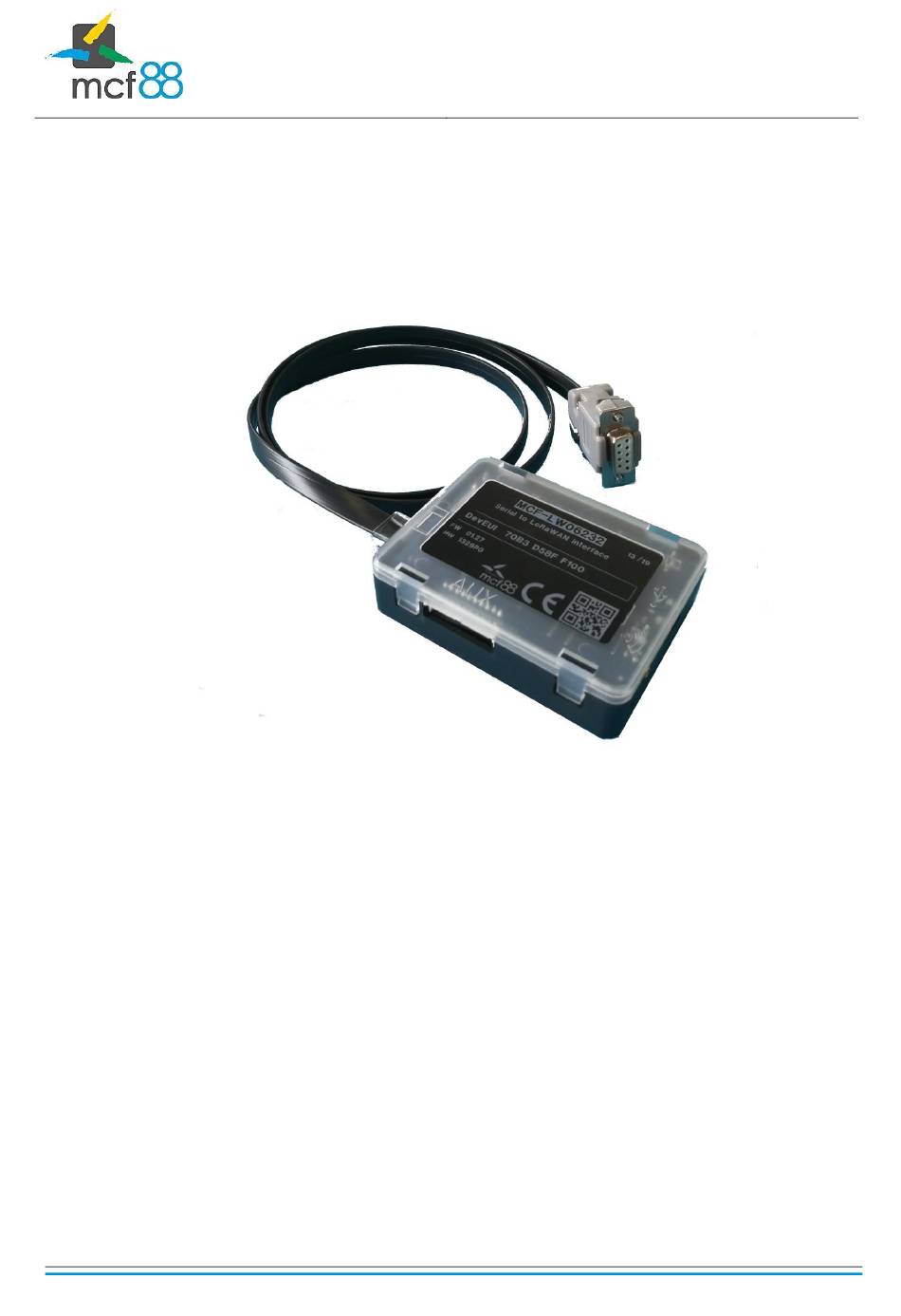

MCF-LW06232 uses the RS232 serial port to send and receive data through the LoRaWAN™ platform. The
device has a proprietary mcf88 protocol (available on request). MCF-LW06232 is a Lora Alliance certified
product.
2. CONNECTION OF THE DEVICE
Connect the RS232 cable to the Data Terminal Equipment (DTE) to be connected the LoRaWAN™ network.
3. POWER-ON OF THE DEVICE
The device switches-on as it's powered by one of the following:
✓ Using the USB interface, by connecting a USB Host or a USB power supply with USB micro B
terminal;
✓ using the AUX connector:
➢ RED wire: positive power supply (range 10-36Vdc)
➢ BLACK wire: negative power supply (ground)
✓ connecting the RS232 cable to a live RS232 port.
1 of 3
Manual MCF-LW06232
Rev.1
Advertisement
Table of Contents
Related Manuals for mcf88 MCF-LW06232
Summary of Contents for mcf88 MCF-LW06232
- Page 1 Manual MCF-LW06232 Rev.1 1. DESCRIPTION MCF-LW06232 uses the RS232 serial port to send and receive data through the LoRaWAN™ platform. The device has a proprietary mcf88 protocol (available on request). MCF-LW06232 is a Lora Alliance certified product. 2. CONNECTION OF THE DEVICE Connect the RS232 cable to the Data Terminal Equipment (DTE) to be connected the LoRaWAN™...
- Page 2 NONE: sensor not activated OTAA: the appkey and AppEUI must be written to the device. OTAA MCF88: Over the air activation according to mcf88 specifications ABP: requires writing to the device of NwkSkey, AppSkey, DevAddr The device exits factory activated with NONE mode.
- Page 3 The installation must take place in a place where the LoRaWAN ™ signal coverage is good (SF=7 optimal, SF=12 weak). Use the provided clip to hold the antenna connector in place, as in the pictures: 7. ORDERING CODE Ordering Code Description MCF-LW06232 Serial to LoRaWAN™ interface EU863-870 MCF-LW06232-AS Serial to LoRaWAN™ interface AS923 3 of 3...
