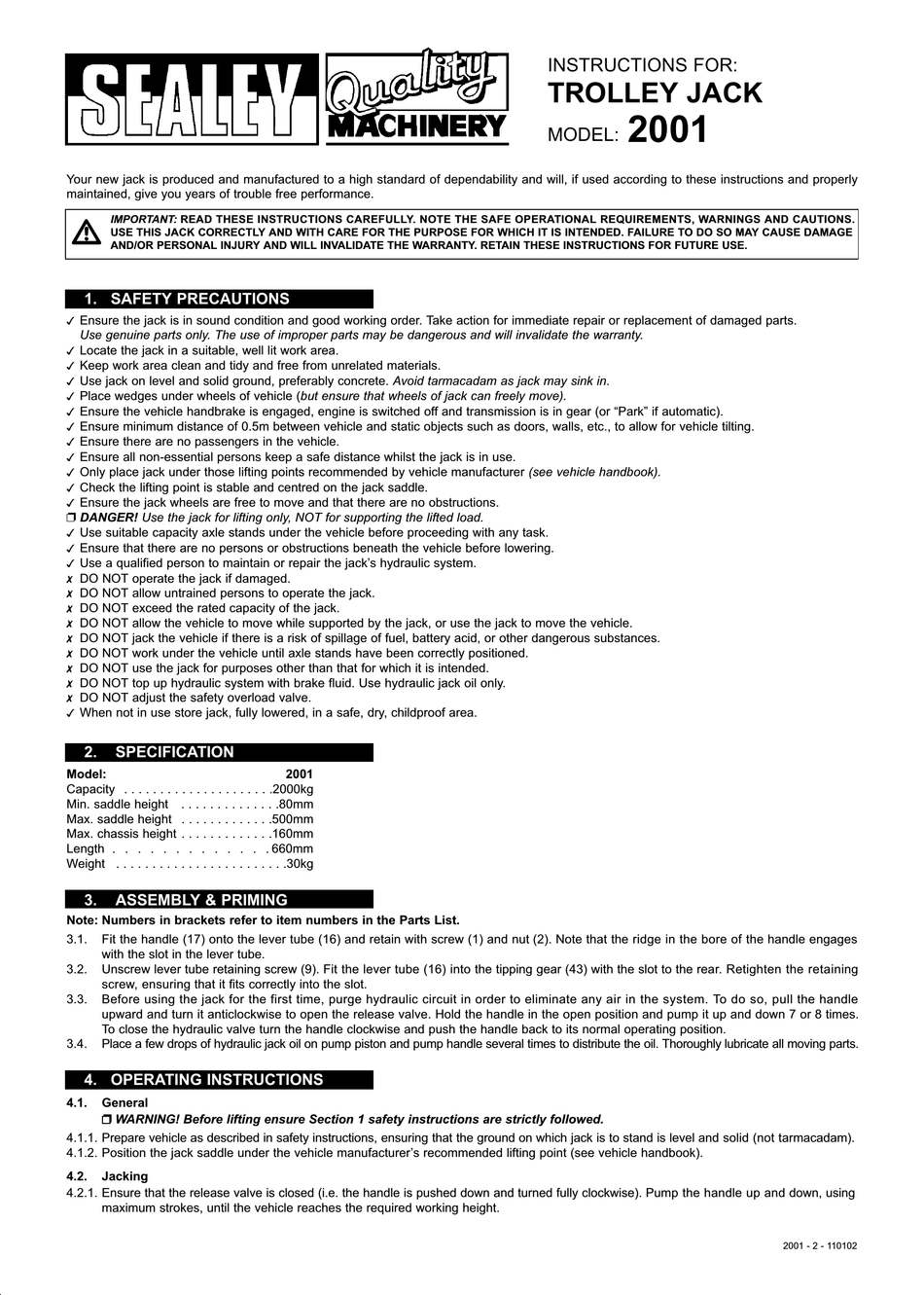

Sealey Quality MACHINERY 2001 Instructions

Your new jack is produced and manufactured to a high standard of dependability and will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THIS JACK CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE.
1. SAFETY PRECAUTIONS
Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts.
!
Use genuine parts only. The use of improper parts may be dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit work area.
!
Keep work area clean and tidy and free from unrelated materials.
!
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
!
Place wedges under wheels of vehicle (but ensure that wheels of jack can freely move).
!
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or “Park” if automatic).
!
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle tilting.
!
Ensure there are no passengers in the vehicle.
!
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
!
Only place jack under those lifting points recommended by vehicle manufacturer (see vehicle handbook).
!
Check the lifting point is stable and centred on the jack saddle.
!
Ensure the jack wheels are free to move and that there are no obstructions.
!
F DANGER! Use the jack for lifting only, NOT for supporting the lifted load.
Use suitable capacity axle stands under the vehicle before proceeding with any task.
!
Ensure that there are no persons or obstructions beneath the vehicle before lowering.
!
Use a qualified person to maintain or repair the jack’s hydraulic system.
!
DO NOT operate the jack if damaged.
%
DO NOT allow untrained persons to operate the jack.
%
DO NOT exceed the rated capacity of the jack.
%
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
%
DO NOT jack the vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
%
DO NOT work under the vehicle until axle stands have been correctly positioned.
%
DO NOT use the jack for purposes other than that for which it is intended.
%
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
%
DO NOT adjust the safety overload valve.
%
When not in use store jack, fully lowered, in a safe, dry, childproof area.
!
2. SPECIFICATION
Model:
Capacity . . . . . . . . . . . . . . . . . . . . .2000kg
Min. saddle height . . . . . . . . . . . . . .80mm
Max. saddle height . . . . . . . . . . . . .500mm
Max. chassis height . . . . . . . . . . . . .160mm
Length . . . . . . . . . . . . . 660mm
Weight . . . . . . . . . . . . . . . . . . . . . . . .30kg
3. ASSEMBLY & PRIMING
Note: Numbers in brackets refer to item numbers in the Parts List.
3.1. Fit the handle (17) onto the lever tube (16) and retain with screw (1) and nut (2). Note that the ridge in the bore of the handle engages
with the slot in the lever tube.
3.2. Unscrew lever tube retaining screw (9). Fit the lever tube (16) into the tipping gear (43) with the slot to the rear. Retighten the retaining
screw, ensuring that it fits correctly into the slot.
3.3. Before using the jack for the first time, purge hydraulic circuit in order to eliminate any air in the system. To do so, pull the handle
upward and turn it anticlockwise to open the release valve. Hold the handle in the open position and pump it up and down 7 or 8 times.
To close the hydraulic valve turn the handle clockwise and push the handle back to its normal operating position.
3.4. Place a few drops of hydraulic jack oil on pump piston and pump handle several times to distribute the oil. Thoroughly lubricate all moving parts.
4. OPERATING INSTRUCTIONS
4.1. General
F WARNING! Before lifting ensure Section 1 safety instructions are strictly followed.
p
4.1.1. Prepare vehicle as described in safety instructions, ensuring that the ground on which jack is to stand is level and solid (not tarmacadam).
4.1.2. Position the jack saddle under the vehicle manufacturer’s recommended lifting point (see vehicle handbook).
4.2. Jacking
4.2.1. Ensure that the release valve is closed (i.e. the handle is pushed down and turned fully clockwise). Pump the handle up and down, using
maximum strokes, until the vehicle reaches the required working height.
p
2001
INSTRUCTIONS FOR:
TROLLEY JACK
2001
MODEL:
2001 - 2 - 110102
