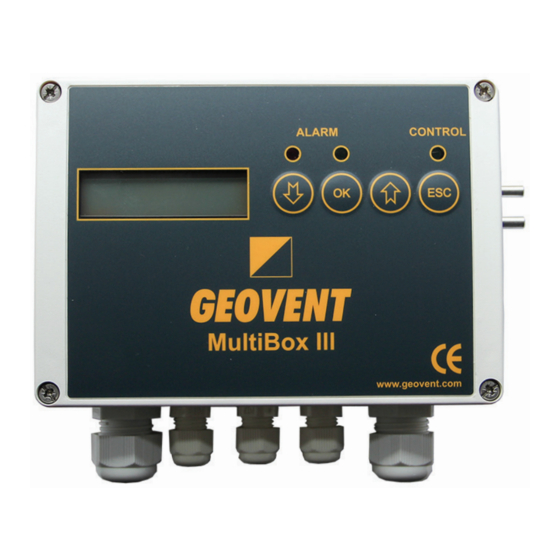

- Page 1 I N S T R U C T I O N S M A N U A L M U L T I B O X I I I source capture control panel www.geovent.com Version 1.0 09.03.2021...
-
Page 3: General Safety Precautions
1.0 General safety precautions Tabel of general MultiBox III parameters P75 Service timer 0-36 0=Off 1-36=months IMPORTANT – Please study all the instructions before between service mounting and commissioning. P76 Call service Max 16 Press and hold arrow letters down when connecting... -
Page 4: Parameter List
After start-up the following adjustments are possible: • Adjust PID regulator: higher P06-value will speed up the regulator, and higher P07-value will moderate the regulator and reduce instability • Adjust P22 and P23 to max Room and Inlet air flow •... - Page 5 ABB ACS 150 ABB ACS 150 Quick guide for Quick guide for frequency inverter setup. frequency inverter setup. If Multibox II is used, control mode If Multibox II is used, control mode is set at ”REM”. is set at ”REM”. ”LOC”...
-
Page 6: Operation Limits
Motor data setup Setup the motor´s rated voltage as indicated on the motor label. For example 400V Setup the motor´s rated current as indicated on the motor label. For example 2,6A Setup the motor´s rated frequency as indicated on the motor label. For example 50Hz Setup the motor´s rated speed as indicated on the motor label. - Page 7 This is a quick guide for setting up the frequency inverter with the minimu required settings. These settings apply to a typical Geovent product constellation, and are not directly applicable for use with other products. For settings of other parameters/macros and detailed explanation hereof, see the instructions manual from ABB.
-
Page 8: Access Setup Menu
ABB ACH 580 Quick guide for Frequency inverter setup. Function keys If Multibox III is used, set control mode to ”AUTO”. ”Hand” = Control using front panel. ”Auto” = External PID control. Access setup menu. Press ”menu” Select ”Primary settings”. - Page 9 Motor data setup In ”primary settings” select ”motor”. Setup the motor´s rated current as indicated on the motor 9906 Current nameplate. For exampel 2,6A Setup the motor´s rated speed as indicated on the motor 9909 Speed nameplate. For exampel 2830 rpm Setup the motor´s rated voltage as indicated on the motor 9907 Voltage...
- Page 10 This is a quick guide for setting up the frequency inverter with the minimu required settings. These settings apply to a typical Geovent product constellation, and are not directly applicable for use with other products. For settings of other parameters/macros and detailed explanation hereof, see the instructions manual from ABB.
- Page 13 Geovent. User liability In order for Geovent to be capable of granting the de- clared warranty, the user/fitter must follow this Instruction Manual in all respects.
- Page 14 Declaration of Conformity HOVEDGADEN 86 • DK-8831 LØGSTRUP (+45) 8664 2211 • salg@geovent.dk Additional information: The manufacturer: GEOVENT A/S Hovedgaden 86 The product meets the specifications in EMC Directive DK-8831 Løgstrup 2014/30/EU, Low Voltage Directive 2014/35/EC and is CE-marked. hereby declares that: The product is testet for normal use.
- Page 16 HOVEDGADEN 86 • DK-8831 LØGSTRUP (+45) 8664 2211 • salg@geovent.dk...
