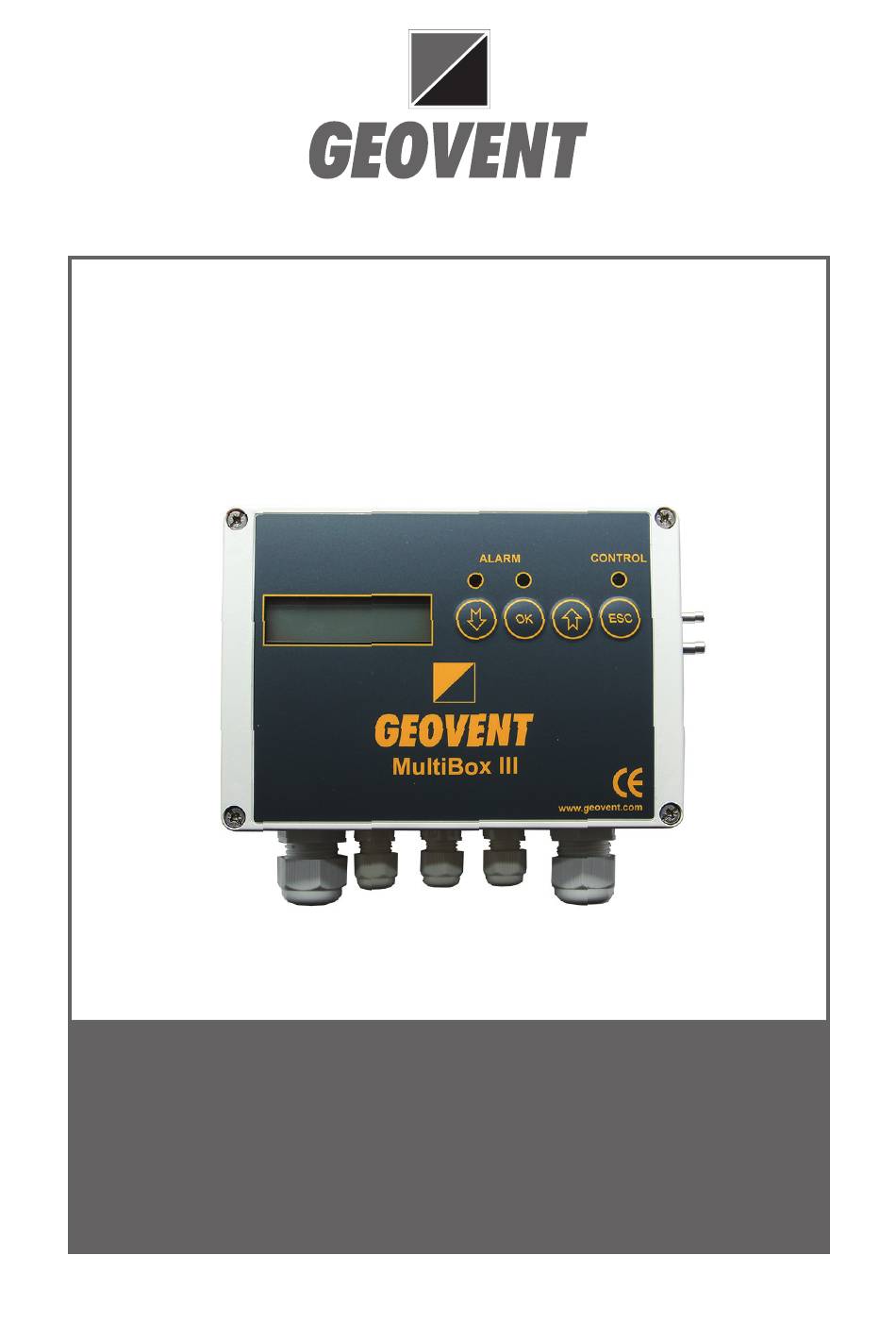

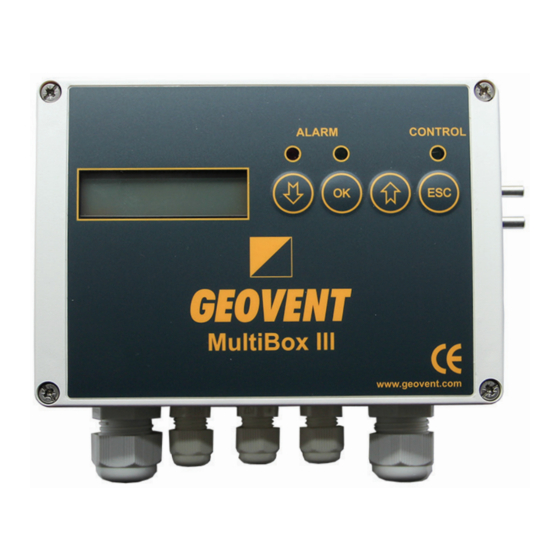

- Page 1 I N S T R U C T I O N S M A N U A L M U L T I B O X I I I source capture control panel www.geovent.dk Version 1.0 17.05.18...
-
Page 3: General Safety Precautions
1.0 General safety precautions Tabel of general FV56X parameters P75 Service timer 0-36 0=Off 1-36=months IMPORTANT – Please study all the instructions before between service mounting and commissioning. P76 Call service Max 16 Press and hold arrow letters down when connecting Please keep these instructions in a safe place and main power to type instruct all users in the function and operation of the... -
Page 4: Parameter List
After start-up the following adjustments are possible: • Adjust PID regulator: higher P06-value will speed up the regulator, and higher P07-value will moderate the regulator and reduce instability • Adjust P22 and P23 to max Room and Inlet air flow •... - Page 5 ABB ACS 150 Quick guide for frequency inverter setup. If Multibox II is used, control mode is set at ”REM”. ”LOC” Control using front panel. ”REM” = External PID control. ”AI” adjustment type is set to ”U” on the micro switch (0-10V) Access parameter list.
-
Page 6: Operation Limits
Motor data setup Setup the motor´s rated voltage as indicated on the motor label. For example 400V Setup the motor´s rated current as indicated on the motor label. For example 2,6A Setup the motor´s rated frequency as indicated on the motor label. For example 50Hz Setup the motor´s rated speed as indicated on the motor label. - Page 7 This is a quick guide for setting up the frequency inverter with the minimu required settings. These settings apply to a typical Geovent product constellation, and are not directly applicable for use with other products. For settings of other parameters/macros and detailed explanation hereof, see the instructions manual from ABB.
- Page 8 ABB ACH 580 Quick guide til opsætning af frekvensomformer. Funktionstaster. : Styres der med Multibox III skal styringsformen indstilles til ”AUTO”. ”Hand” = Styring via. frontpanelet. ”Auto” = Ekstern PID styring. Adgang til parameterlisten. Tryk menu. Vælg ”Primære indstillinger”. Her kan du vælge hvad du vil indstille, på de følgende...
- Page 9 Opsætning af motordata. Under ”primære indstillinger” vælges motor. Her indstilles motorens nominelle strøm som angivet på Strøm mærkepladen på motoren. Feks. 2,6A Her indstilles motorens nominelle hastighed som angivet på Hastighed mærkepladen på motoren. Feks. 2830 o/m Her indstilles motorens nominelle spænding som angivet på Spænding mærkepladen på...
- Page 10 Som standard er den indstillet til DI4. Vi anbefaler at fjerne fluebenet. Dette er en quick guide til indstilling af de som minimum krævede indstillinger. Disse indstillinger er for en typisk standard Geovent produkt sammensætning, og kan ikke bruges direkte sammen med andre produkter.
- Page 13 Geovent. User liability In order for Geovent to be capable of granting the de- clared warranty, the user/fitter must follow this Instruction Manual in all respects.
- Page 14 Declaration of Conformity HOVEDGADEN 86 • DK-8831 LØGSTRUP (+45) 8664 2211 • salg@geovent.dk Additional information: The manufacturer: GEOVENT A/S Hovedgaden 86 The product meets the specifications in EMC Directive DK-8831 Løgstrup 2014/30/EU, Low Voltage Directive 2014/35/EC and is CE-marked. hereby declares that: The product is testet for normal use.
