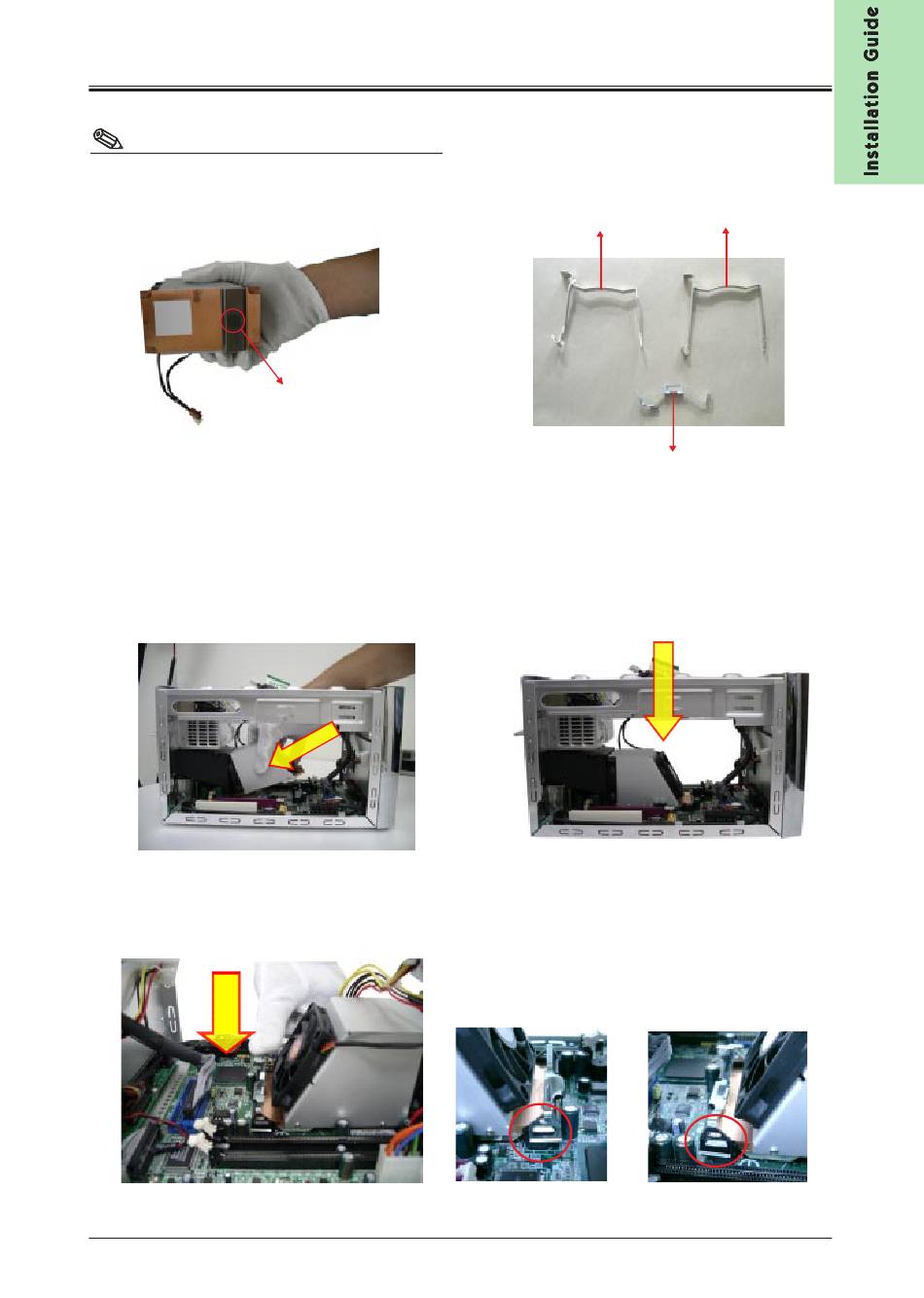

3.3 Installation of CPU fan

3.3 Installation of CPU fan 3.3 Installation of CPU fan
3.3 Installation of CPU fan 3.3 Installation of CPU fan
Please follow the procedure shown below to install CPU fan for either Intel P4 or AMD
K7 CPU.
Conducting Pad
Note: The black conducting pad is not allowed
to remove from the bottom of the heat
sink.
1. Put CPU Cooler on top of CPU.
( Match CPU Cooler vertical side to the docking and gently leave it on top of CPU)
2. Insert short clip by clicking on the retension module.
Hardware Installation
P4 CPU Long chip
* Clicking on the both side.
~ 15 ~
K7 CPU Long chip
short chip
