3.2 Installation of CPU
3.2 Installation of CPU
3.2 Installation of CPU
3.2 Installation of CPU
3.2 Installation of CPU

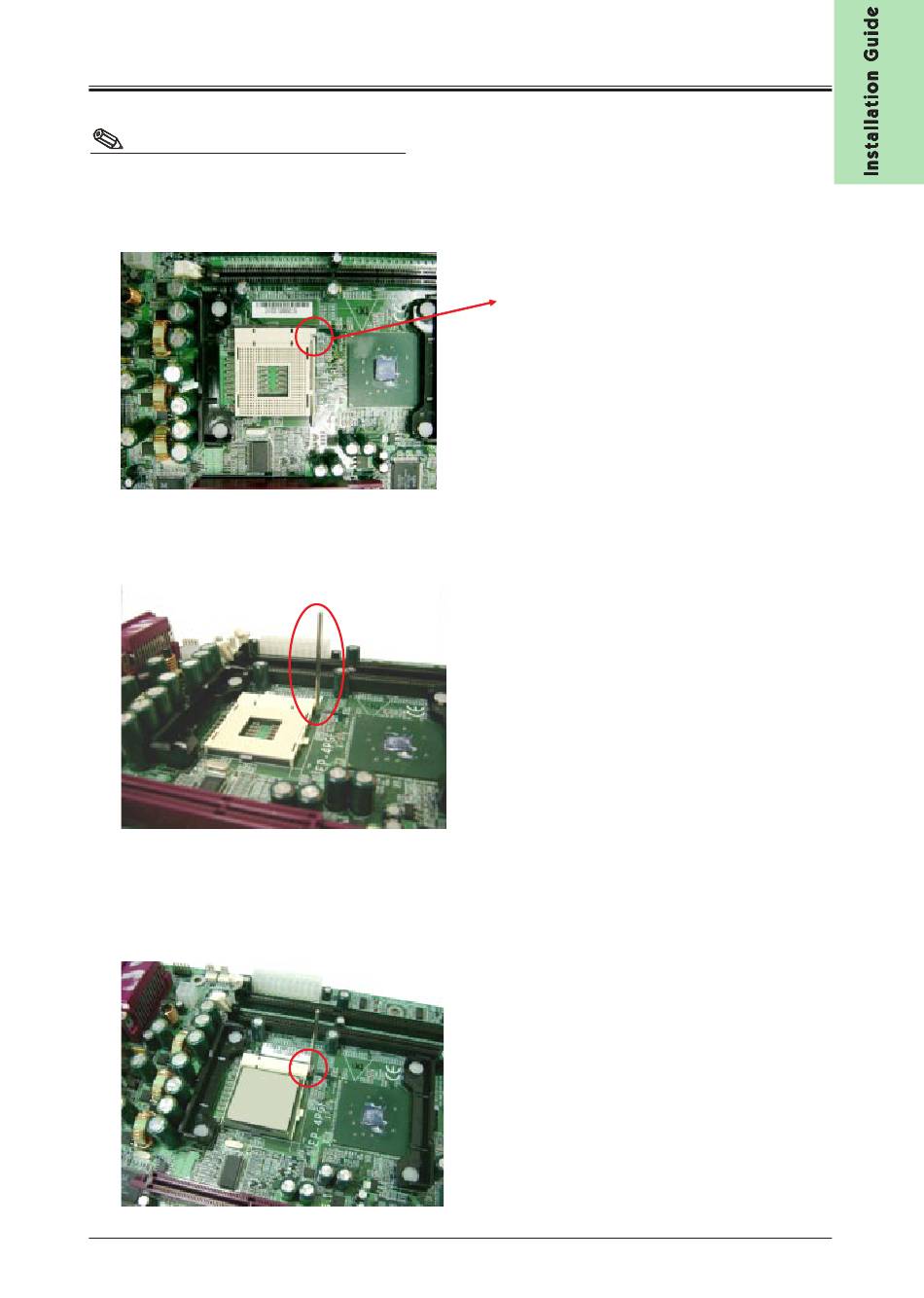

You need to locate CPU pin 1 position before installing CPU. The pin1 location is shown
below.
1. Pull the CPU socket handle up to vertical position.
2. Insert CPU properly.
CPU pin 1 (un-sharp corner) on socket pin 1 as shown above.
Hardware Installation
Pin 1
* Unless the handle is vertically positioned, P4
CPU will not be properly inserted.
* Pentium
®
pin 1 positions are matched. Stop insertion if
CPU can't be put in easily.
