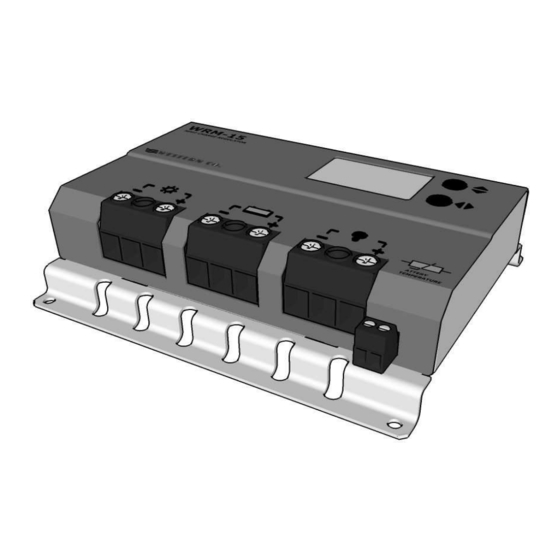

Il WRM-15 è una soluzione completa per la realizzazione di impianti
fotovoltaici ad isola, per alimentare sistemi di segnaletica stradale, sistemi di
illuminazione, per alimentare piccole utenza a bassa tensione e per la ricarica
di batterie all'interno dei camper. Questa modello di regolatore di carica
implementa un circuito di ricerca della massima potenza di pannello (MPPT) :
indipendentemente dalla tensione di batteria e dal suo stato di carica il
regolatore fa lavorare sempre il modulo PV nel suo punto di massima potenza
massimizzando l'energia estratta dal modulo e caricata in batteria. I regolatori
di carica di tipo PWM richiedono l'impiego di moduli PV con N°36 celle per la
ricarica di batteria a 12V, e moduli a 72 celle per la ricarica di batterie a 24V;
questo vincolo di progetto non è più necessario grazie al circuito MPPT, si
possono impiegare anche nei sistemi ad isola i più economici moduli
normalmente impiegati per sistemi connessi a rete con numero di celle diverso
da 36 o 72. Si possono inoltre impiegare i moduli in silicio amorfo
normalmente non adatti ai regolatori PWM.
I vari programmi di gestione carico selezionabili dall'utente rendono il WRM-15
la soluzione completa in molte applicazioni; ad esempio per alimentare
telecamere che debbono funzionare solo di giorno, oppure per alimentare
lampeggiatori o segnalazioni stradali che debbono funzionare solo di notte o
per alimentare sistemi di illuminazione che debbono funzionare per un
determinato numero di ore per notte. Il WRM-15 rileva lo stato giorno/notte in
base alla tensione di pannello, quindi non è necessario collegare ulteriori
sensori al regolatore. Un ampio display visualizza lo stato di funzionamento del
regolatore sia attraverso icone semplici ed intuitive sia visualizzando il valore
della corrente di ricarica, la tensione di batteria, l'energia prodotta dal modulo
PV, la corrente del carico e l'energia consumata dal carico.
This document is the property of WESTERN CO. Srl - All rights are reserved - Reproduction and use of information contained within this document is forbidden without the written consent of WESTERN CO. Srl

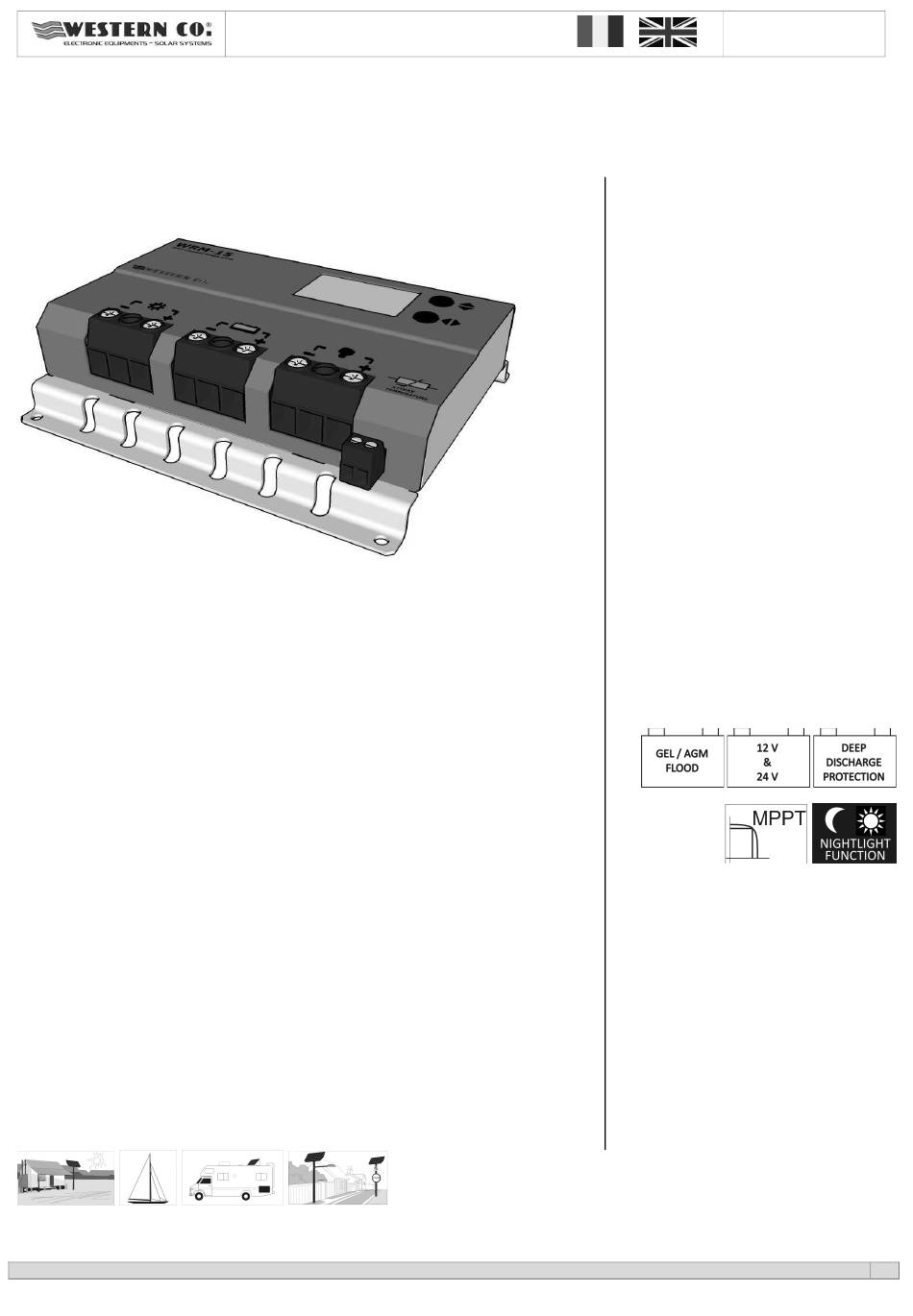

WRM-15 Manuale installazione
REGOLATORE DI CARICA BATTERIA
DA MODULO FOTOVOLTAICO
WRM-15
Rev. 1.2
09-10-2012
• Ricarica MPPT
• Ampio range di tensione su ingresso pannello
V
0-100V
PAN
• Massima potenza di pannello 225W per batteria
a 12V e 450W per batteria a 24V
• Diodo di blocco integrato
• Per batterie ermetiche, GEL ed acido libero
• Tensione di ricarica compensata in temperatura
• Auto-detect tensione di batteria 12V / 24V
• 18 programmi per gestione carico
• LCD 48 simboli per interfaccia utente
• Protezione batteria scarica
• Protezione sovra-temperatura
• Protezione inversione polarità batteria
• Protezione sovraccarico su uscita
• Contenitore in metallico IP20
