Section 4-2 Mounting Assembly - Power Step PSA-EX3600-FRS Manual

FOLDING RETRACTABLE STAIRWAY
To suit Hitachi EX3600 Excavator

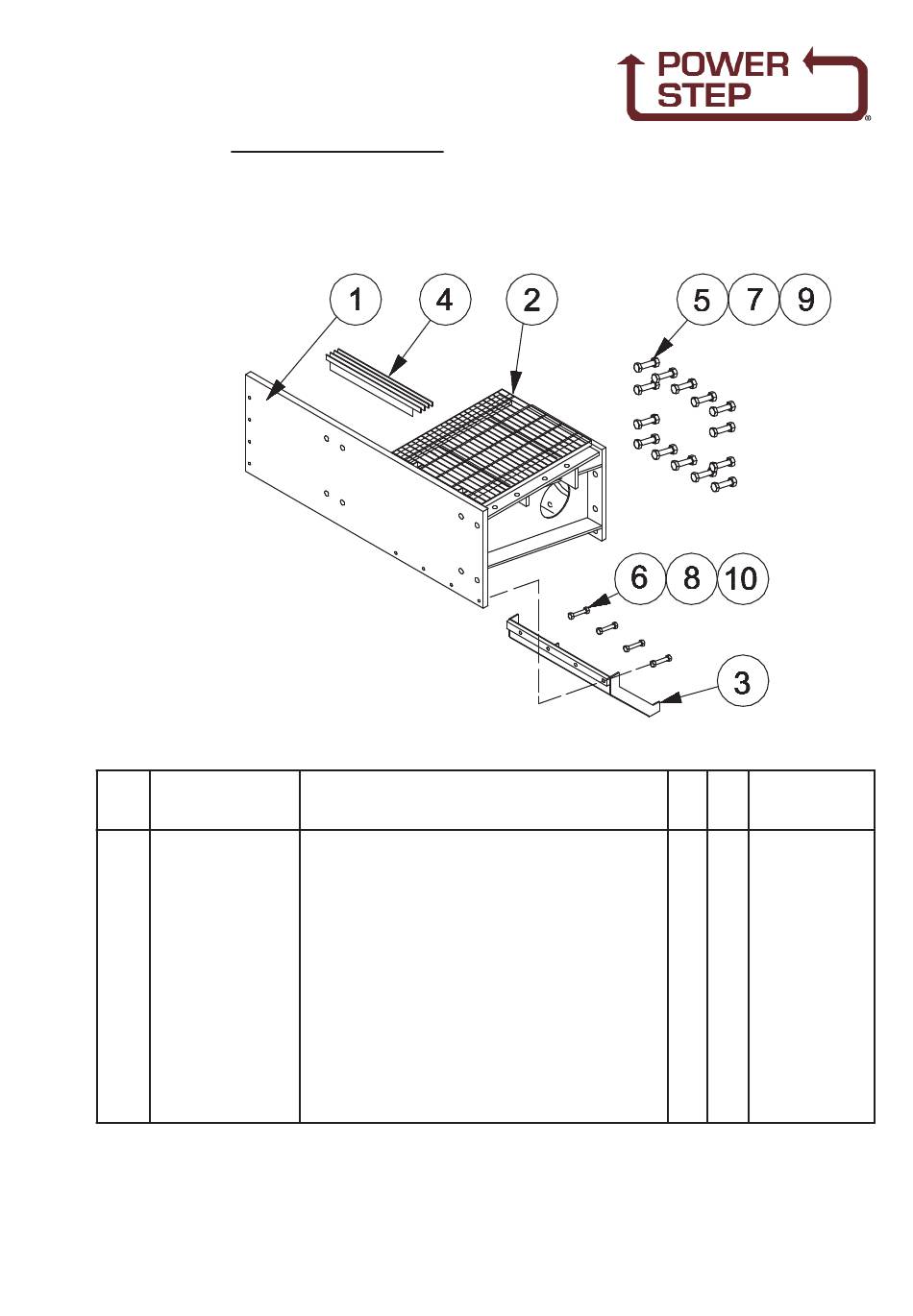

Section 4-2 Mounting Assembly

Parts List
Item Part No.
1 PS-21562
2 PS-21567
3 PS-21566
4 PS-21575
5 PS-M24X100ZP
6 CPS-M12X85ZP
7 PS-M24NZP
8 CPS-M12NZP
9 PS-M24WH
10 CPS-M12WH
EX3600-FRS 3-8-15
Part Name
MOUNTING ASSEMBLY
FLOOR GRID
SKIRT
FLOORING INFILL
BOLT-M24 x 100
BOLT-M12 x 85
NUT M24
NUT M12
WASHER - HARDENED- M24
WASHER - HARDENED- M12
Qty
1
1
1
1
14
4
14
4
28
8
Pg11
