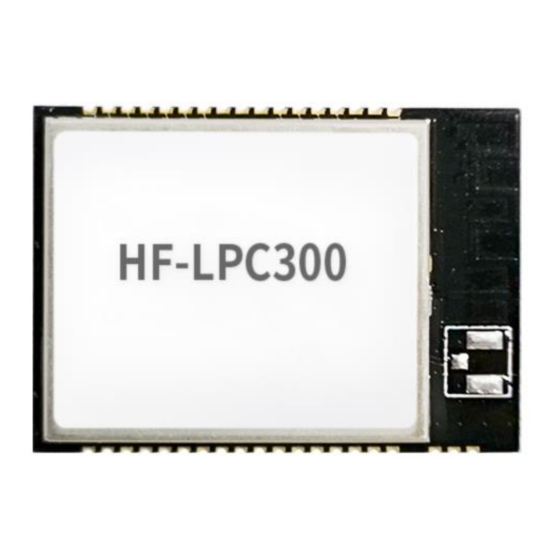

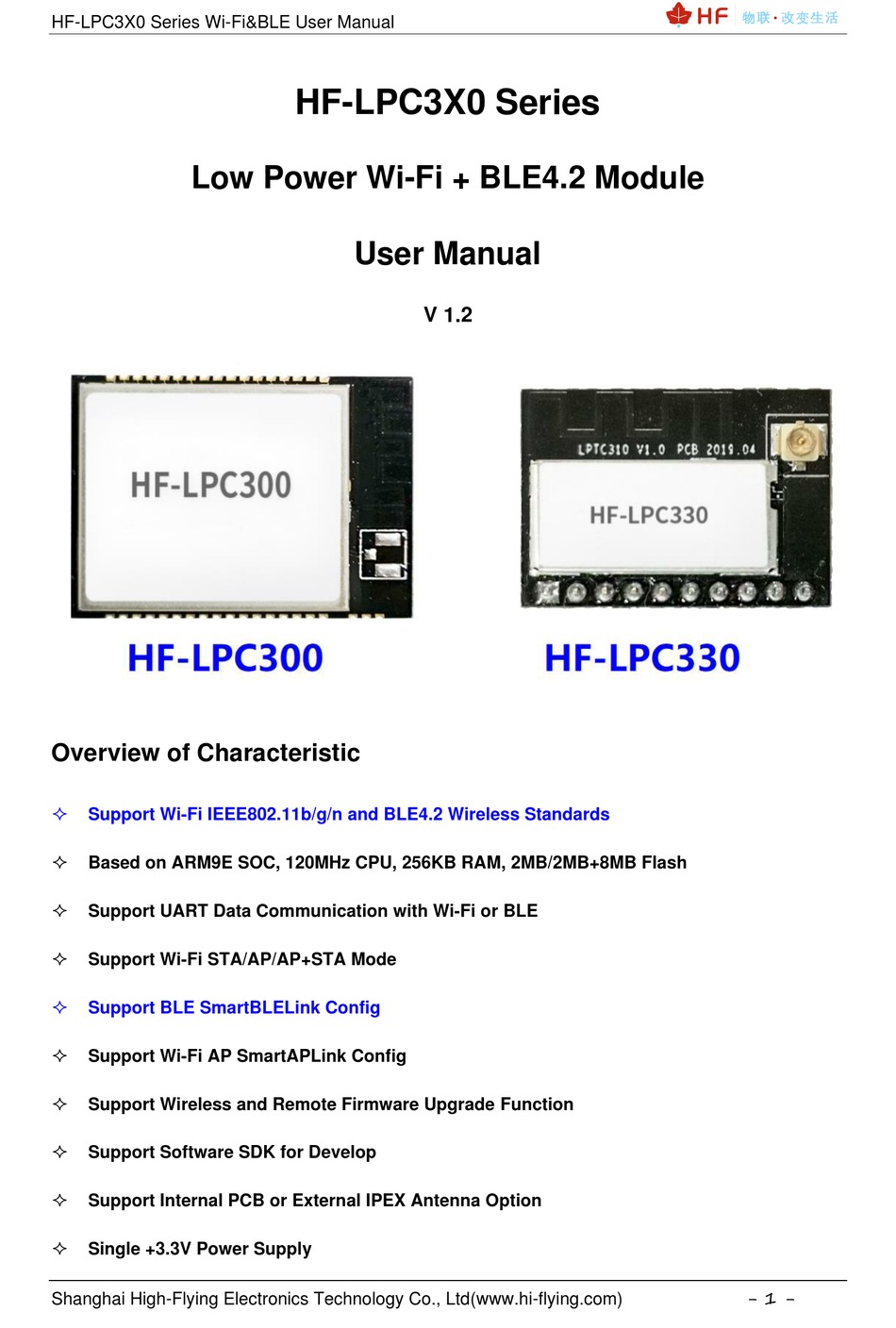

HF-LPC3X0 Series Wi-Fi&BLE User Manual
Low Power Wi-Fi + BLE4.2 Module
Overview of Characteristic
Support Wi-Fi IEEE802.11b/g/n and BLE4.2 Wireless Standards
Based on ARM9E SOC, 120MHz CPU, 256KB RAM, 2MB/2MB+8MB Flash
Support UART Data Communication with Wi-Fi or BLE
Support Wi-Fi STA/AP/AP+STA Mode
Support BLE SmartBLELink Config
Support Wi-Fi AP SmartAPLink Config
Support Wireless and Remote Firmware Upgrade Function
Support Software SDK for Develop
Support Internal PCB or External IPEX Antenna Option
Single +3.3V Power Supply
Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
HF-LPC3X0 Series
User Manual
V 1.2
- 1 -
