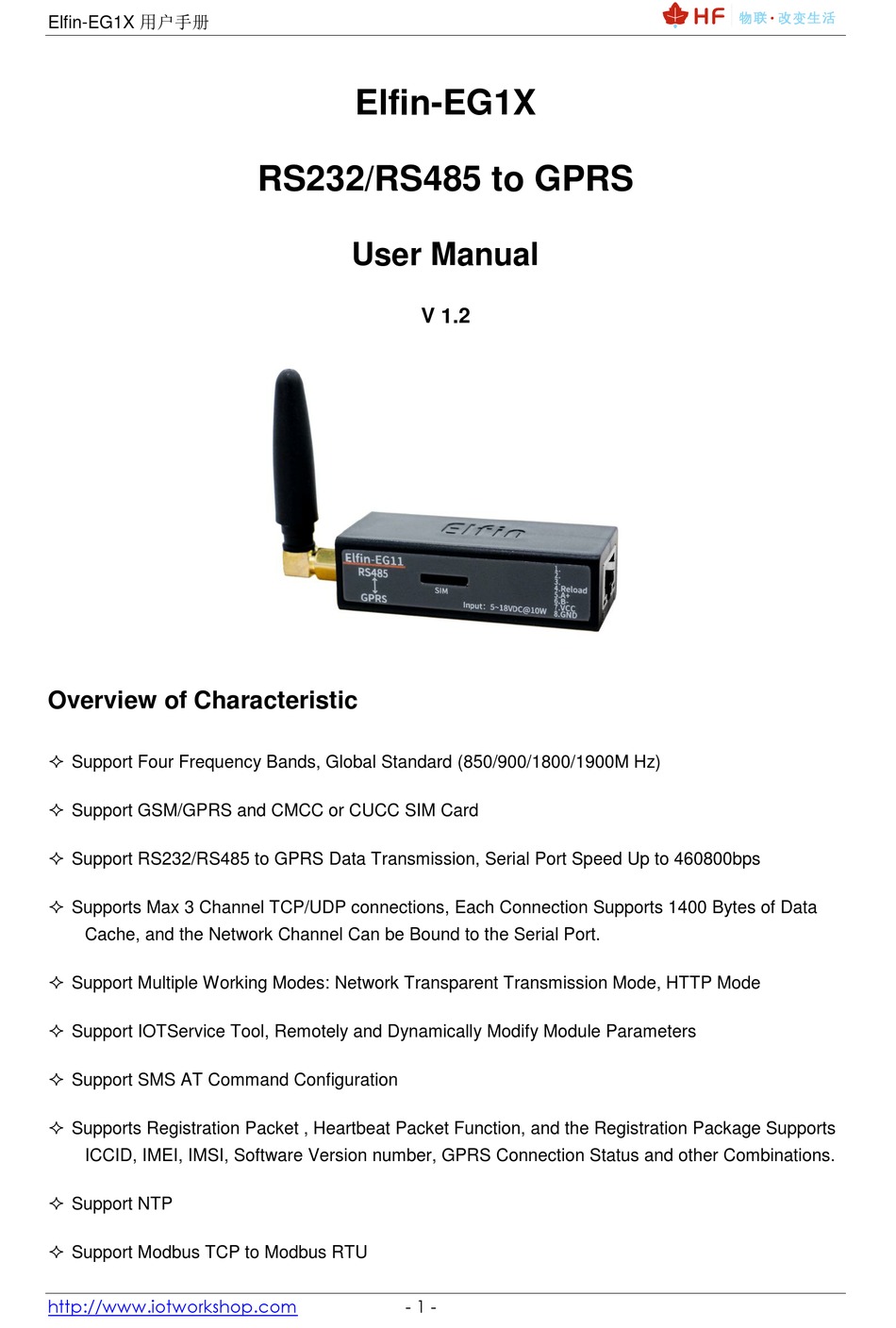

Elfin-EG1X 用户手册
Overview of Characteristic
Support Four Frequency Bands, Global Standard (850/900/1800/1900M Hz)
Support GSM/GPRS and CMCC or CUCC SIM Card
Support RS232/RS485 to GPRS Data Transmission, Serial Port Speed Up to 460800bps
Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data
Cache, and the Network Channel Can be Bound to the Serial Port.
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support SMS AT Command Configuration
Supports Registration Packet , Heartbeat Packet Function, and the Registration Package Supports
ICCID, IMEI, IMSI, Software Version number, GPRS Connection Status and other Combinations.
Support NTP
Support Modbus TCP to Modbus RTU
http://www.iotworkshop.com

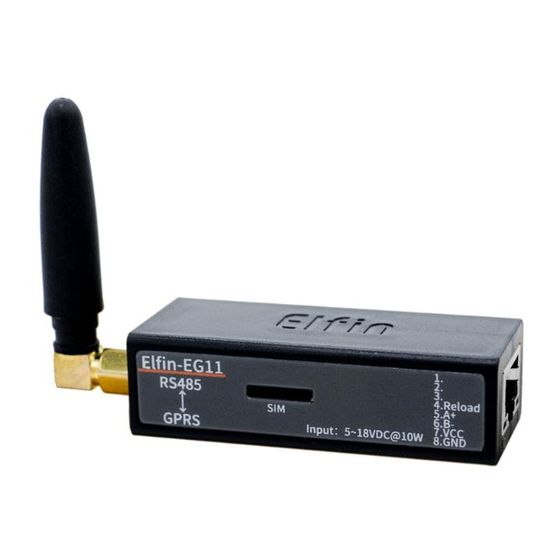

Elfin-EG1X
RS232/RS485 to GPRS
User Manual
V 1.2
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HF Elfin-EG1 Series
Summary of Contents for HF Elfin-EG1 Series
- Page 1 Elfin-EG1X 用户手册 Elfin-EG1X RS232/RS485 to GPRS User Manual V 1.2 Overview of Characteristic Support Four Frequency Bands, Global Standard (850/900/1800/1900M Hz) Support GSM/GPRS and CMCC or CUCC SIM Card Support RS232/RS485 to GPRS Data Transmission, Serial Port Speed Up to 460800bps ...
- Page 2 Elfin-EG1X 用户手册 Support IOTBridge for Remote Control and Config. Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow charge. Support Serial Port, Network OTA Upgrade Firmware. Size: 61 x 26 x 17.8mm ...
-
Page 3: Table Of Contents
Elfin-EG1X 用户手册 TABLE OF CONTENTS TABLE OF CONTENTS ........................3 LIST OF FIGURES ..........................4 LIST OF TABLES ..........................4 PRODUCT OVERVIER ......................5 1.1. General Description ......................5 1.2. Device Parameters ......................5 1.3. Key Applications ......................6 HARDWARE INTRODUCTION ................... 8 2.1. -
Page 4: List Of Figures
Elfin-EG1X 用户手册 LIST OF FIGURES Figure 1. Elfin-EG11 Appearance ........................8 Figure 2. Elfin-EG10 Appearance ........................8 Figure 3. Elfin-EG10 RJ45 Interface Pin ......................9 Figure 4. Elfin-EG11 RJ45 Interface Pin ....................... 10 Figure 5. Elfin-EG1X Mechanical Size ......................11 Figure 6. -
Page 5: Product Overvier
Elfin-EG1X 用户手册 1. PRODUCT OVERVIER 1.1. General Description The Elfin-EG1X can meet almost all M2M needs, including automotive and personal tracking services, wireless POS machines, smart metering, industrial PDAs, shared bikes, shared cars and more. The Elfin-EG1X module is an Ethernet RJ45 interface serial server with ultra-small size: 61 x 26 x 17.8mm Elfin-EG1X Internal Frame Diagram 1.2. -
Page 6: Key Applications
Elfin-EG1X 用户手册 GPRS Data Downlink Transmission: Up to 85.6 kbps GPRS Date Features GPRS Data Uplink Transmission: Up to 85.6 kbps Encoding Format: CS-1, CS-2, CS-3 and CS-4 GPRS Antenna Interface 50Ω Characteristic Impedance Serial Port Port Number Interface Standard RS232/RS485 Data Bits 7, 8... - Page 7 Elfin-EG1X 用户手册 ⚫ Production asset tracking and monitoring ⚫ Security field ⚫ Industrial sensors and controllers ⚫ Health medical equipment ⚫ ATM equipment ⚫ Data acquisition equipment ⚫ UPS power management equipment ⚫ Telecommunication equipment ⚫ Data display device ⚫ Hand-held device ⚫...
-
Page 8: Hardware Introduction
Elfin-EG1X 用户手册 2. HARDWARE INTRODUCTION Elfin-EG1X is a GPRS solution for serial device networking. Data transmission via GPRS makes product integration very easy. This product meets EMC Class B security level and can pass relevant certification tests in various countries. 2.1. -
Page 9: Elfin-Eg10 Pin Definition
Elfin-EG1X 用户手册 2.2. Elfin-EG10 Pin Definition Figure 3. Elfin-EG10 RJ45 Interface Pin Elfin-EG10 Interface Definition Description Net Name Signal Type Notes Reserved GPIO GPIO Reserved GPIO GPIO Reserved GPIO GPIO Restore to nReload Default high. Long press this button Factory ("Low">3s) and loose to make the module restore to factory setting. -
Page 10: Elfin-Eg11 Pin Definition
Elfin-EG1X 用户手册 2.3. Elfin-EG11 Pin Definition Figure 4. Elfin-EG11 RJ45 Interface Pin Elfin-EG11 Interface Definition Description Net Name Signal Type Notes TTL Voltage Debug TX HOST_TXD TTL Voltage Debug RX HOST_RXD Reserved GPIO GPIO Restore to nReload Default high. Long press this button Factory ("Low">3s) and loose to make the module restore to factory setting. -
Page 11: Rs485 Interface
Elfin-EG1X 用户手册 2.5. RS485 Interface RS485 use two wire links, A(DATA+), B(DATA-). Connect A(+) to A(+), B(-) to B(-) for communication. Suggest to connect GND together when interference is very severe. The RS485 interface support maximum 32 485 device, device. The cable maximum length is 1200 meters. -
Page 12: Rj45 4Pin Connector
Elfin-EG1X 用户手册 Figure 6. RJ45 8PIN Connector Figure 7. EG10+8PIN Connector Figure 8. EG11+8PIN Connector 2.8. RJ45 4PIN Connector RJ45 4PIN Connector Type Order: 10810001002 http://www.iotworkshop.com - 12 -... -
Page 13: Figure 9. Rj45 4Pin Connector
Elfin-EG1X 用户手册 Figure 9. RJ45 4PIN Connector Figure 10. EG10 +4PIN Connector Figure 11. EG11+4PIN Connector http://www.iotworkshop.com - 13 -... -
Page 14: Eg10 Interface Conversion Cable
Elfin-EG1X 用户手册 2.9. EG10 Interface Conversion Cable Figure 12. Interface Conversion Cable May also make cable according to the following picture. http://www.iotworkshop.com - 14 -... -
Page 15: Eg11 Interface Conversion Cable
Elfin-EG1X 用户手册 Figure 13. Cable Manufacture Guide 2.10. EG11 Interface Conversion Cable Figure 14. Interface Conversion Cable 2.11. Fixed Bracket Figure 15. Fixed Bracket http://www.iotworkshop.com - 15 -... -
Page 16: Rail Bracket
Elfin-EG1X 用户手册 2.12. Rail Bracket Figure 16. Rail Bracket 2.13. Bracket Figure 17. Bracket Size http://www.iotworkshop.com - 16 -... -
Page 17: Figure 18. Bracket Install Picture
Elfin-EG1X 用户手册 Figure 18. Bracket Install Picture http://www.iotworkshop.com - 17 -... -
Page 18: Rj45 Transform Connector
Elfin-EG1X 用户手册 2.14. RJ45 Transform Connector Figure 19. RJ45 Transform Connector 2.15. Product Installation Figure 20. Product Installation http://www.iotworkshop.com - 18 -... -
Page 19: Evk
Elfin-EG1X 用户手册 2.16. EVK EVK indluce one Elfin device, one RJ45 Connector and one screw driver. Figure 21. EVK Package 2.17. Product Order Information Based on customers detailed requirements, we provide different configuration Elfin-EG1X, details as below: http://www.iotworkshop.com - 19 -... -
Page 20: Figure 22. Elfin-Eg1X Product Order Information
Elfin-EG1X 用户手册 Figure 22. Elfin-EG1X Product Order Information http://www.iotworkshop.com - 20 -... -
Page 21: Appendix A: Contact Information
Elfin-EG1X 用户手册 APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Address: Room1002 , #1Building, No.3000 Longdong Avenue, Pudong District, Shanghai, China 201202 Website: www.iotworkshop.com www.hi-flying.com Contact: Sales：sales@iotworkshop.com Support：support@iotworkshop.com Service：service@iotworkshop.com Business：business@iotworkshop.com ---------------------------------------------------------------------------- ------------------------------- For more information about us, please visit our website: www.iotworkshop.com < END OF DOCUMENT > http://www.iotworkshop.com - 21 -...
