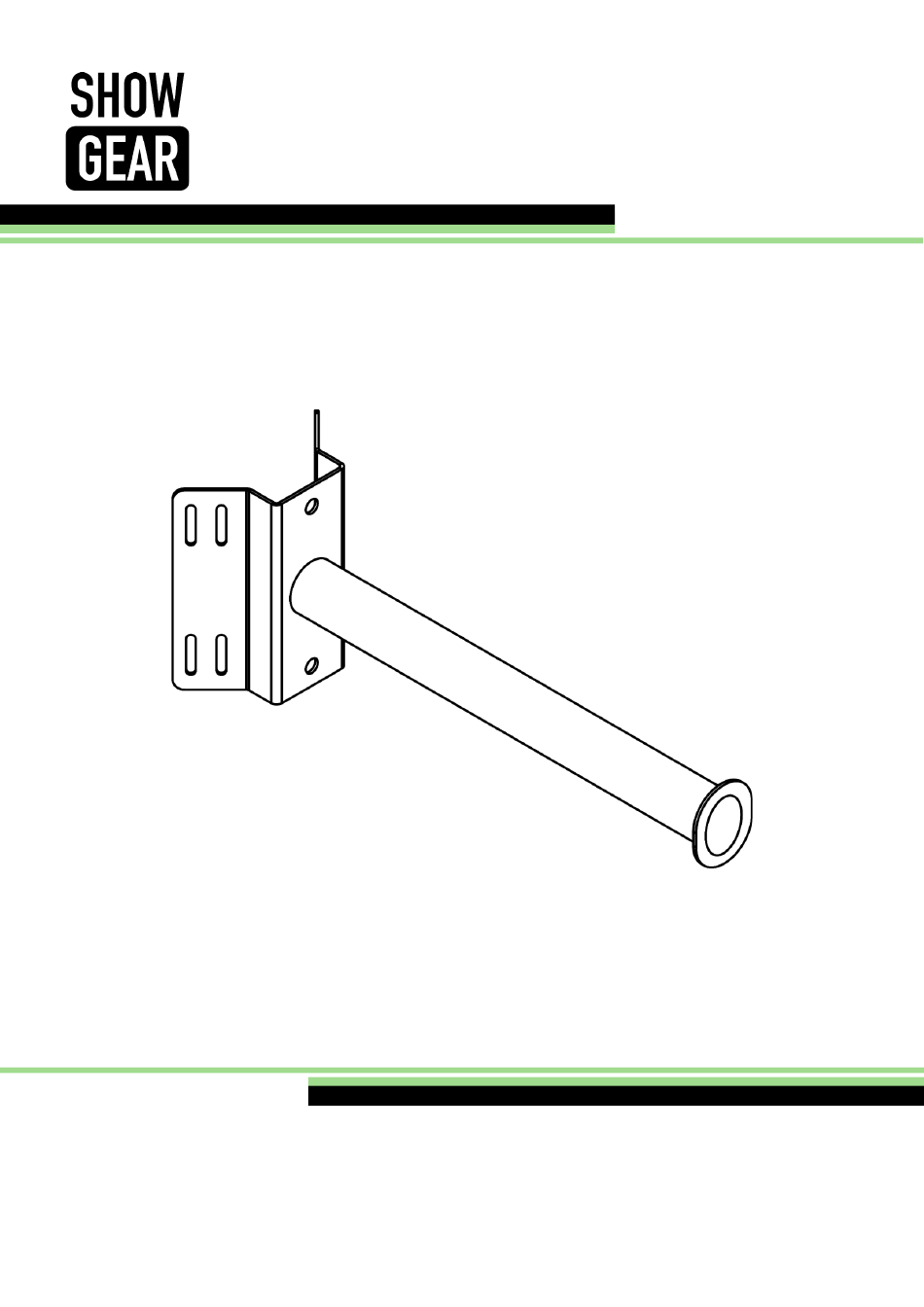

- Page 1 USER MANUAL ENGLISH Tree & Pole Bracket Product code: E748000 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Tree & Pole Bracket Preface Thank you for purchasing this Showgear product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Inspection and Maintenance .......................... 11 Inspection ................................11 Corrective Maintenance ..........................11 Basic Cleaning Instructions ..........................11 Deinstallation, Transportation and Storage ....................11 Instructions for Deinstallation ..........................11 Loosening of the Ratchet ........................12 Instructions for Transportation ........................12 Storage ................................12 Disposal ................................12 Product code: E748000... -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showgear Tree & Pole Bracket ● 2 x endless ratchet strap (2 m) ●... -
Page 5: Symbols And Signal Words
If any fault is found, mark the device clearly and remove it from service. ● Examine the device for damage, cracks, and corrosion. ● Examine the welds for signs of corrosion, and cracks. Product code: E748000... -
Page 6: Requirements For The User
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons include not only users of the product but also any other persons that may have access to the device or who may be in the vicinity of the device. Product code: E748000... -
Page 7: Description Of The Device
Lashing capacity (LC): 800 daN Standard hand force (S 50 daN Standard tension force (S 35 daN Webbing material: PES (polyester) Endless ratchet strap length: Max. elongation: <5 % Thermal: Ambient temperature t From -20 °C to 60 °C Product code: E748000... -
Page 8: Accessories
● that have LC (lashing capacity) equal or higher to the LC of the supplied endless ratchet straps. ● that are made of the same material as the supplied endless ratchet straps. Dimensions Fig. 04 Product code: E748000... -
Page 9: Installation
Tree & Pole Bracket. Make sure that the tree or the upright structure can hold the combined weight of all mounted devices and accessories. In the calculations consider any dynamic forces, if applicable. Product code: E748000... -
Page 10: Mounting Of The Device
Thread both endless ratchet straps (04) on the Tree & Pole Bracket (Fig. 05). Make sure that the endless ratchet straps (04) are not twisted. Put the Tree & Pole Bracket against a tree or an upright structure (Fig. 06). Fig. 05 Fig. 06 Thread the ratchets (03) (Fig. 07). Fig. 07 Product code: E748000... -
Page 11: Mounting Of External Devices
Secure the external device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the external device. Fig. 09 Product code: E748000... -
Page 12: Inspection And Maintenance
Wear personal protective equipment in compliance with the national and site-specific regulations. Deinstall the external device. Loosen both ratchets (03). See 6.1.1. Loosening of the Ratchet on page 12 for more information. Deinstall the Tree & Pole Bracket and remove the endless ratchet straps (04). Product code: E748000... -
Page 13: Loosening Of The Ratchet
Clean the device before storing. Follow the cleaning instructions in chapter 5.3. Basic Cleaning Instructions on page 11. ● Store the device in a dry, ventilated environment to avoid corrosion. Disposal After the device is removed from service it can be disposed of as scrap. Product code: E748000... - Page 14 Tree & Pole Bracket Product code: E748000...
- Page 15 Tree & Pole Bracket Product code: E748000...
- Page 16 ©2022 Showgear...
