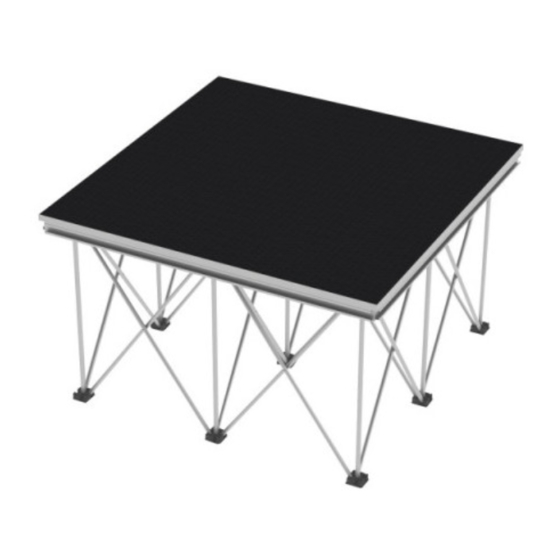

- Page 1 USER MANUAL ENGLISH Mammoth Stage 1 x 1 m / 2 x 1 m Product code: 70610/70620 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Mammoth Stage 1 x 1 m / 2 x 1 m Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................3 Claims ....................................3 Description of the device ..............................4 Overview ..................................5 Installation ................................... -
Page 3: Warning
(preferably in the original packing material), and return it to your Showgear dealer for service. ● The user is responsible for correct positioning of the Mammoth Stage. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ●... -
Page 4: Operating Determinations
Mammoth Stage 1 x 1 m / 2 x 1 m Operating Determinations ● If this device is used in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 5: Description Of The Device
Apart from purchasing the two separate stage sets (Mammoth Stage 1 x 1 m and Mammoth Stage 2 x 1 m) it is also possible to combine two Mammoth Stage 1 x 1 m sets to create one 2 x 1 m set, as two or more 1 x 1 m stage decks can be attached to each other by means of the special clamp. -
Page 6: Overview
Mammoth Stage 1 x 1 m / 2 x 1 m Overview Fig. 01 Product code: 70610/70620... -
Page 7: Installation
Mammoth Stage 1 x 1 m / 2 x 1 m Installation Remove all packing materials from the Mammoth Stage. Check if all foam and plastic padding is removed. Damages caused by non-observance are not subject to warranty. One Mammoth Stage 01) Unpack the Mammoth Stage deck and the Mammoth legs. -
Page 8: Multiple Mammoth Stages
Mammoth Stage 1 x 1 m / 2 x 1 m Multiple Mammoth Stages In order to connect two Mammoth Stage decks, you can use the following clamp: 70630 – Mammoth Stage Clamp Apart from the clamp, you can also use 70637 – Mammoth Stage Self- leveling Insert, for extra stability. -
Page 9: Mammoth Stage Self-Leveling Insert Installation
Mammoth Stage Self-leveling Insert Installation 01) Unpack two sets of the Mammoth Stage. 02) In order to level the two sets, insert the Mammoth Stage Self-leveling Insert (70637) in between the two stage decks (see fig. 05). 03) Connect both sets. -
Page 10: Installation Example
04) Once you have succeeded, insert the Mammoth Stage clamp completely into the slot. 05) Tighten the screw. 06) In this way, the Mammoth Stage decks are fitted to each other not only on the outside but also on the inside of the installation, which adds to the overall stability. -
Page 11: Examples
(B) 22 x Mammoth Stage Clamp (70630) ● (C) 14 x Mammoth Stage Self-leveling Insert (70637) ● (D) 1 x Mammoth Stairs 40/60 cm (70633/70634) ● 2 x Case for 6 x Mammoth Stage (1 x 1 m) (D7225) Fig. 07 Product code: 70610/70620... -
Page 12: 60 M 2 Mammoth Stage
Mammoth Stage 1 x 1 m / 2 x 1 m 60 m Mammoth Stage The list of needed items: ● (A) 30 x Mammoth Stage 2 x 1 m (70620) ● 60 x Mammoth Legs 20/40/60 cm (1 x 1 m) (70611/70612/70613) ●... -
Page 13: Miscellaneous
The Mammoth Stage comes in 2 heights: 40 cm and 60 cm. Total Height Information Mammoth Stage (40 cm) ● Mammoth Stage Deck (70610/70620) + Mammoth Legs 40 cm (70612) = 415 mm ● Mammoth Stairs 20+40 cm (70633) = 400 mm Mammoth Stage (60 cm) ●... -
Page 14: Product Specifications
Mammoth Stage 1 x 1 m / 2 x 1 m Product Specifications Model: Showgear Mammoth Stage 1 x 1 m / 2 x 1 m Maximum load: 500 kg/m Material: Aluminum (6063-T66) Dimensions: 1000 x 1000 x 55 mm (LxWxH) / 2000 x 1000 x 55 mm (LxWxH) - Page 15 Mammoth Stage 1 x 1 m / 2 x 1 m Product code: 70610/70620...
- Page 16 ©2021 Showgear...
