W I N I F R E D

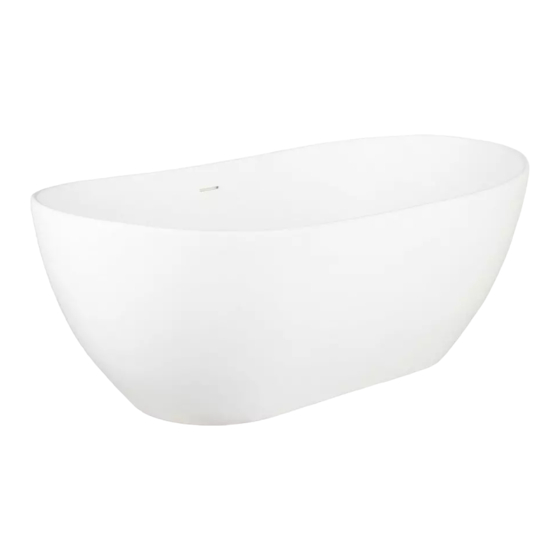

RESIN FREESTANDING TUB
SKU: 918954, 946438, 944333
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing bathroom �xtures and
plumbing. Signature Hardware accepts no liability for
any damage to the �oor, walls, plumbing, or personal
injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the tub for damage. If any
damage is found, contact our
Customer Relations team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all of the required
materials that are needed for the installation.
Ensure that your bathroom �oor is adequately
supported, and the �nished �oor is level.
Keep the plumbing connections around the tub
easily accessible for any future maintenance that
may be necessary.
PLANNING
Use the tub's PDF speci�cation sheet as a reference
when planning your layout. The speci�cation sheet
can be found and downloaded from the product page
on our website.
Because the tub speci�cation
measurements are approximate and slight variations
may occur, we highly recommend performing any
rough-in procedures with the faucet on site. For
rough-in information, go to the appropriate drain
installation section.
For Warranty information, please visit: signaturehardware.com/services/warranty
TOOLS AND MATERIALS:
Marker
Metal Blade
Hacksaw
Neutral Cure
Silicone Sealant
IMPORTANT: If you purchased your tub with a Quick
Connect Drop-In Drain Kit, make sure to reference
page 6 throughout your installation.
ADDITIONAL TOOLS AND MATERIALS:
Long-nose Pliers
1
Tape Measure
Level
Adjustable
Damp Cloth
Wrench
PVC Primer
and Cement
1-3/4" Screws
(x5)
REVISED 03/25/2020
CODES: 506398, 357948 ,357952, 357956
507394, 507395, 507396,, 503169, 503171
503173
Advertisement
Related Manuals for Signature Hardware WINIFRED SH373454
Summary of Contents for Signature Hardware WINIFRED SH373454
- Page 1 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are unfamiliar with installing bathroom �xtures and plumbing. Signature Hardware accepts no liability for any damage to the �oor, walls, plumbing, or personal Marker Tape Measure Level injury during installation.
- Page 2 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 INSTALLATION WITH UNDERFLOOR ACCESS 1. Set the tub in the desired location and mark the 3. Place a level across the bottom of the tub to drain hole location on the �oor.
- Page 3 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 5. Attach the �anged PVC hub adapter to the exposed 7. Fill the tub with water to check for any leaks from the connections. Verify that the drain is working properly. threads on the bottom of the tub.
- Page 4 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 INSTALLATION: WITHOUT UNDERFLOOR ACCESS / SLAB FLOOR INSTALLATION 1. Set the tub in the desired location and mark the 3. Place a level across the bottom of the tub to drain hole location on the �oor.
- Page 5 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 7. Turn the tub to upright position. Then, apply PVC 5. Trim the 1½" PVC drain pipe extending from the primer and cement to the female end of hub adapter �oor to the appropriate length.
- Page 6 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 INSTALLATION WITH QUICK CONNECT DRAIN 1. Drill a 4” diameter hole in the sub �oor where the 9. Fill the tub with water to check for any leaks from drain will be installed.
- Page 7 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 5. Apply PVC primer and cement to the outside of the 3. Cut the provided 1 ½” PVC pipe 3” shorter than the PVC pipe and to the inside of the drop-in drain insert. distance between the �oor and the p-trap (measure- ment taken in step two).
- Page 8 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 9. Install the �ooring surface, such as tile, leaving an 11. Once ready for tub installation, apply the provided opening around the drain as shown. lubricant to the rubber portion of the inside of the drain.
- Page 9 W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 14. With caution, slowly drop the tub into position, Optional: If installing a separately purchased tail inserting the tail piece into the drop-in drain. piece and �oor �ange, measure and cut the 12” tail piece to length by measuring from tub drain connec- tion.
-
Page 10: Cleaning And Maintenance
W I N I F R E D RESIN FREESTANDING TUB SKU: 918954, 946438, 944333 CLEANING AND MAINTENANCE RESIN TUBS Resin has a nonporous surface that makes it resistant to stains, scratches and discoloration. To maintain the condition of your new resin tub, simply wipe the surface with a dry, soft cloth after each use. Most dirt and dust will wash o� with clean, warm water.
