Quick Setup Guide
EdgeIPS
EdgeIPS Pro 216 is a Transparent Security Appliance,
supporting up to 8 pairs of IPS segments. Users can
efficiently adapt the rack mounted EdgeIPS Pro 216
into a flexible solution for the challenges of
Ethernet communications.
1
1
Opening and Inspecting the Package
EdgeIPS Pro 216 Appliance
Power Cord x 4
2
1

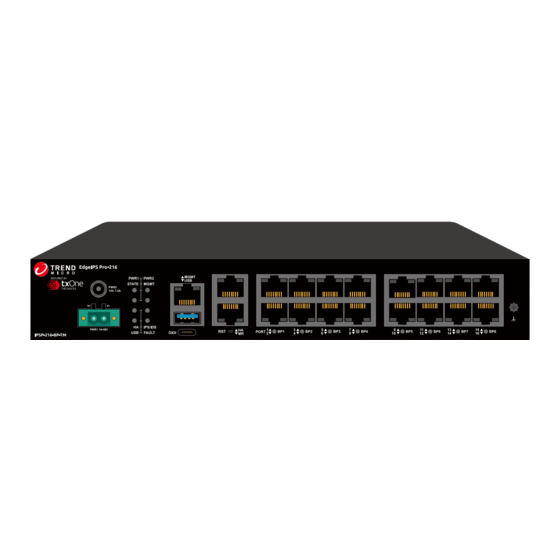

Examining the EdgeIPS Pro 216
Pro 216
TM
Console Cable
(USB Type-C)
Terminal Block
Rubber Feet x 4
Adapter
1
-
-
Support
configurable
hardware
bypass
DIN-Rail Kit
(installed on
EdgeIPS Pro 216)
Documents
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trend Micro txOne networks EdgeIPS Pro 216
Summary of Contents for Trend Micro txOne networks EdgeIPS Pro 216
- Page 1 Quick Setup Guide EdgeIPS Pro 216 Support configurable hardware bypass EdgeIPS Pro 216 is a Transparent Security Appliance, supporting up to 8 pairs of IPS segments. Users can efficiently adapt the rack mounted EdgeIPS Pro 216 into a flexible solution for the challenges of Ethernet communications.
-
Page 2: Deployment Checklist
Deployment Checklist Requirement Details Ethernet Cables Connect to the Management Port to access web management console. Default IP Address of Default web console access information: Web Console https://192.168.127.254 User Name: admin Password: txone Laptop with Ethernet The computer must have one of the following browsers installed: Port (RJ-45 Type) - Microsoft Edge (version 15 or above) - Firefox (version 53 or above) -
Page 3: Led Indicators
LED Indicators The function of each LED is described in the table below. Green Power 1 is on, and the device is functioning normally. PWR1 Power 1 is off. Green Power 2 is on, and the device is functioning normally. PWR2 Power 2 is off. - Page 4 Mounting the EdgeIPS Pro 216 to a DIN Rail The aluminum DIN rail attachment plate should already be fixed to the back panel of EdgeIPS Pro 216 when you take it out of the box. If you need to reattach the DIN rail attachment plate to EdgeIPS Pro 216, make sure the stiff metal spring is oriented towards the back, as shown in the following pictures.
-
Page 5: Connecting The Power
Connecting the Power with DC Wires Step Open the terminal block’s wire locks by pushing the buttons down. Step Insert positive/negative DC wires into the V+/V- Top View terminals respectively. Step When the wire is properly seated, the wire lock will be forced V- V+ shut around it. - Page 6 Wiring the Redundant Power Inputs Software Configuration Before you connect the PC/laptop to EdgeIPS Pro 216, the PC's IP address should be set to 192.168.127.100. After that, connect the PC and EdgeIPS Pro 216 using an Ethernet cable. Open a web browser on your PC and type “https://192.168.127.254” into the address bar. A pop-up window will open to ask for user name and password.
- Page 7 Configuring the Management Port 1. Go to [Network] > [Device Settings]. 2. In the [Device Settings] pane, configure the management port for EdgeIPS Pro 216. Task Action Device IP Address Configure Management IP Address of the EdgeIPS Pro 216 Netmask Configure Netmask of the EdgeIPS Pro 216 Gateway Configure Gateway Address of the EdgeIPS Pro 216...
- Page 8 Checking LED Indicators to Confirm Status The LED on each Ethernet port shows the deployment status. No Light The EdgeIPS Pro-216 appliance cannot communicate with a network. Left LED GE LINK/ACT (off = no link, on = activity) Right LED 1 Gbps LINK/ACT (on = 1 Gbps link) MGMT/MR Right LED...
-
Page 9: Contact Information
Appendix: Connecting to the Console Port The EdgeIPS Pro 216 console port is a USB Type-C port located on the front panel of the case. It is designed for connecting to serial console terminals to view messages during a boot sequence or for debugging system boot issues. To connect to a serial console terminal using a console cable, remove the protective cover from the port.
