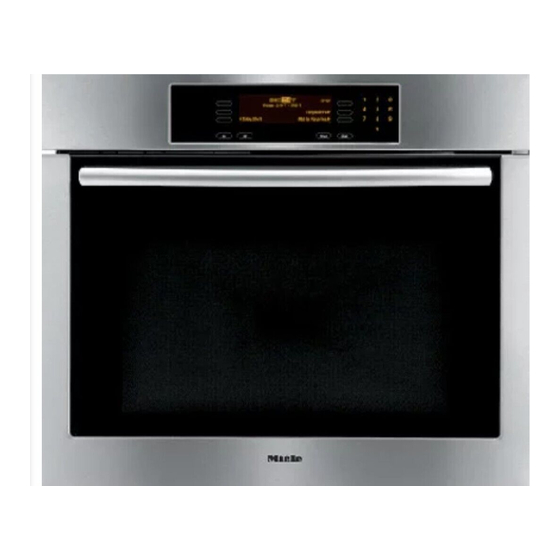

Miele H4680B Dimensions

Product and Cut-out Dimensions

60 cm Single Oven

H4680B

Location Codes

E - 5 foot electrical main with plug
connects top center.
O - 208-240 Volt - 20 Amp - 4-wire
connection box with NEMA 14-30R.
Location must be accessible.
A - Height to base of oven
Locate 34 5/8" - 36" from floor.
Based on user height of 5'6" to 5'10"

Notes

• All installations must be done in
accordance with local codes.
O
E
NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010305
