Record the Serial Number of your
Model 81
and give the number to the factory
when ording parts.
Serial Number ..............................................
When ordering, specify quantity and item numbers
ALL PRICES NET, F.O.B. FACTORY, AND
SUBJECT TO CHANGE WITHOUT NOTICE

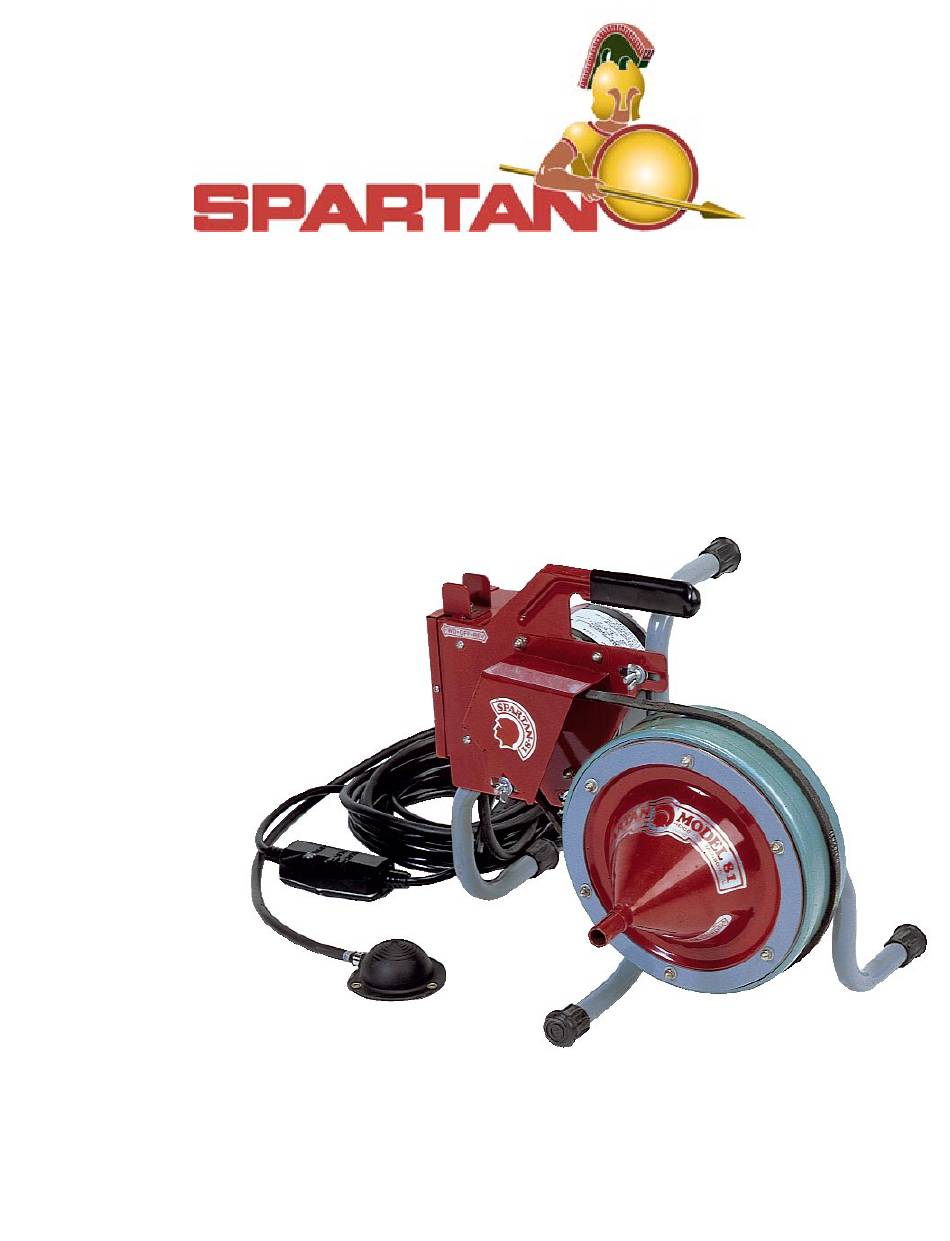

M o d e l 8 1
Owners Manual
( 8 0 0 ) 4 3 5 - 3 8 6 6
SPARTAN TOOL L.L.C.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spartan 81
Summary of Contents for Spartan 81
- Page 1 M o d e l 8 1 Owners Manual Record the Serial Number of your Model 81 and give the number to the factory when ording parts. Serial Number ..........When ordering, specify quantity and item numbers ALL PRICES NET, F.O.B. FACTORY, AND...
-
Page 2: Table Of Contents
Operating Instructions ..................... 3 How to Repair 1/4” and 5/16” Cables ..............4 Operating a Power Driven Cleaning Tool ..............4 How to Install Cable in Model 81 ................5 Safety Instructions ....................6-7 PARTS & ACCESSORIES SECTION Power Unit BSP04703300 ................. 8-9 Control Box ..................... -
Page 3: How To Assemble
How to Assemble Remove drum and power unit from cartons. Step 1 Set power unit in vertical position. (See picture on front page) Step 2 Mount drum on power unit. Lock drum to power unit by tightening (2) thumb screws. (Thumb screw shoulder must enter hole in collar before tightening.) Step 3 Loosen (3) wing nuts on motor mount plate. -
Page 4: How To Repair 1/4" And 5/16" Cables
How to Repair 1/4” and 5/16” Cables All 1/4” and 5/16” cables can be repaired with a replacable end. If you kink you cable, cut the cable off at the kinked portion. Grind the end of same to provide a lead thread. Now, pick up your repair end and thread same on the regular cable, as you would a nut on a bolt, turning same about three turns, which will fasten it to the cable securely. -
Page 5: How To Install Cable In Model 81
How to Install Cable in Model 81 1. Position drum unit in a vertical position. Remove (6) nuts, washers, drum cover, drum cover spacer, and (2) drum cover seals. 2. Assemble drum cover spacer and (2) seals to outer drum as required for various cables. See Figure 1 and Figure 3. -
Page 6: Safety Instructions
Safety Instructions A. For All Grounded Tools 2. Extension Cords 1. Grounding Instructions Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole receptacles that This tool should be grounded while in use to accept the tool’s plug. Replace or repair damaged protect the operator from electric shock. - Page 7 Safety Instructions 7. Dress Properly cutters. Do not wear loose clothing or jewelry. They 14. Remove Adjusting Keys and Wrenches can be caught in moving parts. Rubber gloves Form habit of checking to see that keys and and non-skid rubber foot-wear are adjusting wrenches are removed from tool recommended when working outdoors.
-
Page 8: Power Unit Bsp04703300
BSP04703300 Model 81 Power Unit Page 8... - Page 9 BSP04703300 Model 81 Power Unit Item Number Part Number Description ASP04733400 Frame Assy. Includes item 2, 3, 4, 5, 10, 11, 16, 17, 23, 24 & 25 AXX03421300 Bronze Bearing ASP04700400 Flanged Bearing XXX02822500 Retainer Ring ASP04700300 Shaft Collar ASP04700600 Sheave ASP04233200 V-Belt ASP04733500 Sheave Guard Assy, Includes items 20 &...
-
Page 10: Control Box
Control Box Item Number Part Number Description CSP4402200 Control Box Weldment ASP04225800 Toggle Switch ASP04229900 Capacitor ASP04230900 Capacitor Clamp ASP04230000 Terminal Cap XXX01921801 Rd. Hd Slotted Mach. Scr. #8-32 x 1/2" Lg. XXX03312001 Kep Nut #8 - 32 CSP44002100 Control Box Cover XXX03394400 Sheet Metal Screw #6 x 1/4"... -
Page 11: Wiring Diagram
Control Box Wiring Diagram Page 11... -
Page 12: Drum Unit
Drum Unit For Model 81 Page 12... - Page 13 Drum Unit For Model 81 Item Number Part Number Description BSP04722600 Drum Unit Complete Assy. CSP04726900 Outer Drum & Flange Assy. includes items 5, 7, 8, 11, 13 & 14 CSP04727000 Drum Cover Assy. includes items 9 & 10 CSP04720300 Drum Cover Seal...
-
Page 14: Cables For Model 81
Cables For Model 81 Spartan Swedish Steel Cables Without Inner Core Flexible open hook end enables operator to thread cable through cross bars - eliminating necessity of removing trap - to do a thorough job quickly. One repair hook furnished with each cable. - Page 15 Cables For Model 81 Repair Bulbs For 5/16" Inner-Core Cables: ASP02885200 Repair Bulb Repair Hooks How to Use Repair Hook or Repair Bulbs If cable is kinked, simply remove kinked portion by cutting it off at a point about 1" back of bent section. Attach Repair Hook by threading it over cable end about four turns.
- Page 16 To obtain warranty service, a purchaser should notify Spartan Tool in writing, at the address provided below, within the warranty period, and Spartan Tool will direct where to take or send the equipment for service. If the defect is covered by the warranty, Spartan Tool will repair or replace, at its option, the defective equipment, without charge for labor or materials.
