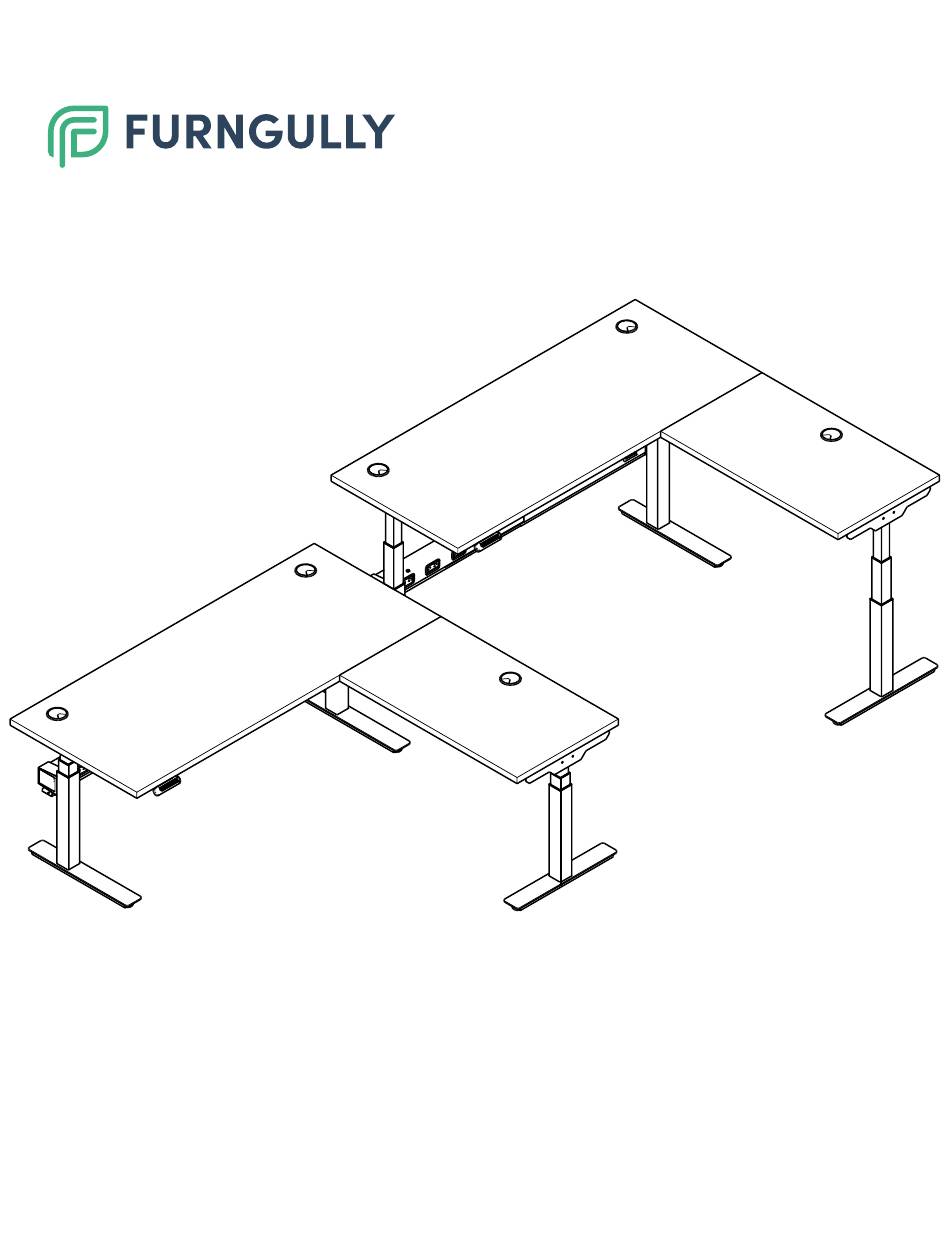

- Page 1 BPROLF-S SPROUT PRO SIDE-BY-SIDE L-SHAPE INSTALLATION GUIDE *General Guide | See Master Plan...
- Page 2 48" POWER PARTS LIST CODE DESCRIPTION BPROTPB Module Mounting Plate (Short) Power Module Bracket Assembled Power Beam PRODB Double Receptacle Block PROR# Receptacles PROJ## Jumper...
- Page 3 1 | ATTACH POWER BLOCKS WITH RECEPTACLES 3 | CONNECT JUMPER TO RECEPTACLE TO MOUNTING PLATE Connect the thicker end of the jumper to the double block Place power blocks with receptacles on top of mounting plate. where the greater jog is located. Slide brackets over receptacle and secure with provided screws.
- Page 4 4 | INSERT POWER INTO BEAM While having the mounting module slightly tilted, insert and guide the jumper through the opposite end of the beam. Pull the jumper out from the other end. Connect the mounting plate to the 54"–72" POWER PARTS LIST power beam using 4 screws.
- Page 5 3 | CONNECT JUMPER TO RECEPTACLE 1 | ATTACH POWER BLOCKS WITH RECEPTACLES TO MOUNTING PLATE Before securing to power beam, secure jumper(s) to power block. Note: Jumper connects to the single block. Place power blocks with receptacles on top of mounting plate. Slide brackets over receptacle and secure with provided screws.
- Page 6 4 | INSERT POWER INTO BEAM While having the mounting module slightly tilted, insert and guide the jumper through the opposite end of the beam. Pull the MAIN SYSTEM PARTS LIST jumper out from the other end. Connect the mounting plate to the power beam using 4 screws.
- Page 7 SURFACE CONFIGURATION RETURN SYSTEM PARTS LIST There are two surface configuration options depending on the surface placement. OPTION #1: Standard L-Shape Configuration CODE DESCRIPTION The standard surface will be secured along the main frame system and the return surface will be secured along the return leg. BPROLF Adjustable Return Leg T-Foot...
- Page 8 1 | SECURE LEGS TO FRAME 3.1 | SET WORKSTATION LENGTH Set frame assembly upside down on floor and then place legs Measure from outer edges of workstation legs to determine proper inside of frame aligning the second hole of the frame with the front workstation length.
- Page 9 5 | SECURE FRAME TO SURFACE(S) 4 | ALIGN FRAME WITH SURFACE WIDTH Using wood screws, attach frame to surface and tighten screws on adjustable center bracket. Use a right angle drill to simplify the process. Note: For alternative configuration, secure surfaces to frame 24"...
- Page 10 7 | SECURE POWER BEAM TO WORKSTATION 9 | REMOVE DATA PLATE After power beam is secured, remove data plate from the outer Use a 6" drill extension to secure power beam end to center cutout beam. of SR Beam Mounting Bracket with 4 screws on each end. 8 | SET POWER BEAM WIDTH 10 | ASSEMBLE DATA TRAY Using the set screws, interconnect the inner and outer power beam...
- Page 11 11 | REMOVE GLIDE AND INNER BRACKET TO 13 | SECURE FEET TO LEGS PREPARE LEGS FOR FEET Using 4 screws for each foot, secure to legs with longer side of foot Twist off glides, then using an Allen wrench remove the 2 screws facing the front of the workstation.
- Page 12 16 | ALIGN RETURN SURFACE WITH MAIN 15 | CONNECT RETURN LEG SUPPORT BRACKET SURFACE Secure the return leg support bracket to the return leg Note: For alternative configuration, skip to STEP 19. from the side using 4 screws. Position the return surface and the return leg next to the already assembled main station.
- Page 13 18 | CONNECT RETURN SURFACE TO STANDARD 19 | ALTERNATIVE CONFIGURATION OPTION: SURFACE WITH FLAT BRACKETS & SUPPORT BAR CONNECT SURFACES TO FRAME SYSTEM AND STANDARD SURFACE TO RETURN LEG Center and secure flat brackets where the return and standard surfaces meet.
- Page 14 20 | CONNECT RETURN SURFACE TO MAIN 21 | CONNECT L-SHAPE CONTROL BOX SURFACE WITH FLAT BRACKETS AND SECURE Remove the control box from the side-by-side frame and use the SUPPORT BAR L-shape control box provided with the return kit. The L-shape control has 3 cord inputs, which will connect to the return leg and the side-by-side legs.
- Page 15 22 | SECURE HANDSET AND CONNECT 24 | ALIGN AND CONNECT WORKSTATIONS Pass jumper through bridge extension then insert the extension Connect handset cable to control box. Align front of handset with into the open slot of power bridge on first workstation. Align surface edge and secure with 3 wood screws.
