Security Labs SLM451 Quick Start Manual

Prior to connecting and operating the SLM451 Digital Surveillance System, please read this quick start guide
carefully. Refer to the individual users manuals included with the DVR and cameras for detailed
operation of each product.
Camera Setup and Connection
1) Remove all individual components and accessories from their packaging.

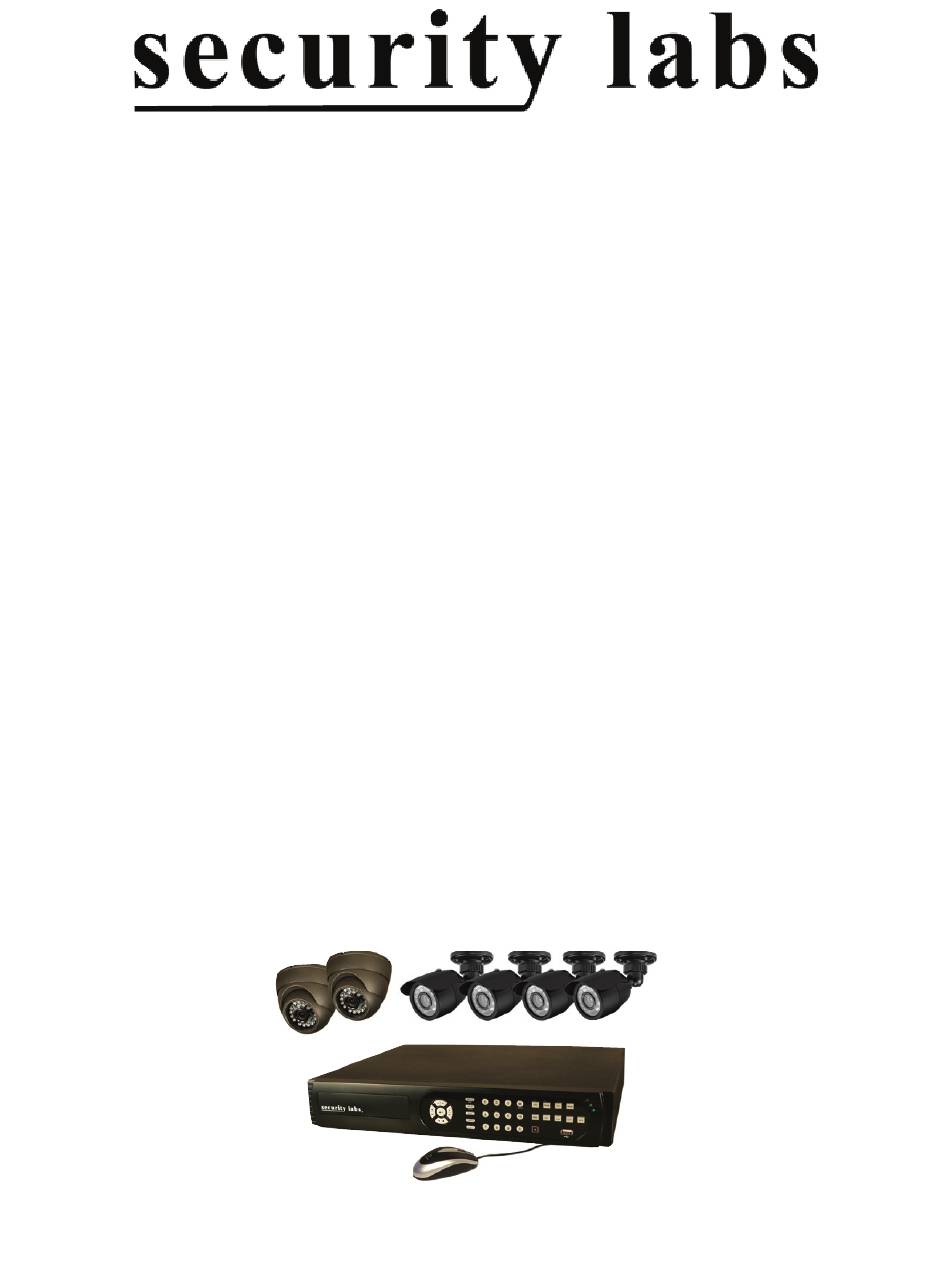

2) Using the included mounting hardware, install each of the cameras as desired. The (4) SLC-159
cameras & (2) SLC-1055 turret dome cameras are weatherproof and may be used indoor or out. Do NOT
submerge these cameras. Protect the cameras from direct weather by mounting under a protected area.
3) To connect the (4) SLC-159 weatherproof cameras & (2) SLC-1055 dome cameras to the DVR:
• Connect the video/power cable (supplied) to each camera. The BNC connection will supply
video to the DVR, the DC plug will supply power to the camera.
• Connect the BNC plug on the other end of the video/power cable to one of the video inputs on
the DVR.
• Connect the 2.1mm power jack and power supply as shown in the diagram. DO NOT power other
accessories or equipment not supplied in this system.
• Repeat for all cameras.
4) Connect the VIDEO OUT terminal on the SLD265 DVR to the VIDEO IN terminal on the monitor or TV.
5) Connect power to the DVR with the power supply as shown in the diagram.
6) Set up the DVR operation menu according to desired recording requirements.
SECURITY LABS DOES NOT ASSUME LIABILITY FOR ANY VIOLATION OF PRIVACY FROM ILLEGAL RECORDINGS OR MONITORING MADE
ON OR FROM THIS UNIT. THE USER/OWNER ASSUMES FULL LIABILITY FOR ANY AND ALL RECORDINGS MADE FROM THIS UNIT IN A
SECURITY OR SURVEILLANCE OPERATION OR IN ANY OTHER USE. SECURITY LABS IS NOT RESPONSIBLE FOR RECORDINGS THAT
VIOLATE LAWS OR THAT MAY PROVE OFFENSIVE OR TEND TO INCRIMINATE ANOTHER INDIVIDUAL. LOCAL, STATE, AND FEDERAL
LAWS MUST BE OBSERVED REGARDING ALL RECORDINGS.
