Security Labs SLM452 Quick Start Manual

Prior to connecting and operating the SLM452 Surveillance System, please read this quick start guide care-
fully. Refer to the individual users manuals included with the DVR for detailed operation.
Camera Setup and Connection
1) Remove all individual components and accessories from their packaging.

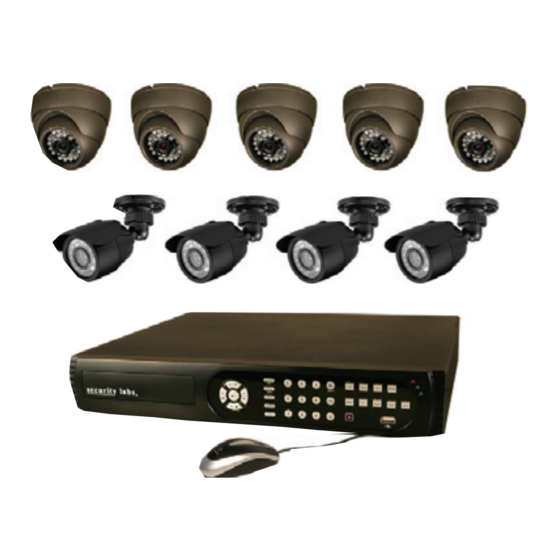

2) Using the included mounting hardware, install each of the cameras as desired. The (9) cameras supplied
are weatherproof and may be used indoor or out. Do NOT submerge these cameras. Be aware of any
existing utilities lines (electric, gas, water, etc) in the camera mounting area. Place the cameras under an
eave or other protective area when mounting outdoors.
3) To connect the cameras to the DVR:
• Connect the video/power cable (supplied) to each camera. The BNC connection will supply
video to the DVR, the DC plug will supply power to the camera.
• Connect the BNC plug on the other end of the video/power cable to one of the video inputs on
the DVR.
• Connect the 2.1mm power jack and power supply as shown in the diagram. DO NOT power other
accessories or equipment not supplied in this system.
• Repeat for all cameras.
4) Connect the VIDEO OUT terminal on the DVR to the VIDEO IN terminal on the monitor using the supplied
VGA cable. If the monitor or TV does not have a VGA connector, connect the VIDEO OUT on the DVR to the
VIDEO IN on the monitor or TV.
5) Connect power to the DVR with the power supply as shown in the diagram.
6) Set up the DVR operation menu according to desired recording requirements
