Summary of Contents for MEANReal Elf Zoom

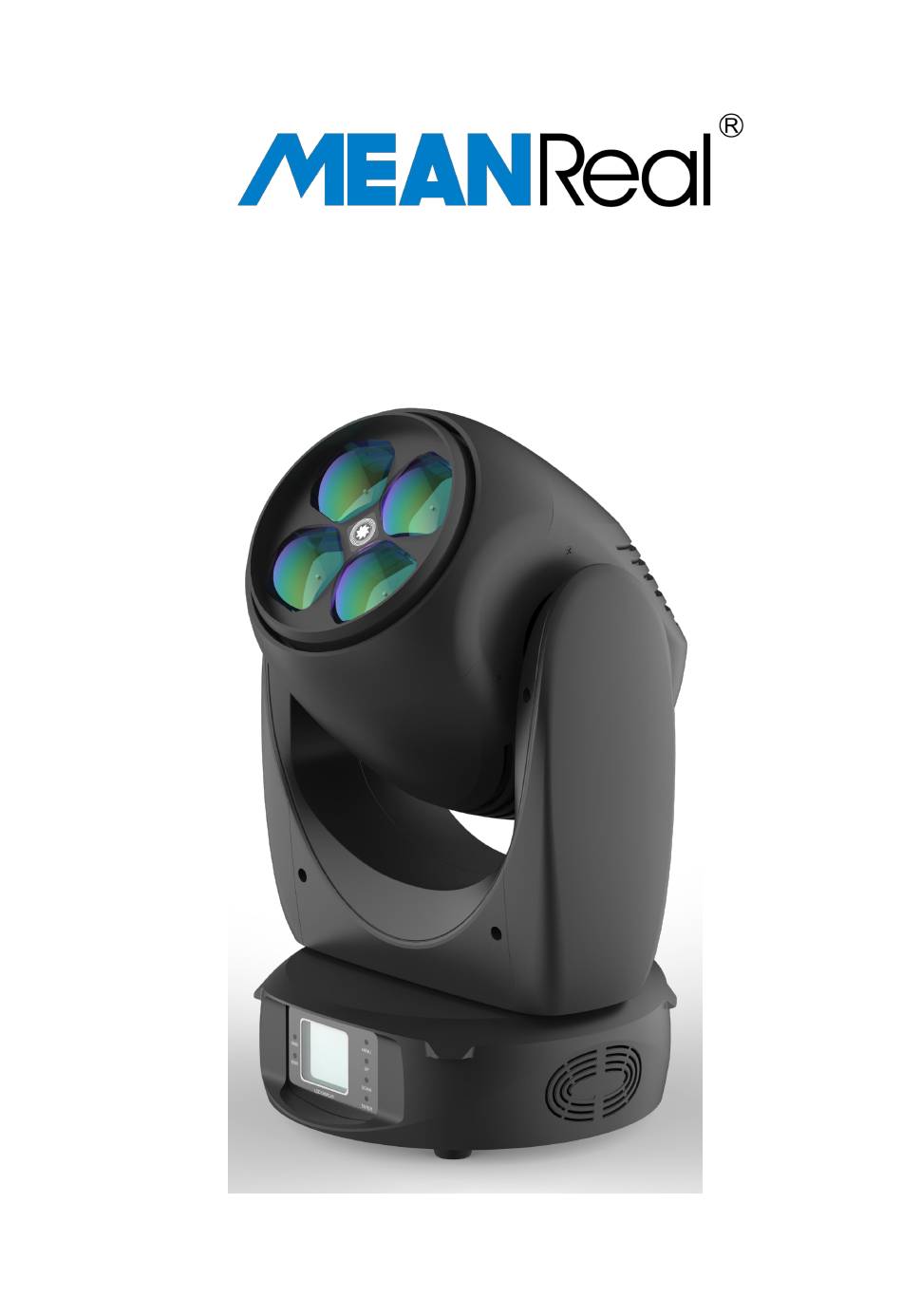

- Page 1 Elf Zoom user's manual Please read the instruction manual carefully before use...
- Page 2 1.Safety guidance: Thank you for using our product. In order to use this product safely and effectively, you use this product,Please read the entire contents of this manual carefully before.This manual contains: an introduction to this product and Important information such as safe installation and use, please keep it for reference.
- Page 3 2.Product description： Elf Zoom Is a compact, high performance zoom moving head light product ， it has ： RDM features ， Console-adjustable address code ， Small size, easy to transport, LED light source, low power, high light efficiency, long life, environmental protection;...
-
Page 4: Wiring Method
3.Wiring method： A ： In order to reduce signal errors and avoid signal attenuation and interference during transmission, the DMX input of the last machine can be used.Out Add a 120 OHM 1 / 4W resistor between the 2 and 3 pins on the end. B：... -
Page 5: Menu Description
4.Installation Precautions In order to ensure the stability of the installation site during the installation of the lamp, it is necessary to ensure the firmness of the connection between the lamp pole and the lamp hook when reversing the installation, and use a safety rope to assist the suspension;... - Page 6 ①Main interface Two LED indicators on the left: Green --- (DMX signal indicator) Blue --- (host self-propelled voice-activated indicator) The three buttons in the upper right corner are used for: CN：Chinese, language switch EN：English, language switch 180：Screen display rotated 180 °, upside down ②Set interface Option Description...
- Page 7 correct position Not corrected NO DMX Signal KEEP Keep the current state CLEAR Reset to initial position and stop running Screen saver Turn off the backlight after 30 seconds of inactivity Backlight always on Load Default NO/YES Select "Yes" to confirm and restore the default settings ③Info interface Option Description...
-
Page 8: Function Description
6：DMX 512 Channel table： This light has 16-channel mode, as shown below: function Function description Channel number CH 1 0-255 Rotate horizontally：0-540° CH 2 TILT 0-255 Vertical rotation：0-270° CH 3 PAN Fine 0-255 Fine horizontal：0%-100% CH 4 TILT Fine 0-255 Fine vertical：0%-100% CH 5 PAN/TILT Speed... - Page 9 50-59 Red+Green CH 14 Color Macro 60-69 Red+Blue 70-79 Red+White 80-89 Green+Blue 90-99 Green+White 100-109 Blue+White 110-119 Red+Green+Blue 120-129 All on 130-171 Transient From fast to slow CH 14 Color Macro 172-213 Gradually From fast to slow 214-255 Pulse From fast to slow 0-63 Nothing CH 15...
-
Page 10: Troubleshooting
7：Troubleshooting The following are some of the problems that often occur during operation, with some suggestions for troubleshooting: The light does not work, there is no light, and the fan does not turn. ①Check power contacts and fuses. ②Detection voltage. ③Check the power switch indicator. - Page 11 Use a soft brush, tissue paper, air cleaner, or air to blow the dust at the fan and the air inlet. Clean the dust from the fan and air holes to keep the air duct open. GUANGZHOU MEANREAL LIGHTING LIMITED ADD:NO.6 XINHE AVE.HUASHAN TN.HUADU DIST.GUANGZHOU,CHINA...
