Summary of Contents for MEANReal ELF 120S

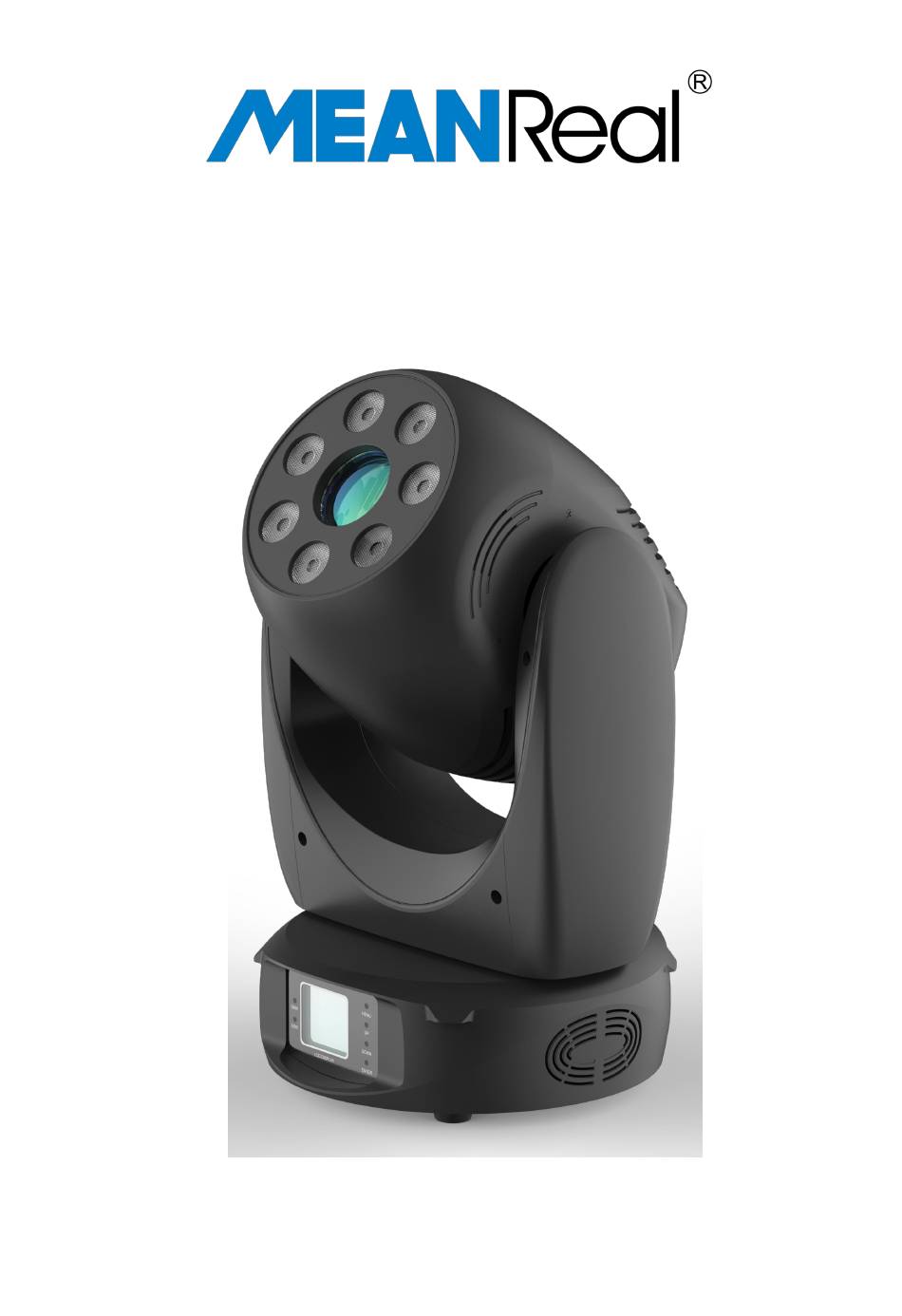

- Page 1 ELF 120S USER MANUAL Please read the instruction manual carefully before use...
- Page 2 1.Safety guidance: Thank you for using our product. In order to use this product safely and effectively, you use this product,Please read the entire contents of this manual carefully before.This manual contains: an introduction to this product and Important information such as safe installation and use, please keep it for reference.
-
Page 3: Product Description
●A serious operational failure has occurred, please stop using it immediately. ● Do not operate the machine by yourself. Operation by non-professional personnel will cause damage to the equipment or malfunction. If repair is required, please contact the nearest authorized service center. ●If the lamp is not used for a long time or please cut off the power during maintenance ●To avoid fire hazards or electric shock, do not expose the luminaire to rain or wet areas. -
Page 4: Wiring Method
3.Wiring method： A ： In order to reduce signal errors and avoid signal attenuation and interference during transmission, the DMX input of the last machine can be used.Out Add a 120 OHM 1 / 4W resistor between the 2 and 3 pins on the end. B：... -
Page 5: Installation Precautions
4.Installation Precautions In order to ensure the stability of the installation site during the installation of the lamp, it is necessary to ensure the firmness of the connection between the lamp pole and the lamp hook when reversing the installation, and use a safety rope to assist the suspension;... - Page 6 ②Set interface Option Description DMX/RDM Slave state: receive DMX signal or RDM signal from console or host Run Mode Fast Master status: run fast and send DMX signal to slave Slow Master status: run slow and send DMX signal to slave Sound Master status: sound running, and send DMX signal to slave DMX Address...
- Page 7 ③Info interface Option Description Version current software version Total Fix Cumulative use time Fixture time Usage time since this boot Total Lamp Accumulated lamp bead usage time Lamp time This time, the time taken by the lamp beads temperature ℃ Light source temperature ④Test interface This interface is used to manually control the current luminaire.
-
Page 8: Function Description
6：DMX 512 Channel table： This light has 2 channel modes: 16-channel mode and 20-channel mode, as shown below: 16-channel mode, as follows： Function Function description Channel number CH 1 0-255 Rotate horizontally：0-540° CH 2 TILT 0-255 Vertical rotation：0-270° CH 3 PAN Fine 0-255 Fine horizontal：0%-100%... - Page 9 CH 9 Colour 195-225 Color flowing-Positive（Fast to slow） 226-255 Color flowing-anti（slow to Fast） 0-14 White light 15-29 gobo 1 30-44 gobo 2 45-59 gobo 3 60-74 gobo 4 75-89 gobo 5 90-104 gobo 6 CH 10 Rotating gobo 1 105-119 gobo 1 shake Slow-fast 120-134 gobo 2 shake Slow-fast...
- Page 10 140-149 gobo 6 shake Slow-fast 150-159 gobo 7 shake Slow-fast CH 12 Fixed Gobo 2 160-169 gobo 8 shake Slow-fast 170-212 Gobo Rotate-Positive（Fast to slow） 213-255 Gobo Rotate-anti（slow to Fast） 0-63 Nothing CH 13 Prism 64-127 Prism insertion 128-255 Prism rotation (slow to fast) Nothing 10-19 20-29...
- Page 11 CH 14 Dyeing Macro 236-245 Gradually Fast to slow 246-255 Pulse Fast to slow 0-63 Nothing CH 15 Automatic/Sound 64-127 Run fast 128-191 Run slow 192-255 Sound 0-63 Nothing CH 16 Reset 64-127 Small motor reset 128-191 PAN/TILT reset 192-255 Whole machine reset 20-channel mode, as follows：...
- Page 12 78-90 Color 6 91-103 Color 7 104-116 White light+Color 1 117-129 Color 1+Color 2 130-142 Color 2+Color 3 143-155 Color 3+Color 4 156-168 Color 4+Color 5 CH 9 Colour 169-181 Color 5+Color 6 182-194 Color 6+Color 7 195-225 Color flowing-Positive（Fast to slow） 226-255 Color flowing-anti（slow to Fast）...
- Page 13 50-59 gobo 5 60-69 gobo 6 70-79 gobo 7 80-89 gobo 8 90-99 gobo 1 shake Slow-fast 100-109 gobo 2 shake Slow-fast 110-119 gobo 3 shake Slow-fast CH 12 Fixed Gobo 2 120-129 gobo 4 shake Slow-fast 130-139 gobo 5 shake Slow-fast 140-149 gobo 6 shake Slow-fast 150-159...
-
Page 14: Troubleshooting
7：Troubleshooting The following are some of the problems that often occur during operation, with some suggestions for troubleshooting: The light does not work, there is no light, and the fan does not turn. ①Check power contacts and fuses. ②Detection voltage. ③Check the power switch indicator. - Page 15 GUANGZHOU MEANREAL LIGHTING LIMITED ADD:NO.6 XINHE AVE.HUASHAN TN.HUADU DIST.GUANGZHOU,CHINA TEL:+8613560334367 EMAIL:INFO@MEANREAL.COM WEB:WWW.MEANREAL.COM...
