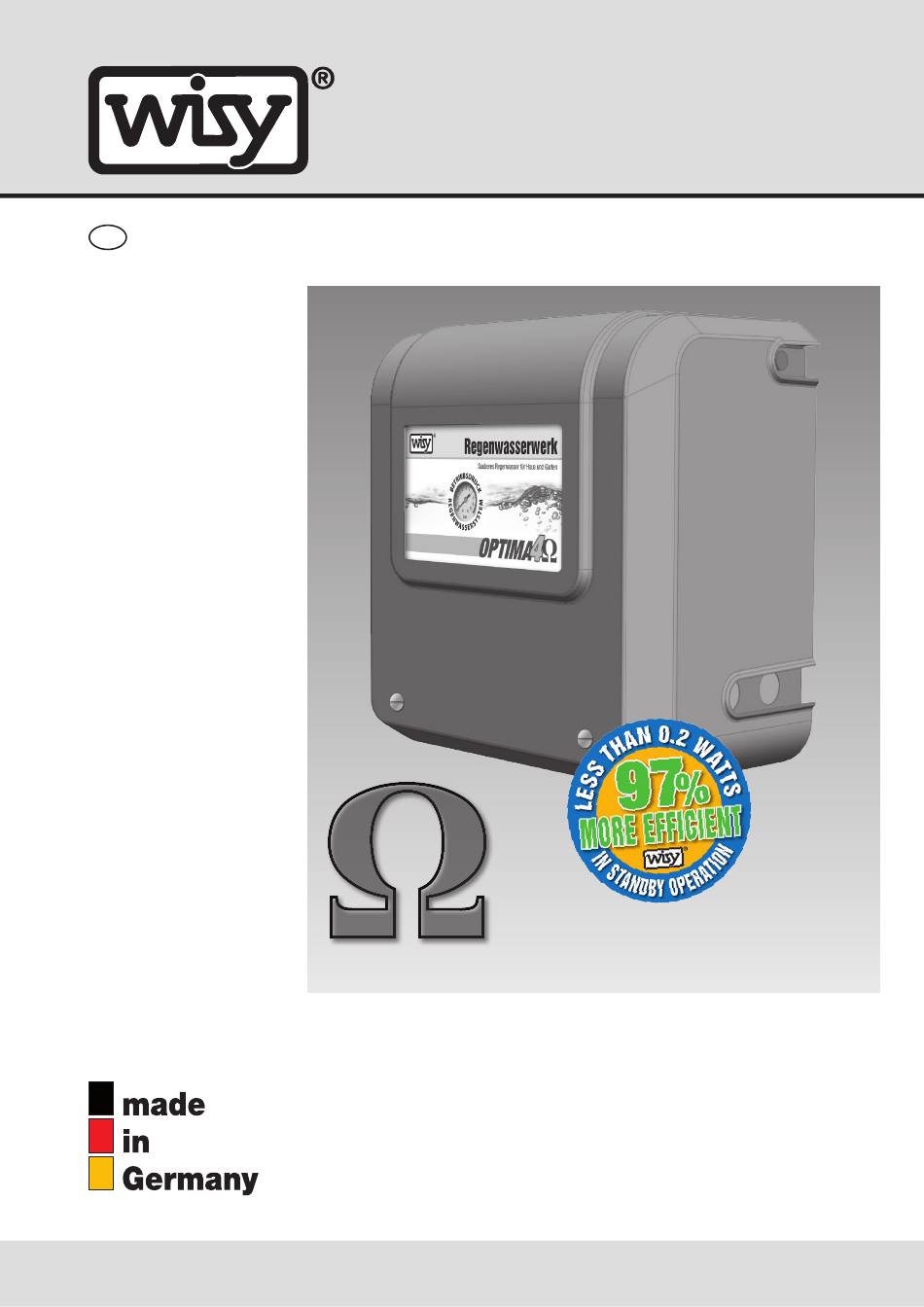

● Operating
instructions for
the Optima
rainwater unit
● please read through
these instructions
carefully before
you attempt to
install and use the
rainwater unit!
● 3- or 4-stage
self-priming
centrifugal pump
● Operates fully
automatically to
supply household
appliances on
demand
● automatic mains
water top-up
with integral
9-litre top-up tank
● Energy efficient
technology, standby
usage less than 0.2 W
Ω Ω
O PTIMA
WiSY
Rainwater Harvesting
Rainwater Unit
InstallatIon InstructIons
Original
Optima
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wisy Optima
Summary of Contents for Wisy Optima
- Page 1 Original Rainwater Unit Optima InstallatIon InstructIons ● Operating instructions for the Optima rainwater unit ● please read through these instructions carefully before you attempt to install and use the rainwater unit! ● 3- or 4-stage self-priming centrifugal pump ● Operates fully automatically to Ω...
- Page 2 The WISY 4-stage rainwater cleansing principle in the single-family home Harvesting rainwater reduces mains water consumption by: 50 %! 30 % 30 % 13 % Laundry: Garden irrigation: 5 % Cleaning: 13 % Vortex fine filter (WFF) Inflow calming Floating...
- Page 3 At the same later reference. Follow the safety time, the OPTIMA checks the fill level of the storage tank and tops up the system instructions! with mains water when required.
- Page 4 Guide to components 1 Mains water connection (top-up) 2 Pumped rising main (submersible pump) 3 Pressurized outlet 4 Mains plug for complete system 5 Electrical connection (blue socket) for submersible pump 6 Emergency overflow drain connection (DN 70) 7 Operating pressure indicator (pressure gauge) 8 Normal-suction centrifugal pump 9 Schaltautomat ZETA 02...
- Page 5 / by a contractor appointed by the manufac- turer. If the power cable to the OPTIMA unit or the float switch is found to be dama- ged, it must be replaced by the manufacturer / by a contractor appointed by the manufacturer.
- Page 6 OPTIMA unit. Use a ¾” connecting hose with stainless steel sheath (acces- sory) to connect the mains water pipe to the mains inlet connector on the OPTIMA wall unit. The top-up flow rate is approximately 95 l/min with a mains pressure rating of 3 bar (= 300 kPa).
- Page 7 Note: If a „drip irrigation“ system (often computer-controlled) is to be connected as an appliance to the OPTIMA, a small expansion vessel (around 15 l capacity) must be installed downstream of the wall unit in the rainwater circuit. The expan- sion vessel used for this purpose must be of the „flow-through“...
- Page 8 Repairs All repair work must be carried out by the manufacturer or by contractors whohave been explicitly approved. Repairs, modifications to components or modifications to the OPTIMA installation carried out by unauthorized persons shall invalidate the guarantee! Materials Horizontal, multi-stage centrifugal pump ● Stainless steel 1.4301 (pump casing, casing cover)
- Page 9 Auffüllstutzen neu befüllen. Schraube zudrehen. RESET- Taste am Schaltautomaten drücken. Pumpe startet und schaltet bei max. Druck wie- der aus. OPTIMA ist wieder betriebsbereit b) The automatic switch does b) Netzstecker der OPTIMA not start the pumps. ziehen und wieder einste- cken.
- Page 10 Environmental guidance Disposal / recycling of transport packaging The OPTIMA is shipped in recyclable packaging. Please recycle it! Waste electrical and electronic equipment contains valuable materials which can be Disposal / recycling of reused / recycled. Do not dispose of an old unit as general (non-recyclable) old units household waste.
- Page 11 • Konformitätserklärung • Konformitätserklär product name Multimat type 205, type 407 rainwater units Optima 4, Optima 5, Optima Plus rainwater units klärung • Konformitätserklärung • Konformitätserklärung • Konfor Maxima type 205, type 407 rainwater units Sigma 3, Sigma 4 rainwater units nformitätserklärung •...
- Page 12 Replacement of the product under guarantee will not extend the original period of the guarantee. WISY shall meet its guarantee obligations for the OPTIMA rainwater unit If it can be demonstrated that the following conditions are fulfilled: Terms and conditions of the 1.
