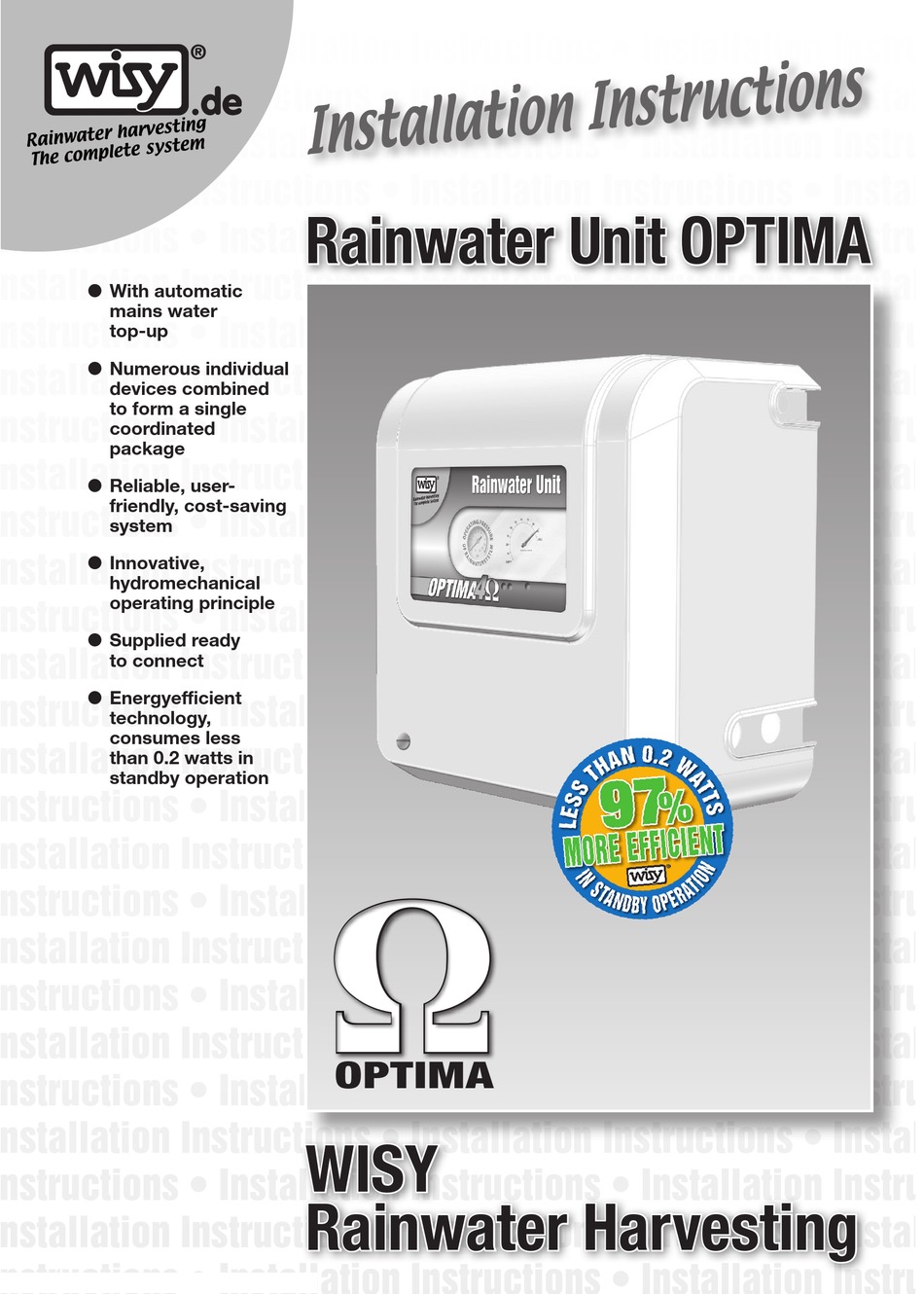

Rainwater Unit OptIma
Ω Ω
O PTIMA
WISY
Rainwater Harvesting
s t r u c t i o n s
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wisy Optima 4
Summary of Contents for Wisy Optima 4
- Page 1 Instructions • Installation Instructions • Instal O PTIMA nstructions • Installation Instructions • Installation Instru nstallation Instructions • Installation Instructions • Instal WISY nstructions • Installation Instructions • Installation Instru Rainwater Harvesting nstallation Instructions • Installation Instructions • Instal...
- Page 2 The WISY 4-stage rainwater cleansing principle in the single-family home Harvesting rainwater reduces mains water consumption by: 50 %! 30 % 30 % 13 % Laundry: Garden irrigation: 5 % Cleaning: 13 % Vortex fine filter (WFF) Inflow calming Floating...
- Page 3 Applications Read the operating instructions The OPTIMA rainwater unit by WISY is the control centre of the rainwater har- carefully before commencing vesting system. It is generally installed in a basement, cellar or utility room. It assembly and installation work...
- Page 4 Guide to components 1 Mains water connection (top-up) 2 Pumped rising main (submersible pump) 3 Pressurized outlet 4 Measuring lead for level indicator 5 Mains plug for complete system 6 Electrical connection (blue socket) for submersible pump 7 Emergency overflow drain connection (DN 70) 8 Adjusting screws for level indicator: a) Left-hand screw: Fill level adjustment b) Right-hand screw: Zero-point calibration...
- Page 5 4 and 5 bar (= 400 to 500 kPa). Please consult your installation specialist or contact WISY AG directly. It is also advisable to install an isolating ball valve (with dirt trap) between the mains water supply and the connecting hose to the wall unit ● Connect the emergency overflow (DN 70) of the mains water top-up tank us-...
- Page 6 (black) with brass weight and a connection kit for the measuring lead (small parts supplied in small plastic bag). Extension sets, each containing 10 m of PE measuring lead with brass hose coupling, can be ordered (WISY Item No. FA 9915.
- Page 7 Figure 1: Connection of yellow Description of fill level meter measuring lead to connector on Universal, pneumatic fill level meter with capsule-type element and integrated underside of OPTIMA wall unit electric pump for measuring fill levels in tanks. Steplessly adjustable to tank heights of between 100 cm and 250 cm (adjustable by the hexagon socket head screw).
- Page 8 ZETA 02 Programming Note: The “Reset” button on the Zeta 02 serves two functions, if pressed for less than 1 sec. it will go into reset mode, pump starts running. If pressed for longer it will go into one of the programming modes below Programming Run-on-time.
- Page 9 The OPTIMA system developed by WISY essentially operates with two pressure pumps: The submersible pump (or „loading pump“) of the OPTIMA system is installed in the storage tank. It is equipped with a fine suction filter and a float switch.
-
Page 10: General Safety Instructions
A 230 V 1AC (50 Hz) supply voltage is required. Failure to adhere to these instructions and/or unauthorized interference with the OPTIMA shall exempt WISY AG from any liability for any personal injuries, pro- perty damage and/or damage to individual components of the OPTIMA system. -
Page 11: Technical Data
Technical data The OPTIMA complies with the following OPTIMA 4 bar OPTIMA 5 bar technical regulations and standards: Power consumption DIN EN 1717 (formerly DIN 1988/4 Mains - horizontal centrifugal pump 660 W (2 HM 4) 850 W (2 HM 5) water top-up via an „open outlet“), Part 1 of... -
Page 12: Troubleshooting Guide
Troubleshooting guide Type of fault Cause Remedy OPTIMA is not supplying a) The storage tank is empty a) Absperrventil am TW-An- water to the appliance(s) and the mains water con- schluß zur OPTIMA öffnen. nection is closed (air suction, Haube abziehen und fest dry run protection is active). - Page 13 Type of fault Cause Remedy The indicated fill level a) Basic setting error. a) Refer to section Assembly/ does not match the actu- Commissioning in Operating al fill level in the storage Instructions. tank. b) Measuring lead is defective b) Contact customer service of / not leak-tight your installation company.
- Page 14 Replacement of the product under guarantee will not extend the original period of the guarantee. WISY shall meet its guarantee obligations for the OPTIMA rainwater unit If it can be demonstrated that the following conditions are fulfilled: Terms and conditions of the 1.
-
Page 15: Declaration Of Conformity
• Konformitätserklärung • Konformitätserklär Product name Multimat type 205, type 407 rainwater units Optima 4, Optima 5, Optima Plus rainwater units klärung • Konformitätserklärung • Konformitätserklärung • Konfor Maxima type 205, type 407 rainwater units Sigma 3, Sigma 4 rainwater units nformitätserklärung •... - Page 16 D-63699 Kefenrod and all our products, please ion Instructions • Installation Instructions • Installation In Telephone (++49) 60 54 - 91 21-0 visit: www.wisy.de Telefax (++49) 60 54 - 91 21-29 ons • Installation Instructions • Installation Instructions • E-Mail info@wisy.de Internet www.wisy.de...
