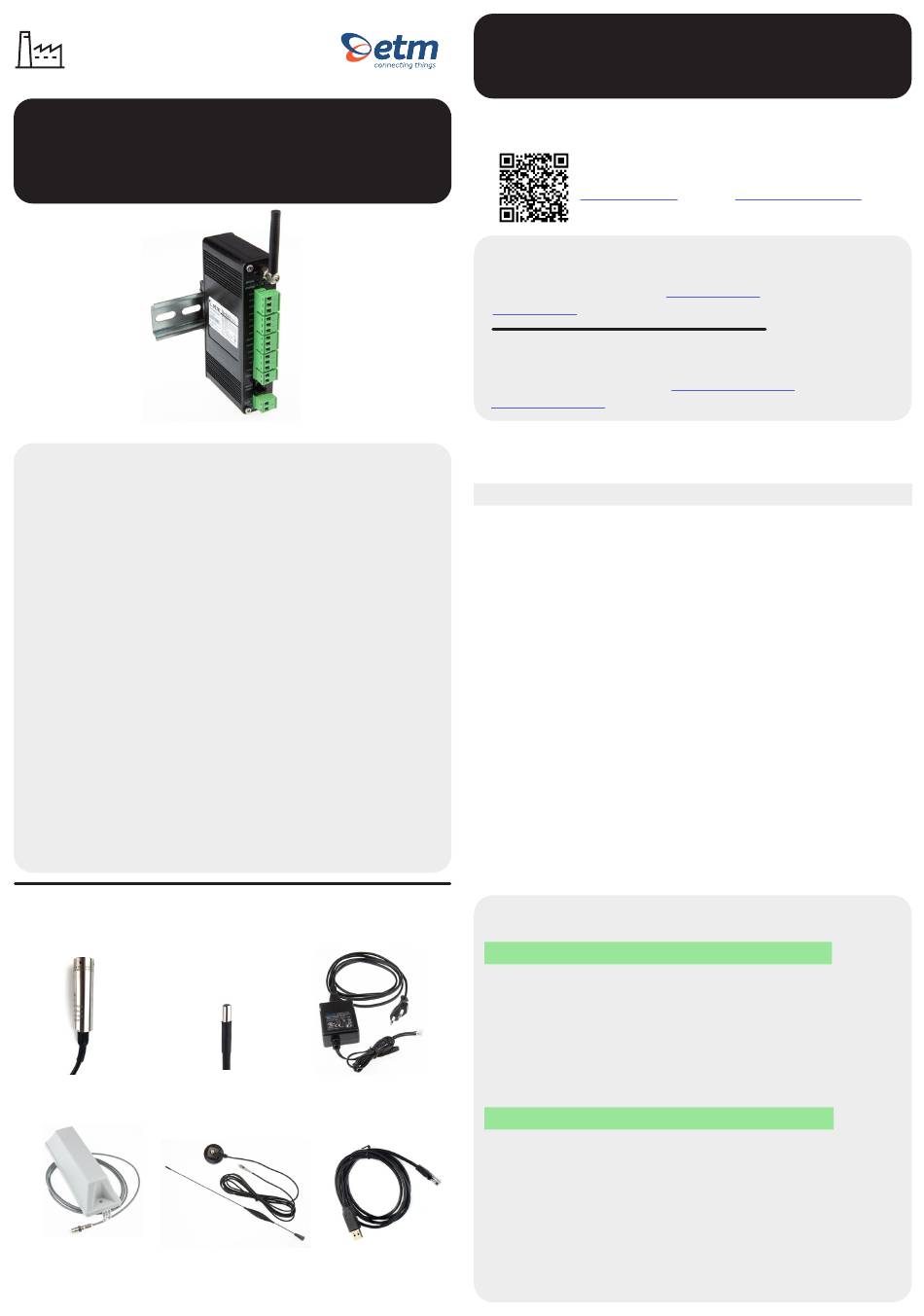

ETM DeltaBlack 71614 Quick Start Manual

DeltaBlack
INDUSTRIAL IOT EDGE SOLUTION
Quick Start Guide
INTRODUCTION
DeltaBlack is an easy to use Cellular 4G/3G/2G remote
monitoring and logging solution for use in heavy duty industrial applications.
Common applications include:
• Pump, fan, generator and motor
• Refrigeration and freezer systems
• Metering, HVAC, indoor climate
FEATURES
• Integrated 7-channel data logger including one relay output
• DIN-rail mounted including wall mount bracket
• Integrated 2G/3G/4G world wide wireless modem
• Customized SMS alerts
• LED indication for cellular signal quality and communication status
• Pre-configured for the most common sensor types
• Easy access to logged measurements via ETM's IoT Cloud Dashboard (EWO)
• Easy integration to PLC, SCADA and telemetry systems
ACCESSORIES
Temperature/Humidity
Pressure Sensor
Screw mount antenna Magnetic base antenna
• Fire panels and intruder alarms
• Data centre monitoring
• Tank measurements
Power Supply
Sensor
USB to RJ45
Adapter
Welcome to your ETM Product
Get started: This guide helps with initial product setup. Need more? Find
additional product information by simply scanning the QR code.
Support: ETM offers multiple support options to help you
get the most out of your product. You can go onto
www.etmiot.com
If urgent, please call us using the numbers below.
ETM Mätteknik AB (HQ)
Ekbacksvägen 32, 168 69, Bromma, Sweden
Tel: +46 (0)8 25 28 75 E-mail:
www.etmiot.se
ETM Pacific Pty Ltd (APAC)
Suite 6, 273 Alfred Street, North Sydney NSW 2060, Australia
Tel: +61 (0)2 9956 7377 E-mail:
www.etmiot.com.au
PIN DESCRIPTION
Terminal 71614 (Digital)
CH1 DI, Pulse
CH2 DI, Pulse, AI 0-2.5V
CH3 DI, Pulse, AI 0-2.5V
CH4 DI, Pulse, AI 0-2.5V
CH5 DI, AI 0-2.5V
CH6 DI, AI 0-2.5V
CH7 DI, AI 0-2.5V
SGND
SGND
Relay
Sensor Feed
RS232 Communication with computer
EIA561
V+ In
V- In
LED INDICATOR
Signal strength LEDs
Flashing
1 On
Off
2 On
Off
3 On
Off
Status LEDs
Slow Flash
1 2x Flash 3s Pause
3x Flash 3s Pause
4x Flash 3s Pause
2 On
Off
On
3 Off
Rapid Flash
or e-mail support@etmiot.com
sales@etmiot.se
sales@etmiot.com.au
71615 (Analogue)
DI, Pulse
AI 4-20mA
AI 4-20mA
AI 4-20mA
DI, AI 0-2.5V
DI, AI 0-2.5V
AI 4-20mA
Signal Ground
Signal Ground
COM (Common)
NO (Normally Open)
NC (Normally Closed)
5V and 16V max 100mA
for configuration
(6-35VDC)
Power Supply
RSSI < -105dBm or No SIM detected
RSSI ≥ -105dBm (Poor signal)
Not registered to mobile network
RSSI ≥ -89dBm (Fair signal)
RSSI < -89dBm or not reg. to mobile network
RSSI ≥ -73dBm (Good signal)
RSSI < -73dBm or not reg. to mobile network
Searching for network connection
Active 2G network connection
Active 3G network connection
Active 4G network connection
Internet provider connection
No Internet provider connection
Recieving data (2s active)
No data transmittion occurring
Sending Data
