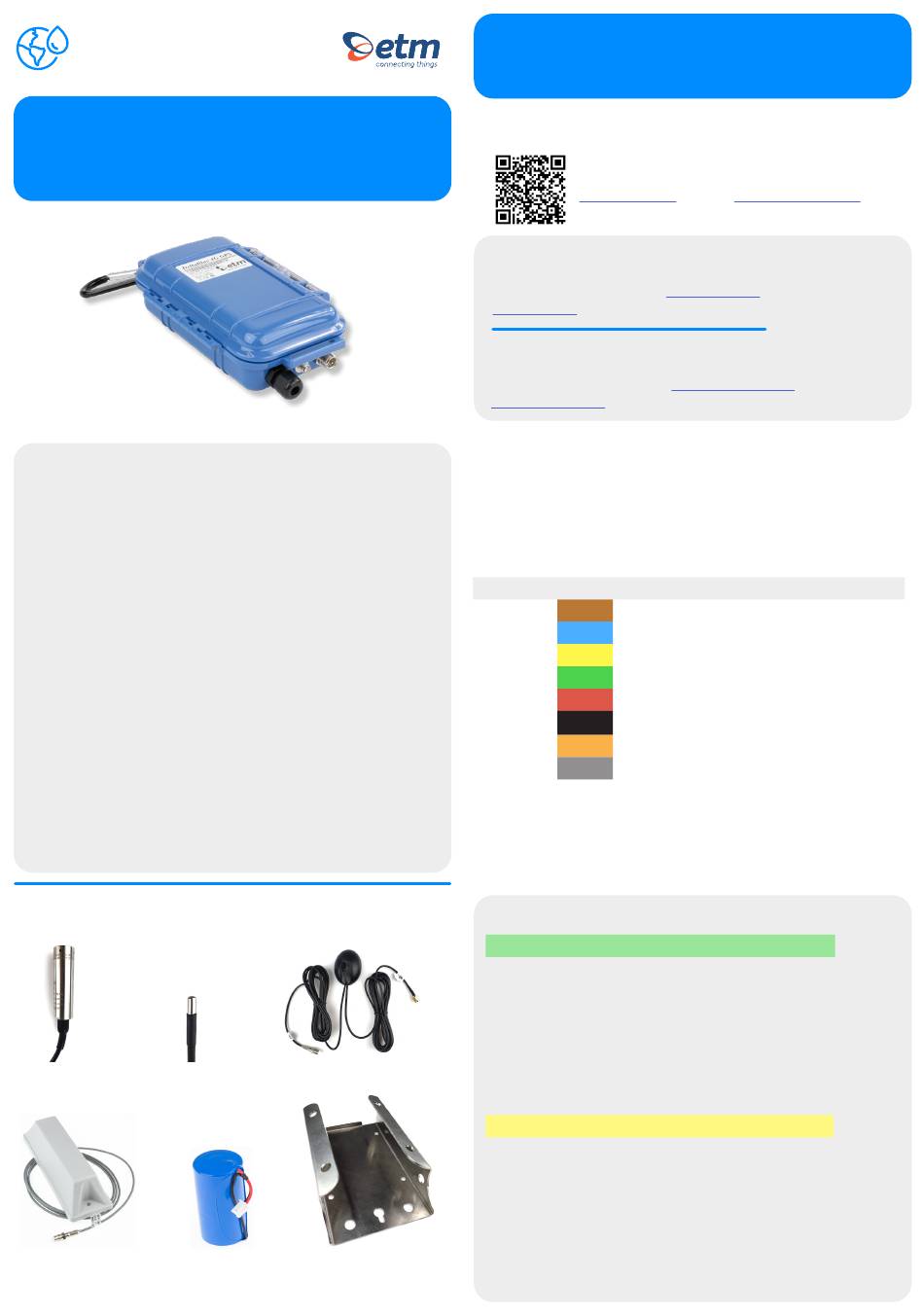

ETM DeltaBlue Quick Start Manual

DeltaBlue
OUTDOOR IOT EDGE SOLUTION
Quick Start Guide
INTRODUCTION
DeltaBlue is a battery-powered, rugged device used for measuring and
control in remote areas or installations without acces to mains power or
a fixed communication line.
Common applications include:
• Well and Pit monitoring
• Tank measurments
• Water and sewer treatment
FEATURES
• Up to 3 years battery life time* (Depending on settings)
• Integrated 7-channel data logger
• Integrated 2G/3G/4G wireless modem
• Integrated GPS, temperature, humidity and accelerometer
• Pre-configured for the most common sensor types with 3.6V, 5V & 16V power
feed.
• Easy access to logged measurements via ETM's IoT Cloud Dashboard (EWO)
• Easy integration to SCADA and telemetry systems
ACCESSORIES
Pressure Sensor Temperature/Humidity
Sensor
Screw mount antenna
Replacement battery
• Agriculture applications
• Remote alarms
• Lake water level monitoring
GPS
Connector
External Antenna
Stainless steel
mounting plate
Welcome to your ETM Product
Get started: This guide helps with initial product setup. Need more? Find
additional product information by simply scanning the QR code.
ETM Mätteknik AB (HQ)
Ekbacksvägen 32, 168 69, Bromma, Sweden
Tel: +46 (0)8 25 28 75
www.etmiot.se
ETM Pacific Pty Ltd (APAC)
Suite 6, 273 Alfred Street, North Sydney NSW 2060, Australia
Tel: +61 (0)2 9956 7377
www.etmiot.com.au
PIN DESCRIPTION
Channel Color
1 IO Brown
2 IO Blue
3 IO Yellow
4 IO Green
5 IO Red
6 IO Black
7 Feed Orange
8 GND Grey
LED INDICATOR
Green status LEDs
Slow Flash
1 2x Flash 3s Pause
Network 3x Flash 3s Pause
4x Flash 3s Pause
GSM
Connector
2 On
IP status Off
On
3 Off
Data Com Rapid Flash
Yellow signal strength LEDs
Flashing
1 On
Poor Off
Flashing
2 On
Fair Off
Flashing
3 On
Good Off
Support: ETM offers multiple support options to help you
get the most out of your product. You can go onto
www.etmiot.com or e-mail support@etmiot.com
If urgent, please call us using the numbers below.
E-mail: sales@etmiot.se
E-mail: sales@etmiot.com.au
Dip Switch OFF
DI, Pulse
DI, AI 0-2.5V
DI, AI 0-2.5V
DI, AI 0-2.5V
DI, AI 0-2.5V
AI 0-5VDC
1. 5V Out 2. 16V Out
Signal Ground
Searching for network connection
Active 2G network connection
Active 3G network connection
Active 4G network connection
Internet provider connection
No Internet provider connection
Recieving data (2s active)
No data transmittion occurring
Sending Data
RSSI < -105dBm or No SIM detected
RSSI ≥ -105dBm (Poor signal)
Not registered to mobile network
No SIM detected
RSSI ≥ -89dBm (Fair signal)
RSSI < -89dBm or not reg. to mobile network
No SIM detected
RSSI ≥ -73dBm (Good signal)
RSSI < -73dBm or not reg. to mobile network
Dip Switch ON
DI, Pulse Strong Pullup
AI 4-20mA
AI 4-20mA
AI 4-20mA
AI 4-20mA
AI 0-10VDC
4. 3.6V Out (Battery)
