Summary of Contents for Deltec E-Flow24V

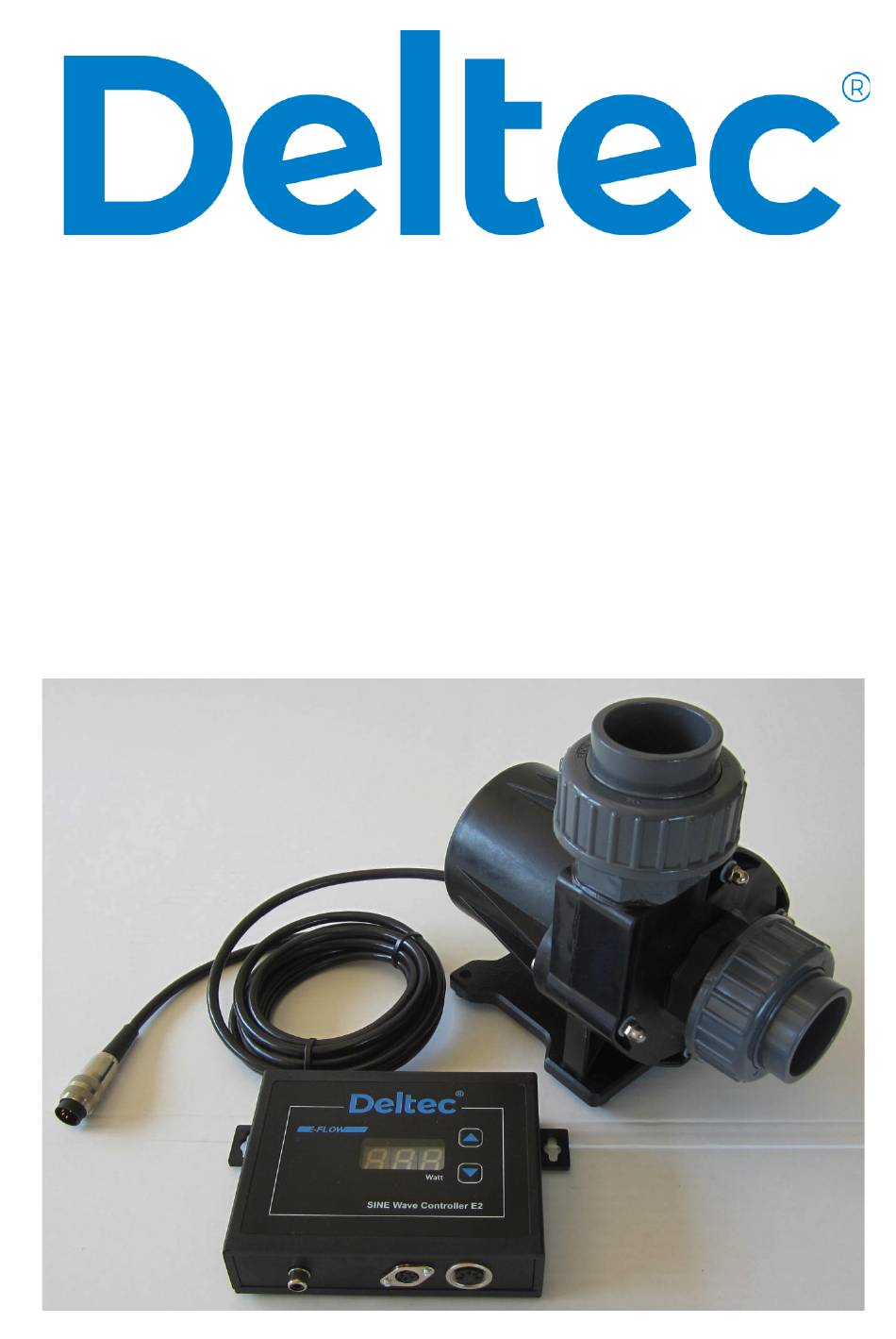

- Page 1 E-Flow Pumps Operating Instructions...
- Page 2 IMPORTNT SAFETY INSTRUCTIONS WARNING To guard against injury, basic safety precautions should be observed, including the following. 1) READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2) DANGER – To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment.
-
Page 3: Important Safety Instructions

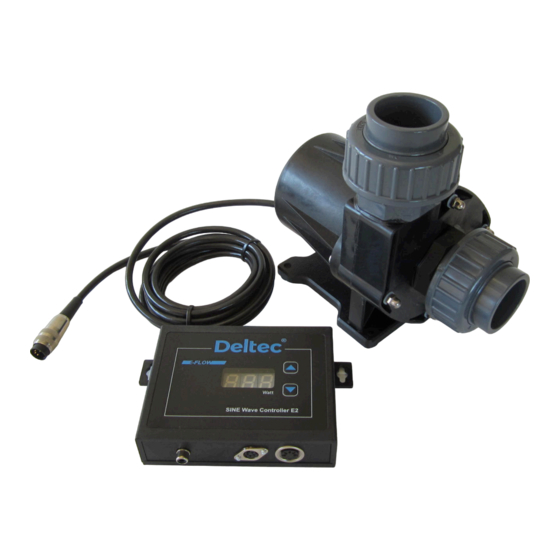

E-FLOW PUMPS Deltec E-Flow pumps are brushless motor, true sine wave 24V DC pumps. They come with a separate controller. The power consumption and performance can be selected with the up/down buttons located on the face of the controller. The pump itself can be installed either dry outside the sump or submersed inside the sump or aquarium. -
Page 4: Installation Of The Controller
- Never put your fingers into the pump’s suction or pressure side with the pump connected to mains electricity. - When using flexible hoses make sure that they are suitable for the pumps performance and do not leach out dangerous substances into the water. - When using non return valves ensure proper function, otherwise there is great danger of the pumps running dry. -
Page 5: Controller Panel
Controller Panel 1. Connections of the Controller Left: 0-10V Middle: Power Supply Right: Pump 2. Display a) It shows the set wattage of the pump. b) It shows the faults of the pump with a code, see fault finding as follows. 3. -
Page 6: Technical Data
Technical Data Technische Daten E-Flow 10 E-Flow 12 E-Flow R3 10.300 11.800 Volumen max. 9.000 litre/h litre/h litre/h Water head max. 9,0 meters 8,5 meters 10,5 meters Power consumption max. 130 Watt 130 Watt 130 Watt Performance selection 13 Stages 13 Stages 13 Stages Voltage... - Page 7 E-Flow E-Flow...
- Page 8 Deltec GmbH Steller Straße 75 D-27755 Delmenhorst...
- Page 9 Deutschland / Germany www.deltec-aquaristic.com Deltec GmbH...
