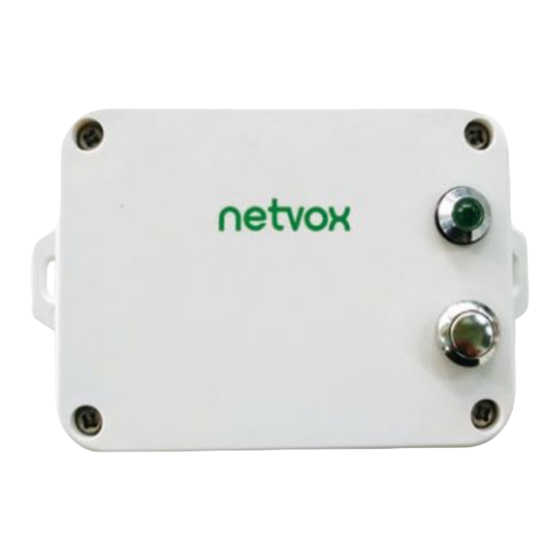

Model: R718MBC
Wireless Activity Timer
Wireless Activity Timer
R718MBC
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718MBC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R718MBC

Summary of Contents for netvox R718MBC

  • Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ............................2 2. Appearance ............................3 3. Main Features ........................... 3 4. Set up Instruction ..........................4 5. Data Report ............................5 5.1 Example of Report Data ......................6 5.2 Example of Config Report Time ....................7 5.3 Example of Config R718MBType .....................

  • Page 3: Introduction

    1. Introduction The R718MBC series equipment is a vibration alarm device for Netvox ClassA type equipment based on the LoRaWAN open protocol. It can count time of the movement or vibration duration of the equipment and is compatible with the LoRaWAN protocol.

  • Page 4: Appearance

     Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne  Low power consumption and long battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert batteries. (Users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes for 20 times. Power off Remove Batteries.

  • Page 6: Data Report

    1. The device report interval will be programmed based on the default firmware which may vary. 2. The interval between two reports must be the minimum time. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data.

  • Page 7: Example Of Report Data

    Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)

  • Page 8: Example Of Config Report Time

    MaxTime BatteryChange Reserved 0x01 ReportReq (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) (4Bytes,Fixed 0x00) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes,Fixed 0x00) R718MBC 0x2C ReadConfig Reserved 0x02 ReportReq (9Bytes,Fixed 0x00) ReadConfig MinTime MaxTime BatteryChange Reserved 0x82 ReportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v)

  • Page 9: Example Of Config Active Threshold

    SetActive Threshold Deactivetime Reserved 0x05 ThresholdReq (2Bytes) (1Byte,Unit:1s) (6Bytes,Fixed 0x00) SetActive Status Reserved 0x85 ThresholdRsp (0x00_success) (8Bytes,Fixed 0x00) R718MBC 0x2C GetActive Reserved 0x06 ThresholdReq (9Bytes,Fixed 0x00) GetActive Threshold Deactivetime Reserved 0x86 ThresholdRsp (2Bytes) (1Byte,Unit:1s) (6Bytes,Fixed 0x00) (5) Assuming the threshold is 10m/s², the value that needs to be set is 10/9.8/0.0625=16.32, the last value is 16.32 which needs to be taken an integer, and the configuration is 16.

  • Page 10: Information About Battery Passivation

    The device returns: 862C00100A000000000000 (current device configuration parameters) 6. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 11: Relevant Products

    Detect the movement or vibration of the device and triggers an alarm. R718MBB Counts the number of movements or vibrations of the device. R718MBC Counts the movement or vibration duration of the device. 8. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively.

This manual is also suitable for:
