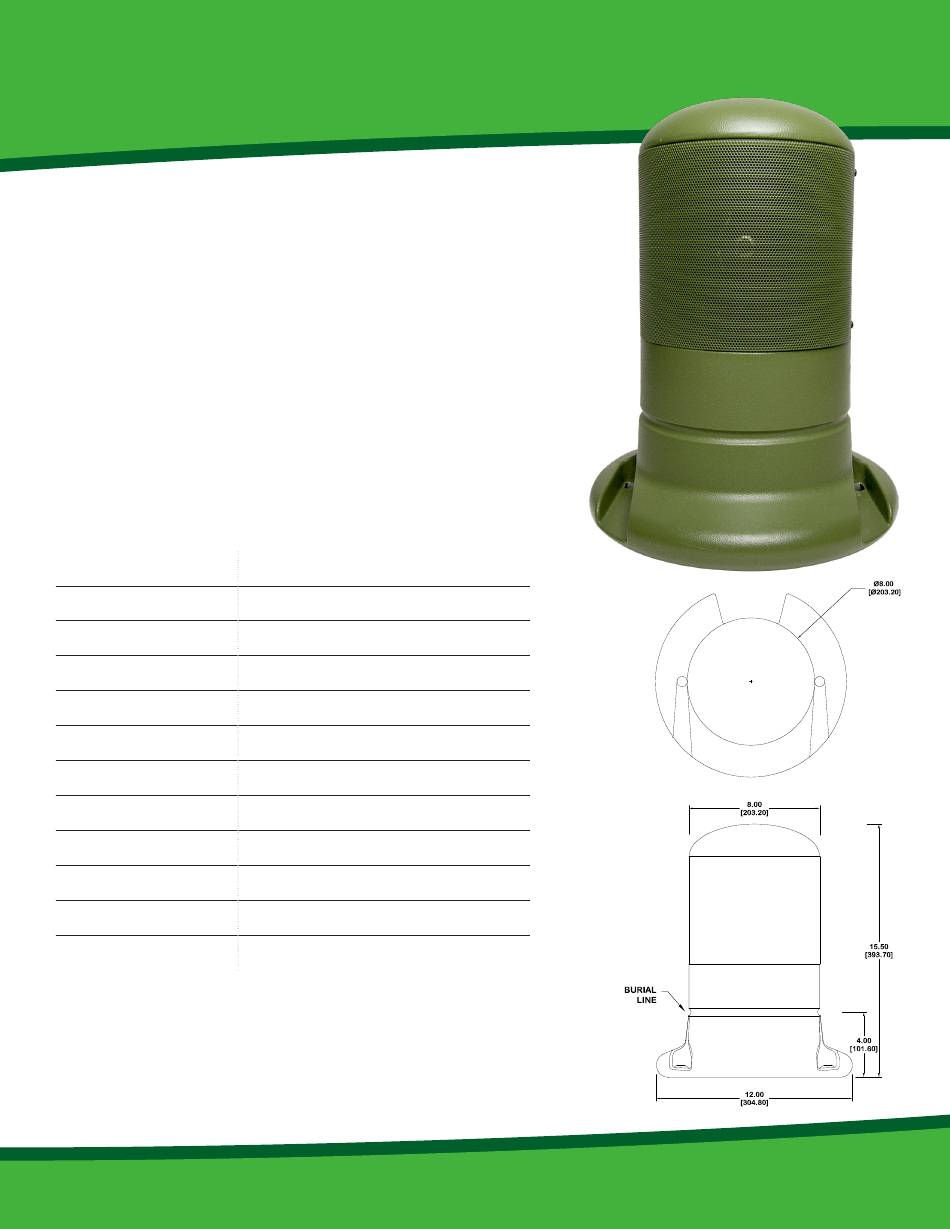

Soundscape ATS-Bollard Installation Instructions

SoundScape

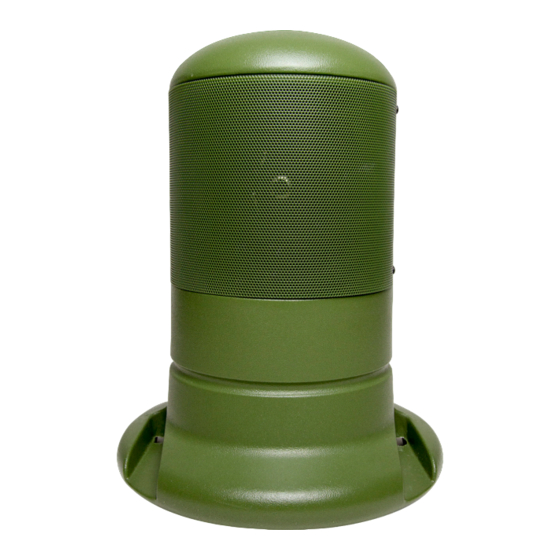

P R O D U C T D E S C R I P T I O N
These rugged outdoor speakers are specifically designed for
Foreground Commercial applications. This solution offers High
Fidelity, Higher loudness and smooth coverage wherever hidden
audio is required. The direct coverage sound radiates from two
coaxial drivers that provide sound in a complete circle, creating a
360° audio field with minimal dead spots.
Best installation method is to place the speakers 5-20 Ft back from
walkways 20-30 ft spacing in shrubbery and avoid lawn areas.
P R O D U C T S P E C S
Speaker
Enclosure
Connections
Direct Connection
70V Amplifier Connection
100V Amplifier Connection
Sound Power Rating
1 W 1 M Sensitivity @ 1 kHz
Maximum Rated Output @ 1 M
Frequency Response (-10)
Loudspeaker Warranty
Enclosure Warranty
P A R T N U M B E R S
ATS-Bollard Complete Loudspeaker Assembly
ATS-Bollard SPKR Replacement Speaker Pair without Transformer
ATS-Bollard –ENC – Enclosure – Complete with Grill
ATS-Bollard –Grill
SoundScape
®
www.soundscape.com | P.O. Box 1563, Windermere, FL, 32786 | Phone: (407) 876- ‐6884 | Fax: (407) 876- ‐1463
®
2 ea. 5.25" Inch, Coaxial
Light Green , Polyethylene, UV resistant
6 Ft – Direct Burial Cable Whip, Conduit Fitting
8 Ohm Via Jumper
8W,16W,32W Selectable
16W,32W, 64W Selectable
100 Watts
87 dB
104 dB
50Hz – 20kHz
3 Years in Normal use, Direct water Spray excluded,
avoid placement next to Sprinklers
10 Years– Excluding Grill
ATS-Bollard
