SoundScape
P R O D U C T D E S C R I P T I O N

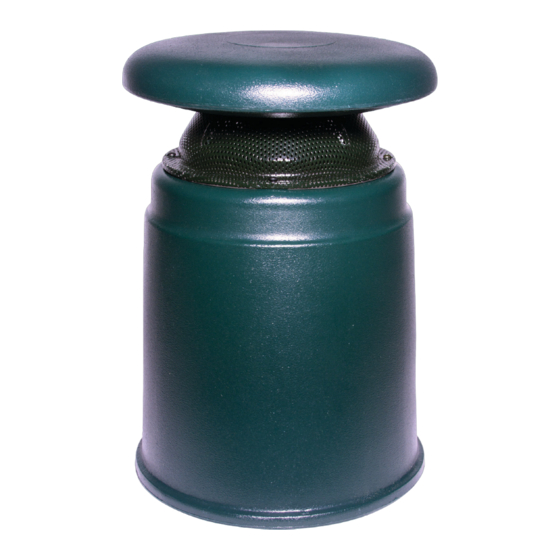

These Omni-directional outdoor speakers are designed for
applications where smooth coverage, hidden audio is required.
Rugged and built to be buried in any terrain, Mushroom® Speakers
provide a music source that blends into the landscape. The sound
radiates in a complete circle, creating a uniform 360° audio field
without loud or dead spots.
The ATS-360GT is a high-efficiency, high-reliability model suitable
for most low-powered residential and commercial music and paging
applications.
Best installation method is to place the speakers 5-10 ft back from
walkways 15-20 ft spacing in shrubbery and avoid lawn areas.
P R O D U C T S P E C S
Speaker
Enclosure
Connections
Direct Connection
70V Amplifier Connection
100V Amplifier Connection
Sound Power Rating
1 W 1 M Sensitivity @ 1 kHz
Maximum Rated Output @ 1 M
Frequency Response (-10)
Loudspeaker Warranty
Enclosure Warranty
P A R T N U M B E R S
ATS-360GT16 – Complete Loudspeaker Assembly
ATS-360-SPKR Replacement Speaker without transformer
ATS-360-SPKR T8- Legacy Replacement Speaker with 8W Transformer
ATS-360-SPKR T16 Replacement Speaker with 16W Transformer
ATS-360 G Lid –Green Lid
ATS-360G –ENC – Enclosure Bottom – Green
SoundScape
®
www.soundscape.com | P.O. Box 1563, Windermere, FL, 32786 | Phone: (407) 876- ‐6884 | Fax: (407) 876- ‐1463
®
8 Inch Full Range Speaker with integral Grill
Green , Polyethylene, UV resistant
10 Ft – Direct Burial Cable Whip, Conduit Fitting
8 Ohm Via Jumper
4W,8W,16W Selectable
8W,16W, 32W Selectable
50 Watts
85 dB
103 dB
45Hz – 9.5KHz
3 Years in Normal use, Direct water Spray excluded,
avoid placement next to Sprinklers
10 Years–We have enclosure products installed and
operational for over 30 years
ATS-360GT16
