Wedi Fundo Riolito Modular Assembly Instruction Manual

Modular shower system
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instruction | Instrucciones de montaje | Instructions d'assemblage
wedi Fundo Riolito Modular
Modular Shower System | Sistema de ducha modular | Système de douche modulaire

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fundo Riolito Modular and is the answer not in the manual?

Questions and answers

Related Manuals for Wedi Fundo Riolito Modular

Summary of Contents for Wedi Fundo Riolito Modular

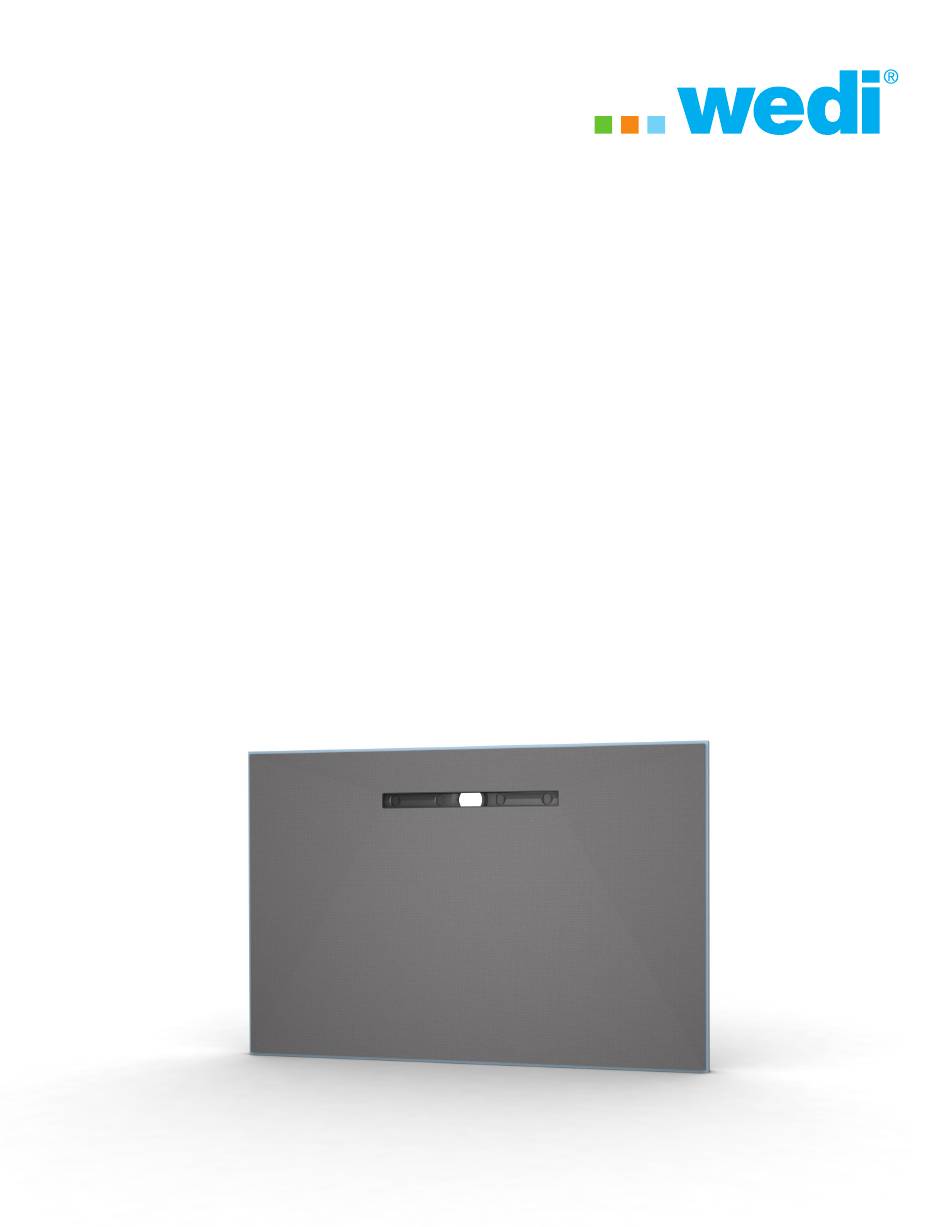

  • Page 1 Assembly Instruction | Instrucciones de montaje | Instructions d’assemblage wedi Fundo Riolito Modular Modular Shower System | Sistema de ducha modular | Système de douche modulaire...
  • Page 2 The single and one-directional slope allows for drain positioning close to a wall and is ideal for the use of large format tile without the need for miter cuts. Fundo Riolito Modular is commonly installed with a curb but can be placed in curbless designs where a recessed floor is available and accommodates the increased depth due to the one sided built up of the shower base thickness due to the one-directional slope.
  • Page 3  Mecanismo “ Click and Seal” para un montaje sencillo y seguro.  El drenaje wedi Fundo Click and Seal™ permite la conexión con una tubería de desagüe de piso que esté cortada al ras o a 1/8 pulg. por encima de la superficie del contrapiso, y puede conectarse con seguridad a tuberías ligeramente inclinadas (un ángulo de hasta 5 grados).
  • Page 4 Elle est également idéale pour l’utilisation de carreaux de grand format sans avoir à effectuer de coupes d’onglet. Le Fundo Riolito Modular est généralement installé avec un seuil, mais il peut être placé dans des conceptions sans seuil lorsqu’un sol en retrait est disponible et qu’il s’adapte à...
  • Page 5  wedi shower bases can be cut to size using a circular saw. The Z notch 3) wedi mesh tape is installed over these seams and covered with joint sealant channel must be remade and cleaned from sawdust or other possible conta- 1”...
  • Page 6 Fundo Riolito Modular  Before Installation | Antes de instalar | Avant l’installation Prepare la instalación / sitio de instalación Préparer l’installation / le site d’installation  Coloque bloques de 2 x 4 pulg. en la placa base entre y al ras de la parte ...
  • Page 7 Use with nominal schedule 40 2 in. PVC,ABS or Cast iron waste pipe. Use special wedi parts for installation to copper pipe. Utilice con la tubería de desagüe de PVC, ABS o hierro fundido de 40 2 pulg. (cédula nominal). Utilice piezas wedi especiales para la instalación en un tubo de cobre.
  • Page 8 Las bases de ducha Fundo wedi pueden cortarse y/o extenderse El wedi Fundo Riolito Modular puede unirse con extensiones inclinadas si las ranuras prefabricadas en la base modular y/o la extensión se ajustan en el campo. La pendiente unidireccional del wedi Fundo Riolito Modular permite agregar paneles de extensión inclinados solo si se colocan de manera que la pendiente continúe en una dirección.
  • Page 9 Fundo Riolito Modular  Assembly Overview | Descripción general del montaje | Présentation de l’assemblage A wedi shower base can be cut to size using a circular saw with standard car- bide blade. You can remake the 1/2 in. × 1/2 in. perimeter channel by cutting through the cement surface using the circular saw set to cut 1/2 in.
  • Page 10 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Cut the 2 inch waste pipe even and flush with the subfloor surface. Make sure that the cut out fits to the Fundo panel drain.
  • Page 11 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Next, install the Fundo Click and Seal™ drain unit. Drain components are delivered inserted inside the Drain Body. Please take the parts out and use step by step following our manual here.
  • Page 12 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Once inserted, turn the Drain Body clockwise until its plastic flap clicks in position in its final resting position.
  • Page 13 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Dry fit the line module to ensure it can be installed to the floor waste pipe (now in the center of the module‘s Fundo Click and Seal drain.) and so it covers the floor area and squares up tightly with the wall framing.
  • Page 14 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Once cut, you want to dry fit the extension module and then remake the 1/2 in.
  • Page 15 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Trowel the thinset on the rear side of the Fundo again using a 1/4 in. × 1/4 in. notched trowel. Flat trowel the thinset over the entire product‘s cement surface, then comb through thinset bed creating channels pointing in same direction as applied on subfloor.
  • Page 16 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Apply wedi provided safe lubricant to the Rubber Sealing Gasket and insert the Rubber Sealing Gasket between the wedi Drain Unit‘s interior and the...
  • Page 17 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Insert the Locking Nut with notched side up into the threaded part of the Drain Unit opening and screw down until Locking Nut top is flush with top edge of Drain Unit‘s threaded part.
  • Page 18 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Clean the subfloor with a moist sponge to remove dust and dirt, and apply a skimcoat of a suitable, modified tile adhesive/ thinset ( ANSI 118.4 or better),...
  • Page 19 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Clean the connection channel of the line module from any thinset or dust and apply a continuous 1/2 in. bead of wedi joint sealant in the channel along its entire length.
  • Page 20 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Place the Fundo Riolito extension module into the thinset bed and press firmly into resting position and ensuring full coverage of thinset mortar bet- ween line module and subfloor leaving no voids.
  • Page 21 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Clean the perimeter channels from dust or any other contaminants. Set up a continuous 1/2 in. bead of wedi Joint Sealant along the Riolito‘s channel on the outer perimeter and only in areas where you can immediately install a building panel into the fresh sealant.
  • Page 22 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Apply continuous 1/2 in. beads of sealant between all connections of panels and install with tightly butted seams.
  • Page 23 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Fasteners every 12 inches on either side of the niche, or a minimum of 1 fastener on each of the 4 corners, are set to create a flat transition to wall panels.
  • Page 24 Fundo Riolito Modular  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto A continuous 1/2 in. bead of sealant is set into the channel and along the vertical curb notch part.
  • Page 25 Fundo Riolito Modular  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton You can now insert the wedi Fundo Riolito Drain Cover. These stainless steel covers are available in different color finishes with PVD coatings, or as a na- tural polished stainless steel, or as a tileable cover.
  • Page 26 Joint Sealant over all seams should be at least 1 in. (25.4 mm) on either side y allanando sellador de juntas wedi sobre las uniones. El sellador de juntas wedi of the seam.
  • Page 27  Si el panel de construcción wedi se instala en esquinas de una estructura cuyo ángulo no es recto, una los bordes de los tableros al inglete para obtener superficie de adhesión. Para mayor seguridad, use cinta adhesiva además del sellador normal.
  • Page 28 Fundo Riolito Modular  Installation instructions wedi Fundo Drain Cover | Instrucciones de instalación de la tapa de drenaje wedi Fundo Drain Cover Fundo Riolito standard: High Grade Polished Stainless Steel a la superficie de la base Riolito (profundidad de enlosado 11 mm). Los Standard Version.
  • Page 29 Fundo Riolito Modular  Instructions d’installation de la barrette d’écoulement wedi Fundo For installing the linear channel covers please have a look at the installation instructions in the packaging. Para instalar las cubiertas de canal lineal, revise las instrucciones de instalación que contiene el embalaje.
  • Page 30 Corporation Tel. +1-847-357-9815 Fax. +1-847-357-9819 info@wedicorp.com www.wedicorp.com...
