Wedi Fundo Riolito Assembly Instruction Manual

Shower system with integrated linear drain
Hide thumbs Also See for Fundo Riolito:

Advertisement

Quick Links

Download this manual
Assembly Instruction | Instrucciones de montaje | Instructions d'assemblage
wedi Fundo Riolito
Shower System with integrated linear drain
Sistema de ducha con drenaje lineal integrado
Système de douche avec écoulement linéaire intégré

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fundo Riolito and is the answer not in the manual?

Questions and answers

Related Manuals for Wedi Fundo Riolito

Summary of Contents for Wedi Fundo Riolito

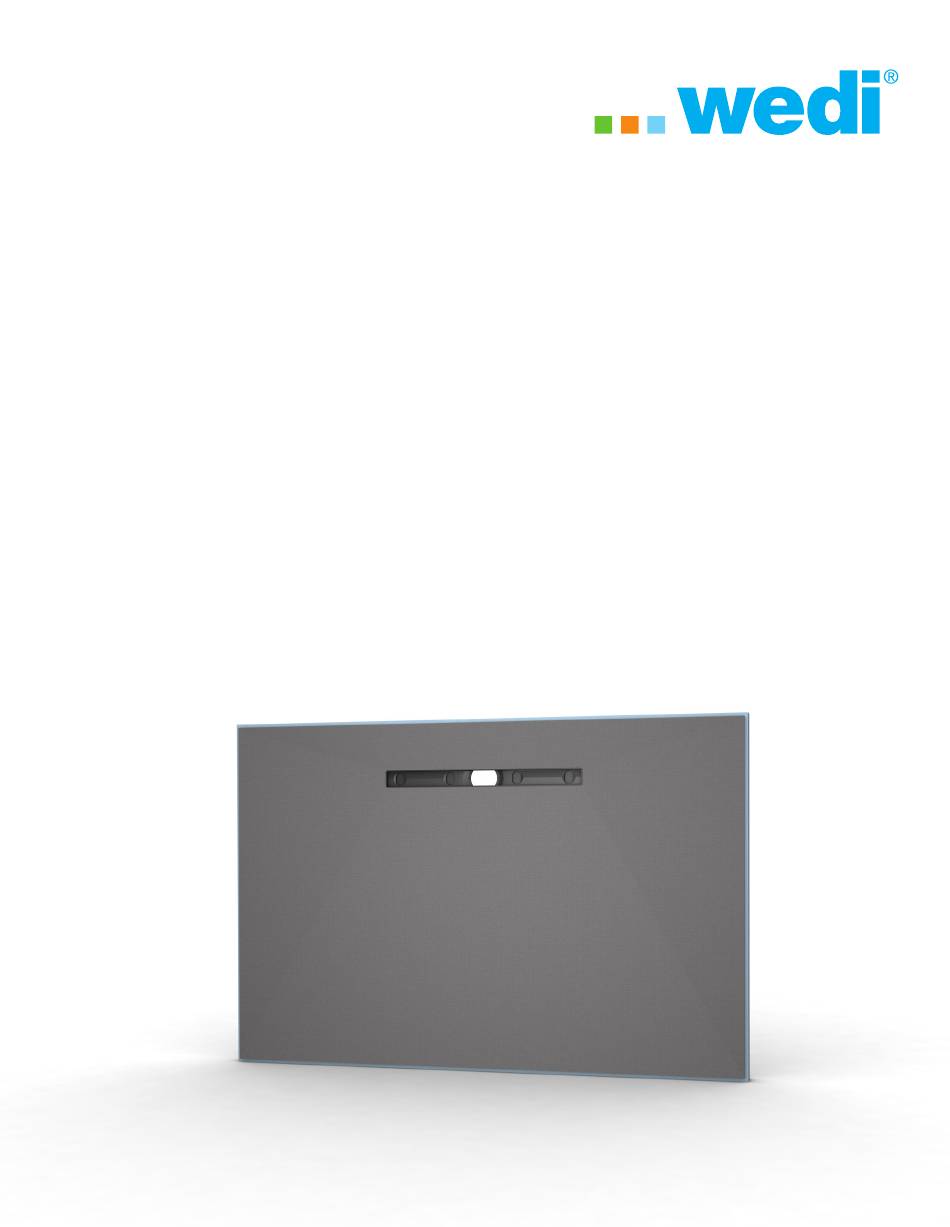

  • Page 1 Assembly Instruction | Instrucciones de montaje | Instructions d’assemblage wedi Fundo Riolito Shower System with integrated linear drain Sistema de ducha con drenaje lineal integrado Système de douche avec écoulement linéaire intégré...
  • Page 2  “wedi Fundo Click and Seal™” mechanism for simple and safe assembly.  wedi Fundo Click and Seal™ drain allows for a connection to a floor waste pipe that is easily cut flush with the floor, and it can connect safely even where the floor waste pipe is slightly angled (up to 5 Degrees).
  • Page 3 1/4 de pulg. hasta las de 1 pulg.  Siempre y cuando la plomería de la tubería de desagüe sea abierta, el caudal del drenaje y la tapa de drenaje wedi Fundo Riolito supera los 14 galones por minuto.
  • Page 4 Le receveur de douche présente une surface résistante prépentée, qui peut être carrelée immédiatement, en carrelage mosaïque ou en carreaux de grand format. Le wedi Fundo Riolito est conçu avec une pente à 4 pans qui permet à la base de maintenir une épaisseur périmétrique plane malgré...
  • Page 5  wedi shower bases can be cut to size using a circular saw. The Z notch 3) wedi mesh tape is installed over these seams and covered with joint sealant channel must be remade and cleaned from sawdust or other possible conta- 1”...
  • Page 6 2) Le produit d’étanchéité wedi est appliqué sur ces joints de manière 3) La cinta de malla wedi se coloca sobre estas uniones y se cubre con topique et sur une largeur de 25.4 mm (1 po) des deux côtés du joint.
  • Page 7 Use with nominal schedule 40 2 in. PVC,ABS or Cast iron waste pipe. Use special wedi parts for installation to copper pipe. Utilice con la tubería de desagüe de PVC, ABS o hierro fundido de 40 2 pulg. (cédula nominal). Utilice piezas wedi especiales para la instalación en un tubo de cobre.
  • Page 8 Las bases de ducha Fundo wedi pueden cortarse y/o extenderse Las extensiones prefabricadas wedi ya están ranuradas. Se las puede unir con otras extensiones en un diseño de inglete, uniendo dos o más lados de una ducha que se extenderá. Realice conexiones de ranura in situ según sea necesario para las conexiones de inglete. Consulte el manual de wedi para obtener información sobre el uso de extensiones con pendiente.
  • Page 9 Fundo Riolito  Assembly Overview | Descripción general del montaje | Présentation de l’assemblage A wedi shower base can be cut to size using a circular saw with standard car- bide blade. You can remake the 1/2 in. × 1/2 in. perimeter channel by cutting through the cement surface using the circular saw set to cut 1/2 in.
  • Page 10 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Cut the 2 inch waste pipe even and flush with the subfloor surface. Make sure that the cut out fits to the Fundo panel drain.
  • Page 11 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Cut the Fundo base to fit between framed walls and so its wedi drain unit can connect with the floor waste pipe. Consider also the space needed by a curb or extension before cutting your wedi base.
  • Page 12 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Once cut, you want to dry fit the base and then remake the 1/2 in. × 1/2 in.
  • Page 13 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Insert the Drain Body snugly into the receiving mechanism of the Drain Unit on the underside of the Fundo base. Inserte el cuerpo del drenaje de forma adecuada en el mecanismo receptor de la unidad de drenaje ubicado en el lado inferior de la base Fundo.
  • Page 14 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto On the top side of the drain you can verify the drain unit has successfully connected when the single hash marks are centered between the double hash marks.
  • Page 15 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Trowel the thinset on the rear side of the Fundo again using a 1/4 in. × 1/4 in. notched trowel. Flat trowel the thinset over the entire product‘s cement surface, then comb through thinset bed creating channels pointing in same direction as applied on subfloor.
  • Page 16 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Apply wedi provided safe lubricant to the Rubber Sealing Gasket and insert the Rubber Sealing Gasket between the wedi Drain Unit‘s interior and the...
  • Page 17 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Insert the Locking Nut with notched side up into the threaded part of the Drain Unit opening and screw down until Locking Nut top is flush with top edge of Drain Unit‘s threaded part.
  • Page 18 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Clean the perimeter channels from dust or any other contaminants. Set up a continuous 1/2 in.
  • Page 19 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton Apply continuous 1/2 in. beads of sealant between all connections of panels and install with tightly butted seams. Excess sealant must be spread flat with a putty knife.
  • Page 20 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Fasteners every 12 inches on either side of the niche, or a minimum of 1 fastener on each of the 4 corners, are set to create a flat transition to wall panels.
  • Page 21 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton A continuous 1/2 in. bead of sealant is set into the channel and along the vertical curb notch part. 1/2 in. beads of wedi joint sealant are equally ap- plied on wall surfaces where the curb attaches.
  • Page 22 Fundo Riolito  Installation instructions wedi Fundo Shower Base onto wooden or concrete floors | Instalar la base de ducha wedi Fundo en pisos de madera o concreto Weight is applied for a minimum of 30 minutes on and against the curb (from outside) and another 1/2 in.
  • Page 23 Fundo Riolito  Installation du receveur de douche wedi Fundo sur des planchers en bois ou en béton The wedi Fundo Riolito Shower System is now ready for tiling as soon as the surface applied wedi joint sealant is dry to the touch.
  • Page 24 100 % sólidos. Se pueden instalar losetas grandes de juntas wedi debe cubrir todas las uniones al menos 1 in. (25 mm) en cada sobre las bases de ducha wedi Fundo. Puede que sea necesario hacer cortes lado de la unión.
  • Page 25  Si el panel de construcción wedi se instala en esquinas de una estructura cuyo ángulo no es recto, una los bordes de los tableros al inglete para obtener superficie de adhesión. Para mayor seguridad, use cinta adhesiva además del sellador normal.
  • Page 26 Fundo Riolito  Installation instructions wedi Fundo Riolito Drain Cover | Instrucciones de instalación de la tapa de drenaje wedi Fundo Riolito Drain Cover Fundo Riolito standard: High Grade Polished Stainless Steel a la superficie de la base Riolito (profundidad de enlosado 11 mm). Los Standard Version.
  • Page 27 Fundo Riolito  Instructions d’installation de la barrette d’écoulement wedi Fundo Riolito For installing the linear channel covers please have a look at the installation instructions in the packaging. Para instalar las cubiertas de canal lineal, revise las instrucciones de instalación que contiene el embalaje.
  • Page 28 Corporation Tel. +1-847-357-9815 Fax. +1-847-357-9819 info@wedicorp.com www.wedicorp.com...
